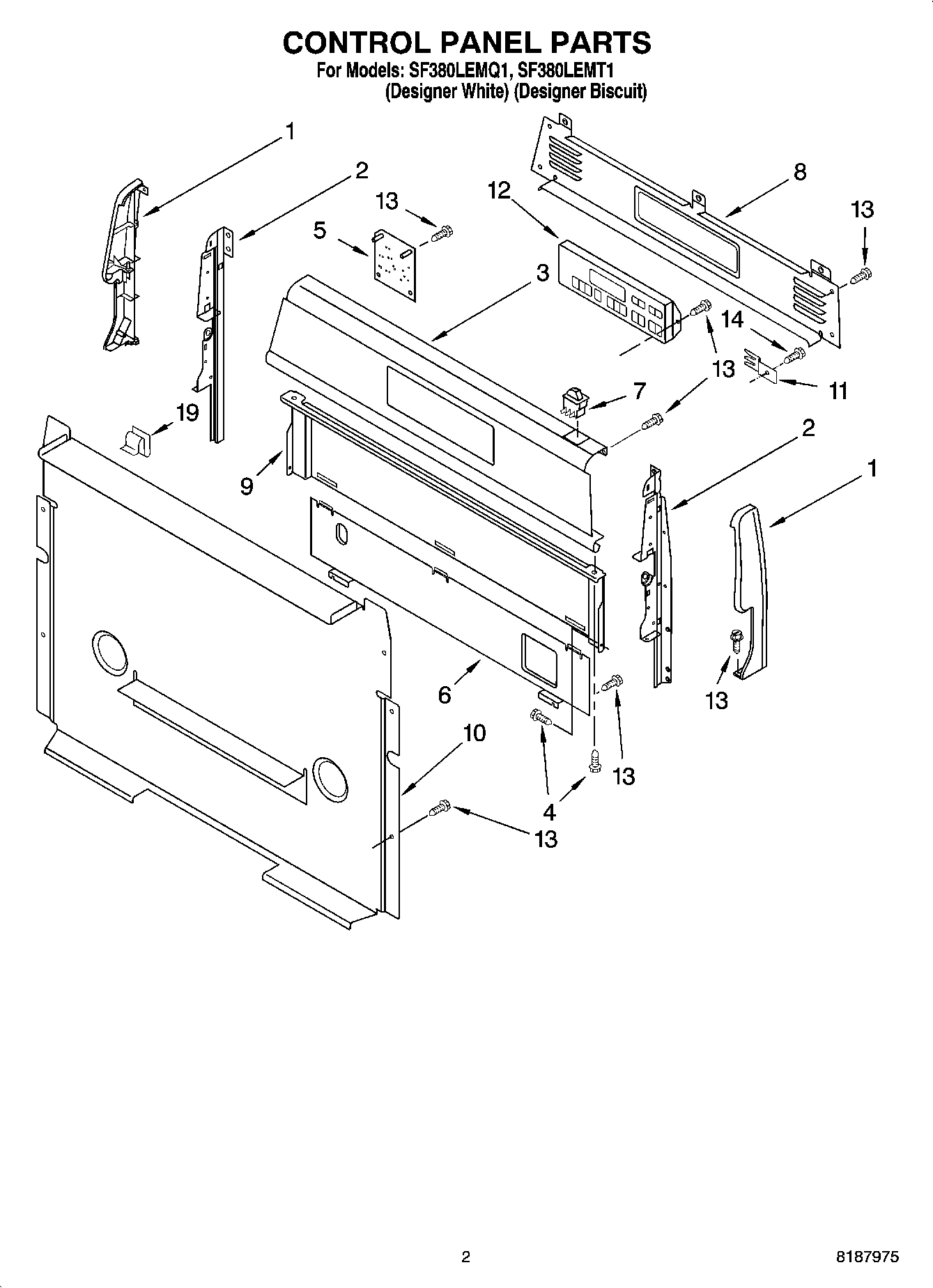

SF380LEMT1 02 – CONTROL PANEL PARTS

SF380LEMT1 02 – CONTROL PANEL PARTS

Written by

in

SF380LEMT1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Control (White)
3Panel, Backguard (Biscuit)
4Screw
5WPW10331686 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
7Switch, Rocker (Biscuit)
73149360 Whirlpool Light Switch
8Cover, Upper
9Shield, Heat
10Cover, Lower
118523412 Whirlpool Mounting Bracket
12Control, Range (White)
12Control, Range (Biscuit)
13SCREW
14WP3196557 Whirlpool Screw
19WP8273564 Whirlpool Clip
