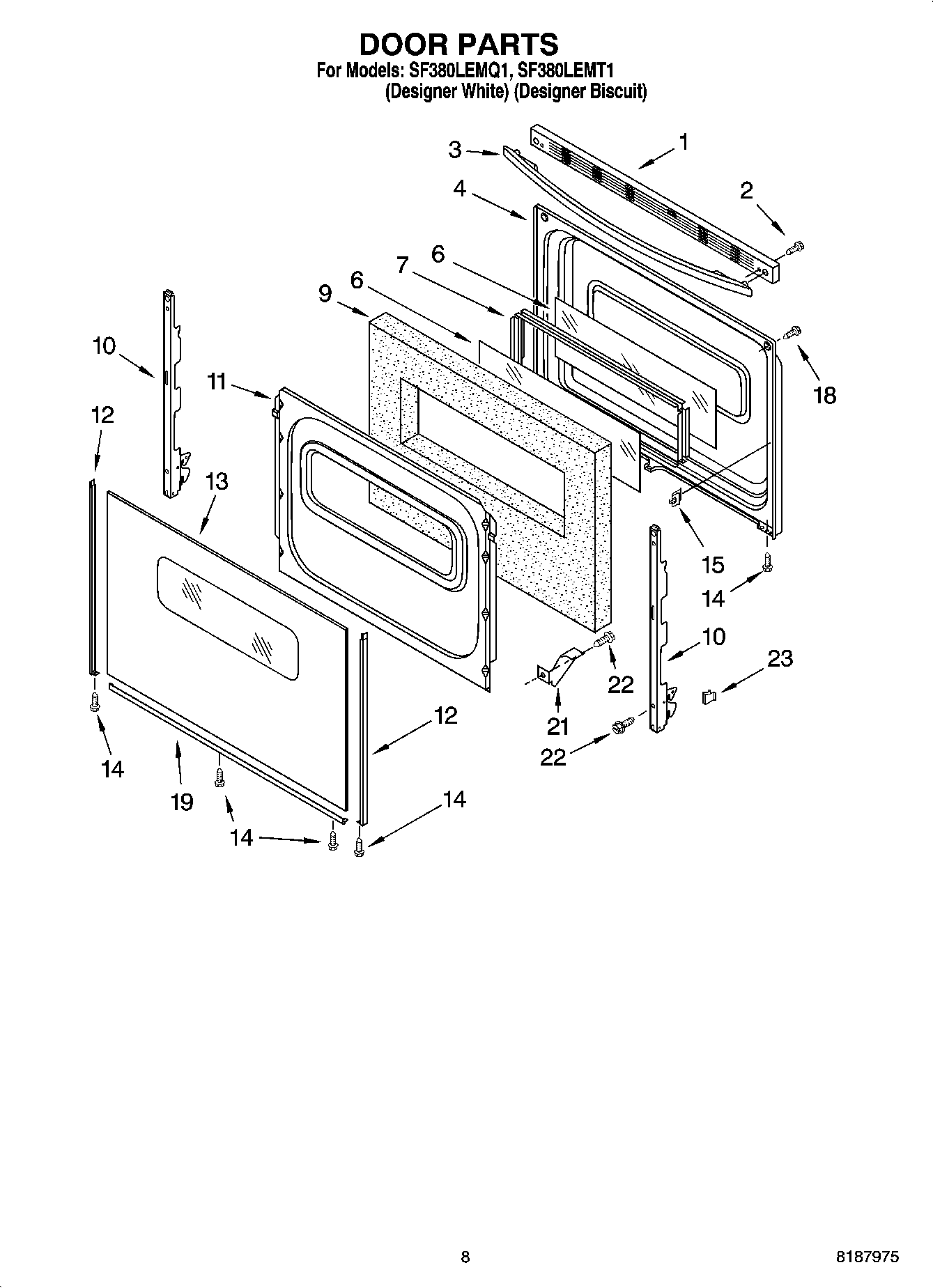

SF380LEMT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

SF380LEMT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Written by

in

SF380LEMT1 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI163910A
3196696 Whirlpool Clip
8212471 Whirlpool Oven Paint
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
WPL ARI163911A
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
Grease
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
WPL 8316781
WPL ARI163909A
WPL ARI163916A
WPL ARI163915A
WPL ARI163914A
WPL ARI163913A
WPL ARI163912A
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
3400964 Whirlpool Oven Clip
Wire (14 Ga. 150 c Orange)
285006 Whirlpool Spray
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
511873 Whirlpool Refrigerator Paint
4392901 Whirlpool Biscuit Spray Paint
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25` Roll (Red 14 Ga.)
350942 Whirlpool Spray Paint
814381 Whirlpool Pin
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL 799832
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Biscuit)
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10WP8053807 Whirlpool Oven Door Hinge
11W11539580 Whirlpool Retainer
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523167 Whirlpool Door Trim Assembly
13Glass, Outer Door (White)
13Glass, Outer Door (Biscuit)
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP8523175 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
23WP3196925 Whirlpool Clip Assembly
