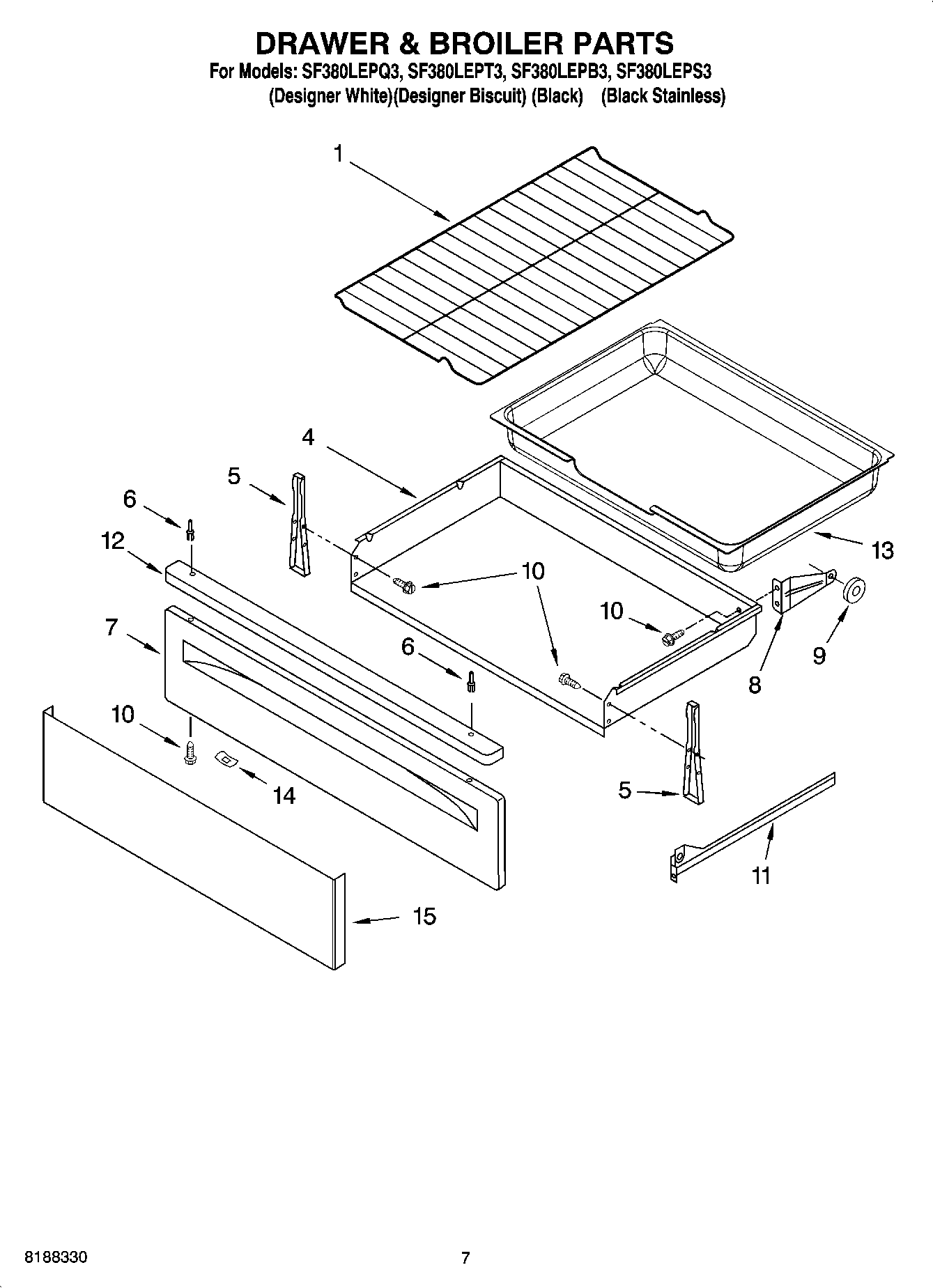

SF380LEPS3 05 – DRAWER & BROILER PARTS

SF380LEPS3 05 – DRAWER & BROILER PARTS

Written by

in

SF380LEPS3 05 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7W11230490 Whirlpool Drawer Panel
7PANEL, DRAWER FRONT (BISCUIT)
7W11230486 Whirlpool Drawer Panel
8Bracket, Roller
9814229 Whirlpool Primary Roller
10WP3400832 Whirlpool Screw
11Rail, Drawer (Right Hand)
11Rail, Drawer (Left Hand)
12Handle
13Liner, Drawer
14WP9781235 Whirlpool Clip
15Panel, Stnls & US
