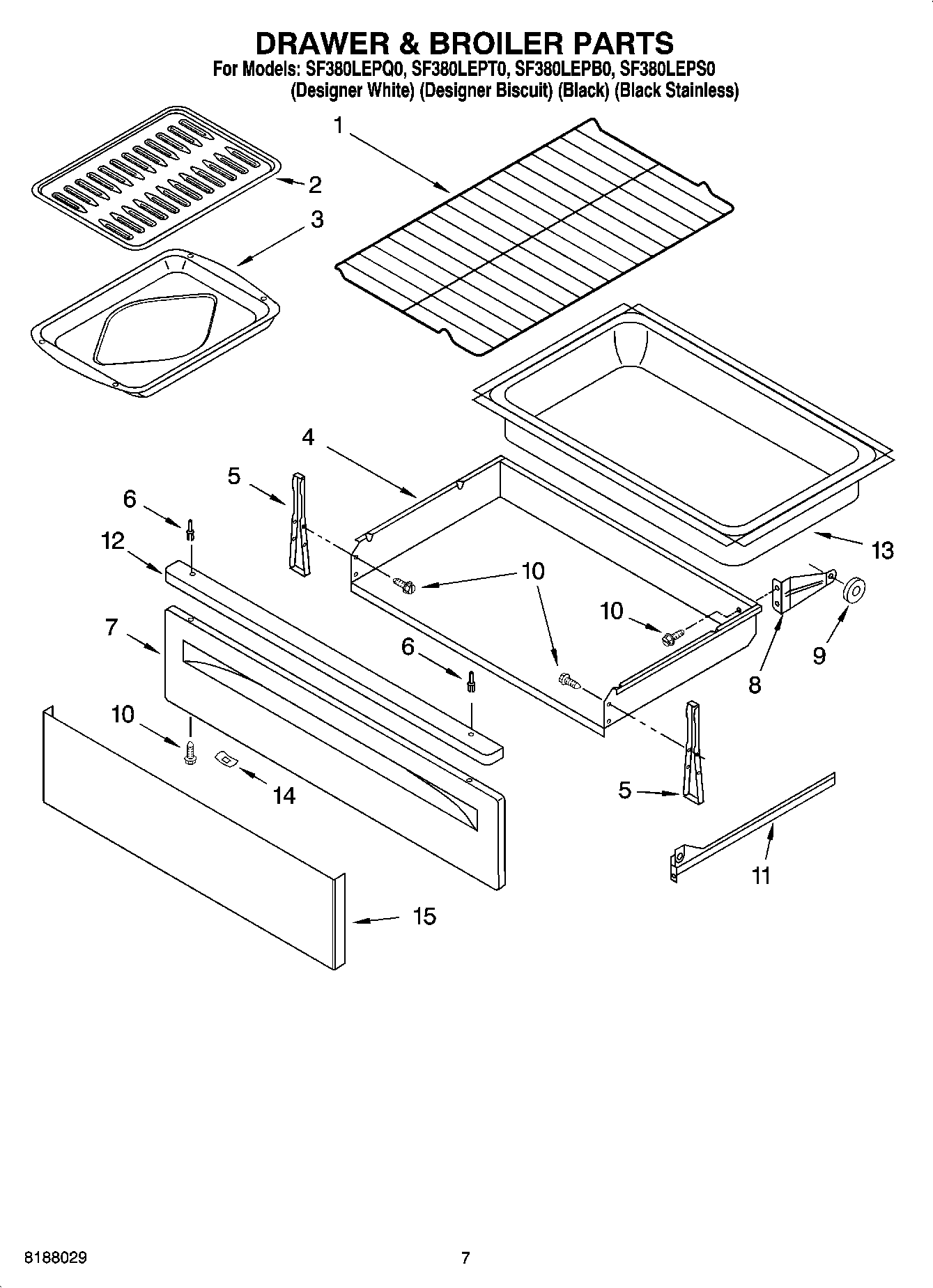

SF380LEPT0 05 – DRAWER & BROILER PARTS

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	BRKT-MNTG
6	WP3196814 Whirlpool Rivet
6	WP3196813 Whirlpool Rivet
6	3196815 Whirlpool Oven Rivet
7	W11230490 Whirlpool Drawer Panel
7	W11230486 Whirlpool Drawer Panel
7	PANEL, DRAWER FRONT (BISCUIT)
8	Bracket, Roller
9	814229 Whirlpool Primary Roller
10	WP3400832 Whirlpool Screw
11	W10761014 Whirlpool Right Door Trim
11	Rail, Drawer (Right Hand)
11	Rail, Drawer (Left Hand)
12	WPL 8053949
13	Liner, Drawer
14	WP9781235 Whirlpool Clip
15	Panel, Stnls & US
