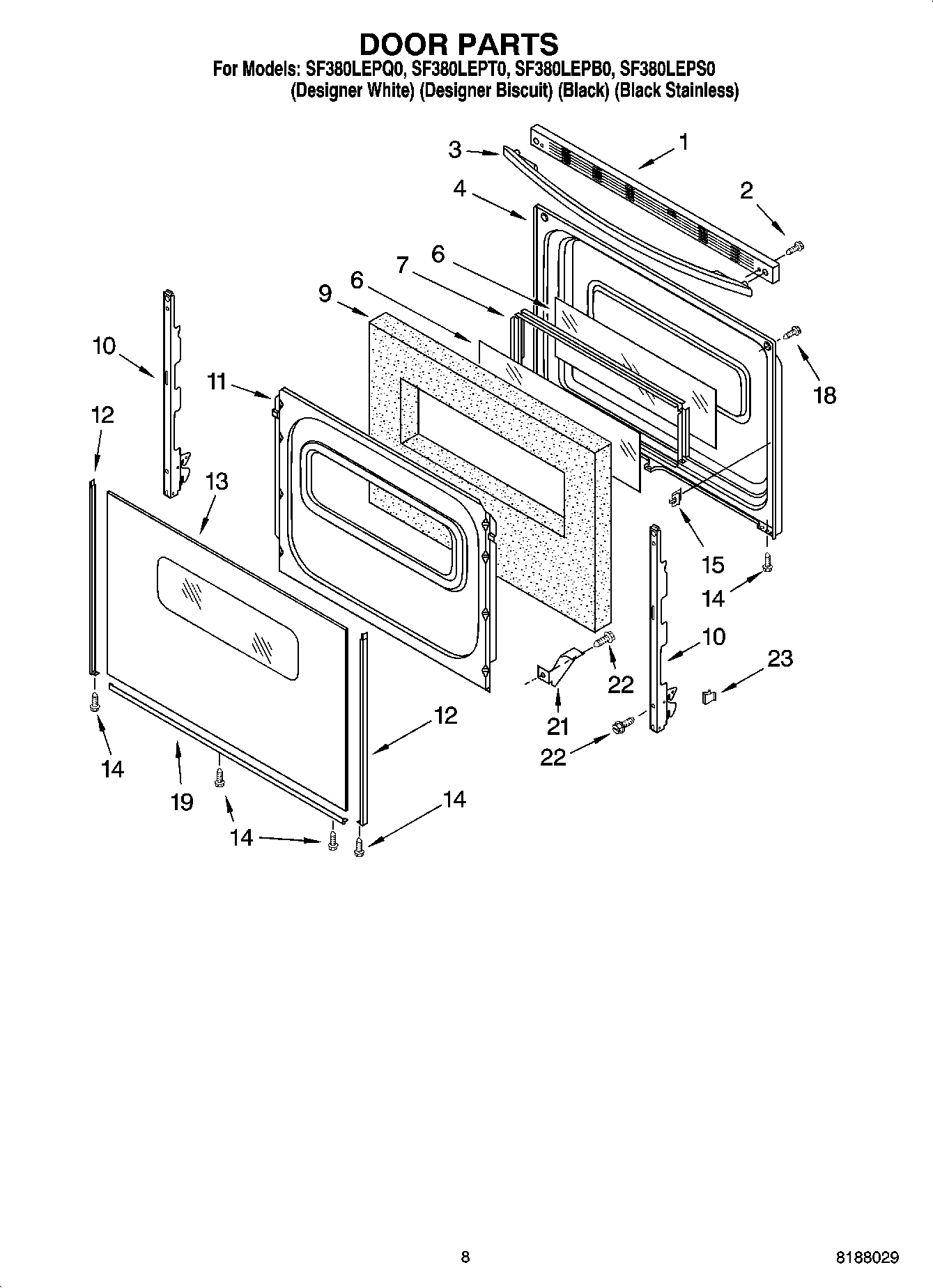

SF380LEPT0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

SF380LEPT0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

SF380LEPT0 06 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI164021A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
16515 Whirlpool Clip
3400964 Whirlpool Oven Clip
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL ARI164020A
WPL ARI164019A
WPL ARI164018A
WPL ARI164017A
WPL ARI164016A
WPL 8524207
WPL 8523424
TIE,WIRE
8523599 Whirlpool Oven Wire Harness
3196896 Whirlpool Clip
WPL ARI164022A
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
814381 Whirlpool Pin
WPW10208653 Whirlpool Insulation
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WPL 799832
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
1WPW10016370 Whirlpool Door Trim
1Trim, Top (Biscuit)
1Trim, Top (Black)
2WP3196164 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10202216 Whirlpool Door Handle
4Liner, Door
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
9WPW10278991 Whirlpool Insulation
10Hinge, Door (Stainless Model)
10WP8053807 Whirlpool Oven Door Hinge
11W11539580 Whirlpool Retainer
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
13Glass, Outer Door (Biscuit)
13WPW10118455 Whirlpool Door Glass Assembly
13Glass, Outer (Stainless Steel)
13WPW10118454 Whirlpool Door Outer Glass White
14W10491985 Whirlpool Screw
15Clip, Glass (4)
18WP179051 Whirlpool Screw
19WP8523175 Whirlpool Door Trim Assembly
19WP8523177 Whirlpool Door Trim Assembly
19WP8523178 Whirlpool Door Trim
19WP8523180 Whirlpool Door Trim Assembly
21WP3196794 Whirlpool Glass Bracket
22WP3196175 Whirlpool Screw
23WP3196925 Whirlpool Clip Assembly
