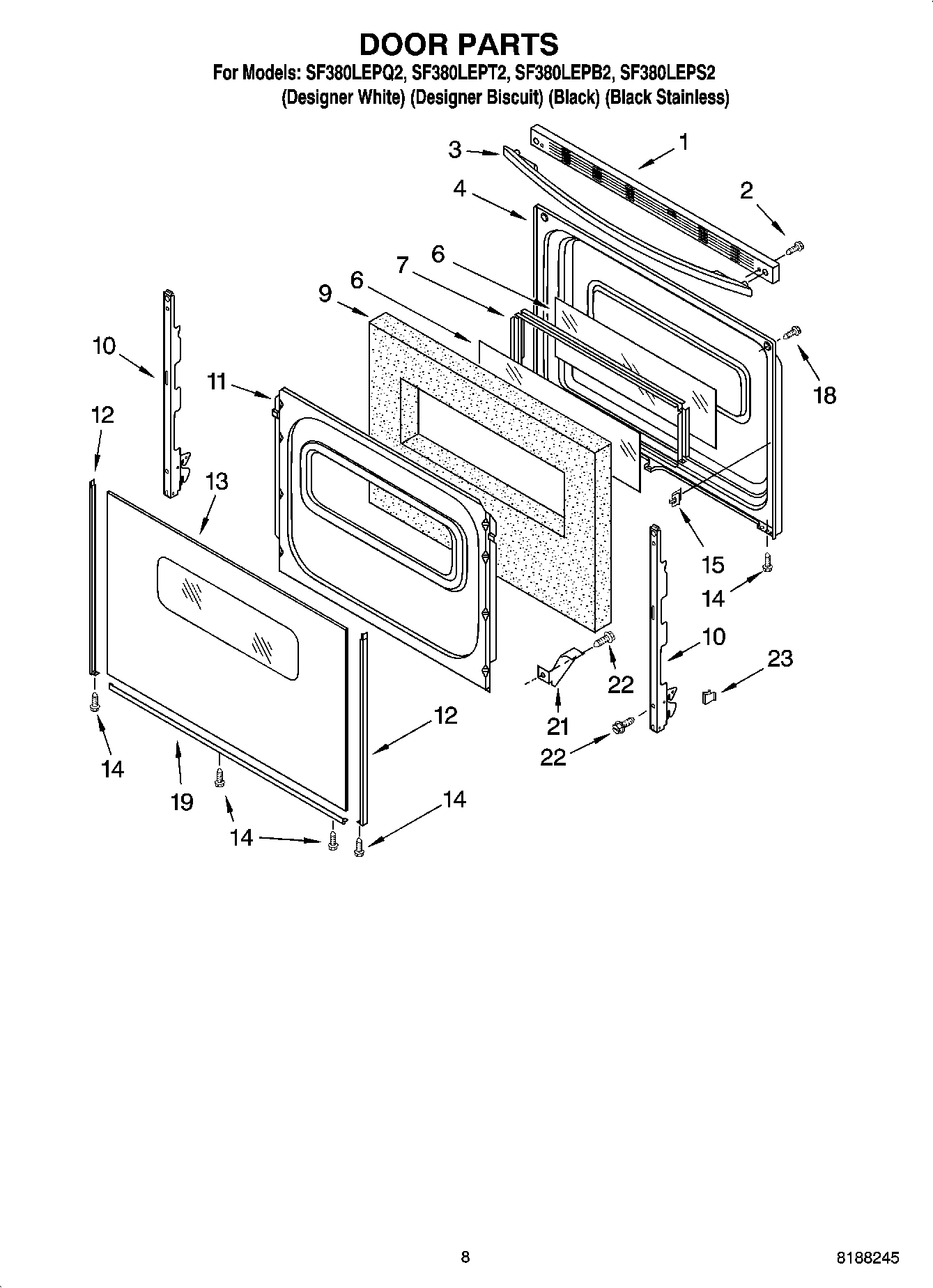

SF380LEPT2 06 – DOOR PARTS, OPTIONAL PARTS

SF380LEPT2 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF380LEPT2 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI164033A
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	WPL 8524207
	16515 Whirlpool Clip
	3400964 Whirlpool Oven Clip
	Wire (14 Ga. 150 c Orange)
	WPL 9758205
	WPL ARI164026A
	WPL ARI164027A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	TIE,WIRE
	3196896 Whirlpool Clip
	Grease
	3196696 Whirlpool Clip
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	8523599 Whirlpool Oven Wire Harness
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	WPL ARI164028A
	WPL ARI164029A
	W11447673 Whirlpool Range Tip Anchor
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	511873 Whirlpool Refrigerator Paint
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	WPL 799832
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	814381 Whirlpool Pin
	WPL ARI164030A
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
	WPL ARI164032A
	4396923 Whirlpool Broil Pan Set Gray Porcelain
	WPL ARI164031A
1	Trim, Top (Black)
1	Trim, Top (Stainless Model)
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Biscuit)
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
9	WPW10278991 Whirlpool Insulation
10	WP8053807 Whirlpool Oven Door Hinge
10	Hinge, Door (Stainless Model)
11	W11539580 Whirlpool Retainer
12	WP8523166 Whirlpool Door Trim
12	W10761018 Whirlpool Dishwasher Left Door Trim
12	WP8523167 Whirlpool Door Trim Assembly
12	WP8523172 Whirlpool Left Door Trim
12	WP8523173 Whirlpool Door Trim
13	Glass, Outer (Stainless Steel)
13	WPW10118454 Whirlpool Door Outer Glass White
13	Glass, Outer (Biscuit)
13	WPW10118455 Whirlpool Door Glass Assembly
14	W10491985 Whirlpool Screw
15	Clip, Glass (4)
18	WP179051 Whirlpool Screw
19	WP8523180 Whirlpool Door Trim Assembly
19	WP8523175 Whirlpool Door Trim Assembly
19	WP8523177 Whirlpool Door Trim Assembly
19	WP8523178 Whirlpool Door Trim
21	WP3196794 Whirlpool Glass Bracket
22	WP3196175 Whirlpool Screw
23	WP3196925 Whirlpool Clip Assembly
