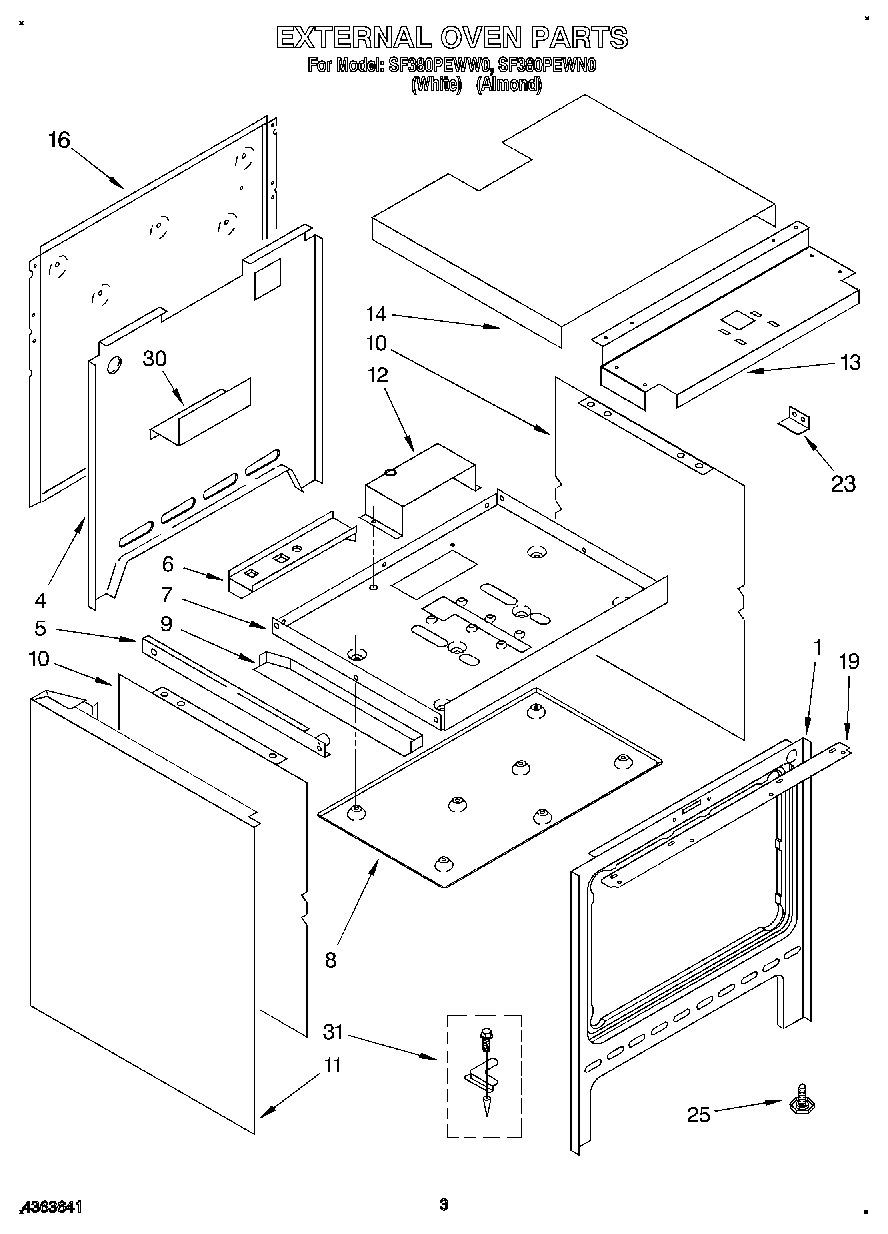

SF380PEWN0 02 – EXTERNAL OVEN

Products

Position	Product
1	Frame, Front
4	Retainer, Rear Insulation
5	Track, Storage Drawer (Right Side)
5	Track, Storage Drawer (Left Side)
6	Shelf, Gas Valve
6	Nut, 6-32 (6)
6	WP486754 Whirlpool Compactor Screw
7	WP965173 Whirlpool Dishwasher Screw
7	retainer, bottom insulation
8	Heat Shield, Storage Drawer
9	Brace, Bottom (L.H.)
9	Brace, Bottom (R.H.)
10	Retainer, Insulation (2)
11	Panel, End (White)
11	Panel, End (Almond)
12	Retainer, Ignitor
13	Retainer, Top Front Insulation
14	Retainer, Top Back
16	Panel, Rear
19	Frame, Filler Front
23	WP488130 Whirlpool Air Conditioner Nut
23	Screw No.8 x 1/2
23	Bracket, Gas Valve (2)
25	Leg, Leveling (4)
30	Cover, Electrical
31	Anti Tip Kit
