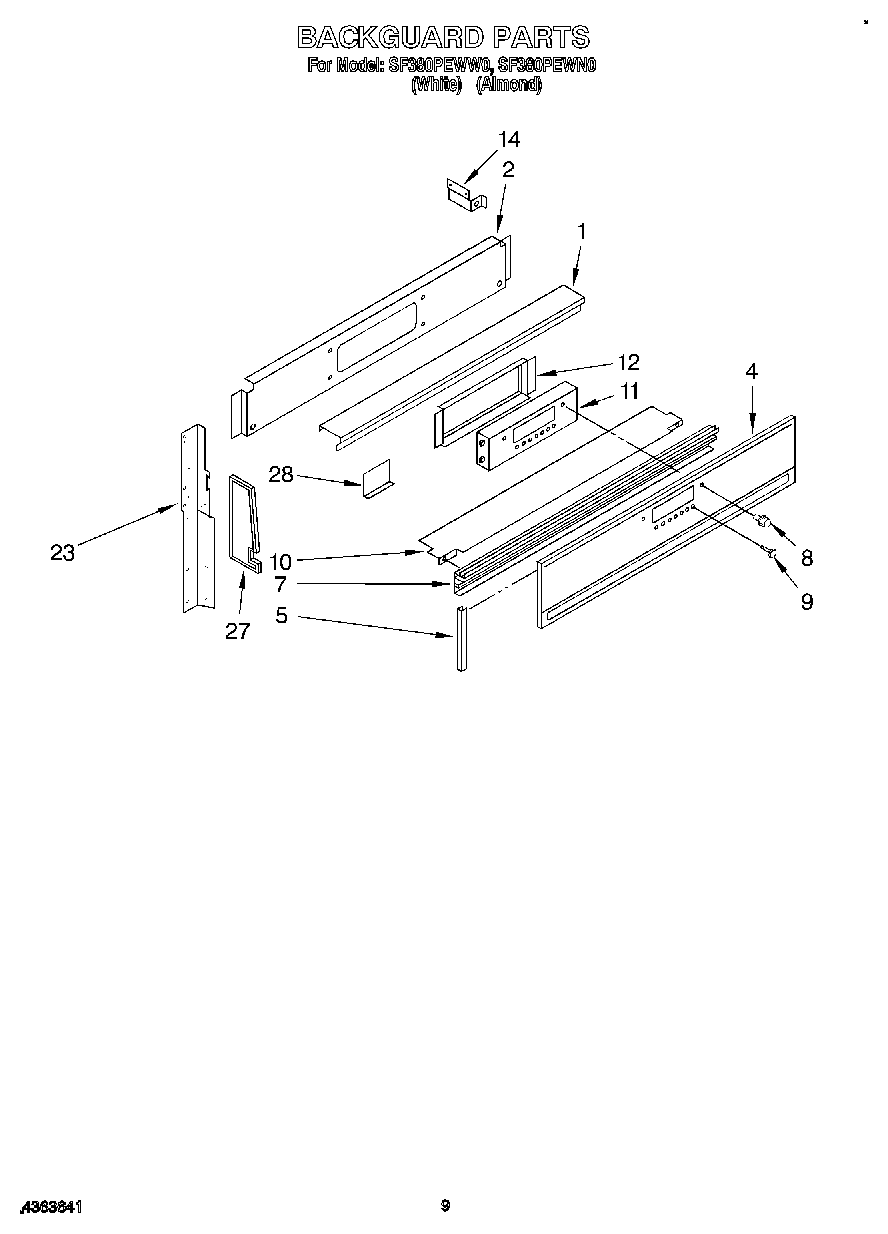

SF380PEWN0 06 – BACKGUARDadmin2025-04-26T13:05:26+00:00SF380PEWN0 06 – BACKGUARD
Products
| Position | Product |
|---|
| 1 | WP965173 Whirlpool Dishwasher Screw |
| 1 | Trim, Top (White) |
| 1 | screw (4) |
| 1 | Screw, Handle (4) |
| 2 | Panel, Control Mounting |
| 4 | Glass, Control Panel |
| 5 | Channel, Glass (2) |
| 7 | Trim, Lower |
| 8 | Knob, Clock |
| 9 | Knob, Set Button |
| 10 | Shield, Heat |
| 10 | Screw |
| 11 | Electronic Range Control |
| 12 | Bracket, clip |
| 14 | Support, Lamp Socket (Right Side) |
| 14 | Support, Lamp Socket (Left Side) |
| 23 | Support, Control Panel (2) (R.H.) |
| 23 | Support, Control Panel (2) (L.H.) |
| 27 | End Cap (L.H.) |
| 27 | End Cap (R.H.) |
| 28 | Bottom, Flue Box |
