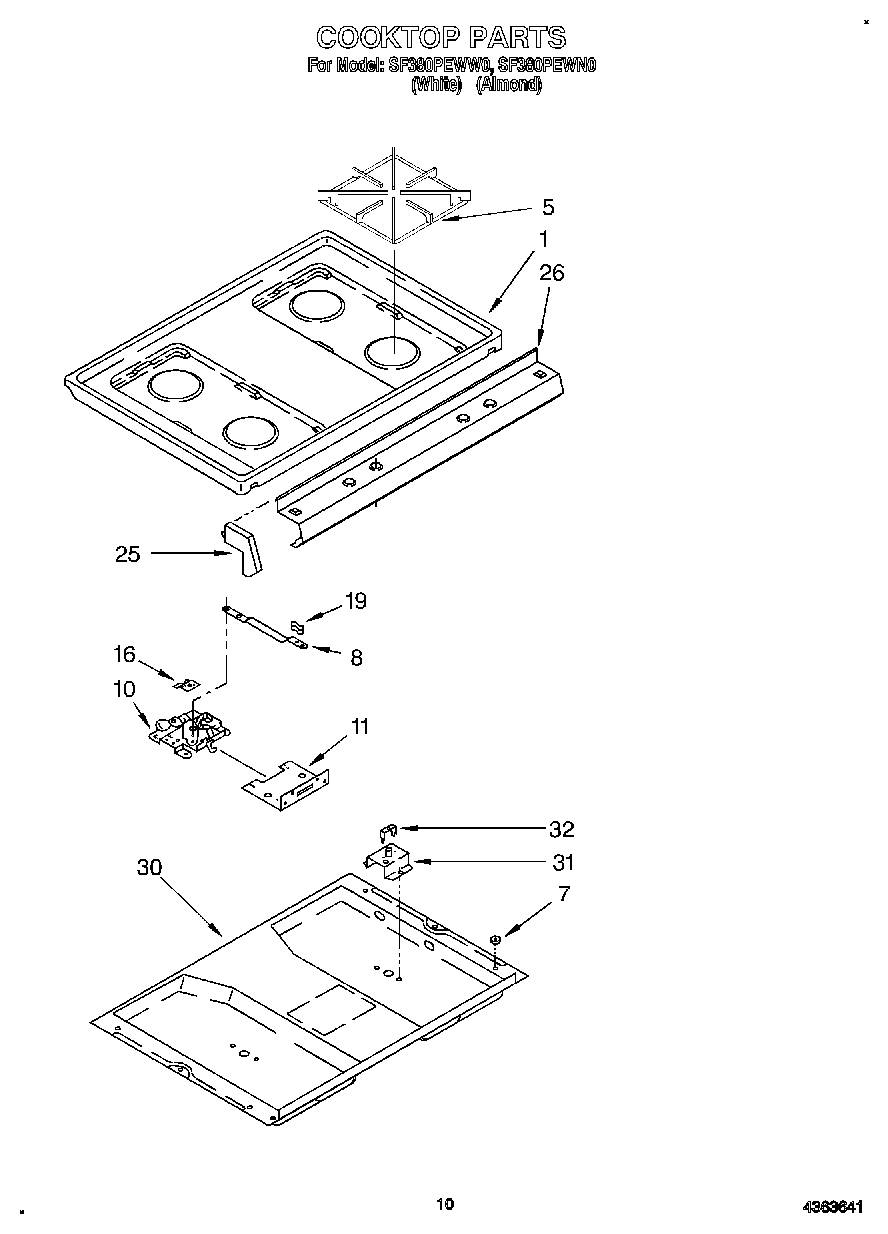

SF380PEWN0 07 – COOKTOPadmin2025-04-26T13:08:12+00:00SF380PEWN0 07 – COOKTOP
Products
| Position | Product |
|---|
| 1 | Top, Main (Almond) |
| 1 | Top, Main (White) |
| 5 | Grate, Top Burner (4) |
| 7 | Spacer, Nylon (4) |
| 8 | Latch Arm |
| 10 | Screw No.8 x 1/2 |
| 10 | Screw |
| 10 | Latch Assembly |
| 11 | Bracket, Latch Mounting |
| 16 | Bracket, Switch |
| 16 | screw, 4-40 (2) |
| 19 | Knob Latch |
| 25 | End Cap (White, LH) |
| 25 | End Cap (White, RH) |
| 26 | Panel, Control |
| 30 | Burner Box |
| 31 | Bracket, Top (2) |
| 32 | Bracket, Electrode (2) |
