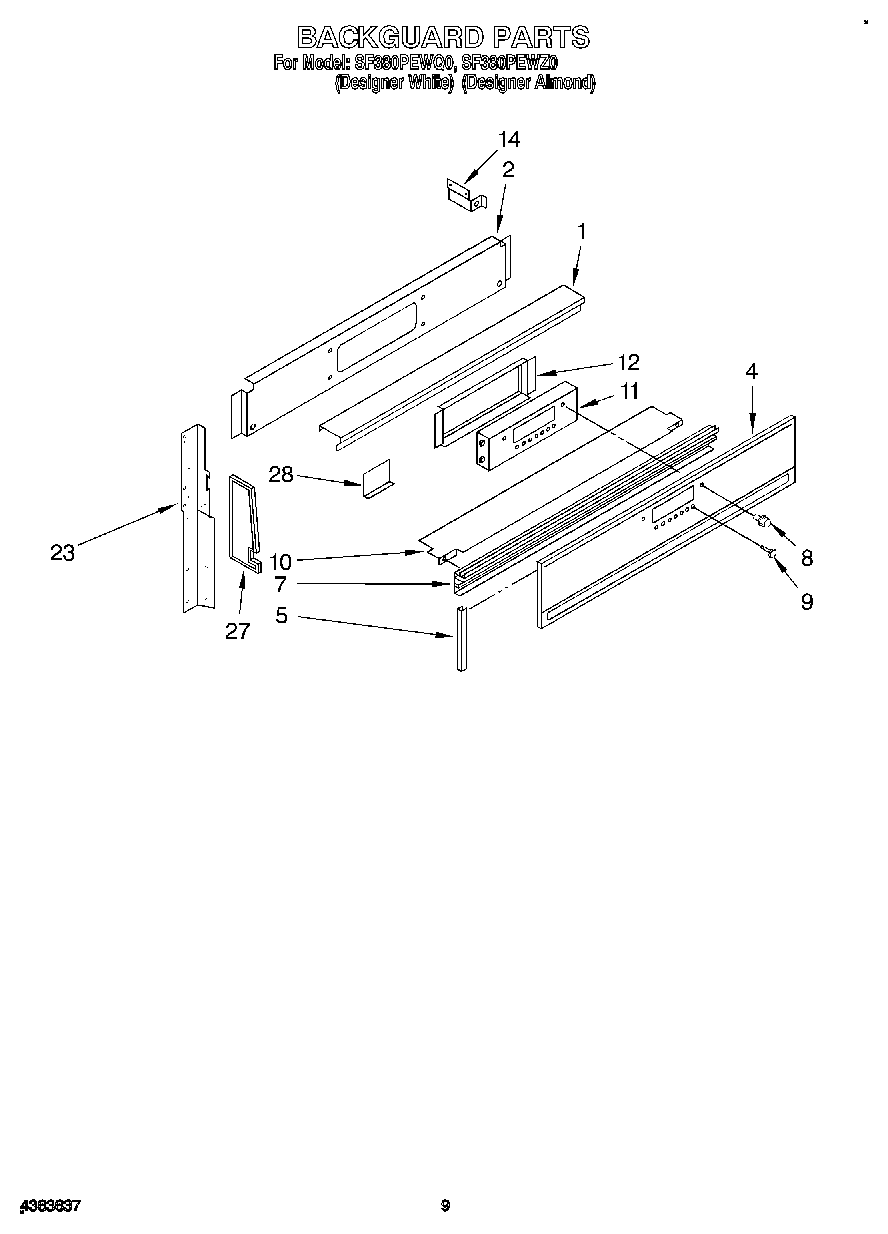

SF380PEWQ0 06 – BACKGUARD

Products

PositionProduct
1WP965173 Whirlpool Dishwasher Screw
1Trim, Top (White)
1Trim, Top (Almond)
1screw (4)
1Screw, Handle (4)
2Panel, Control Mounting
4Glass, Control Panel (White)
4Glass, Control Panel (Almond)
5Channel, Glass (White Model)
5Channel, Glass (Almond Model)
7Trim, Lower
8Knob, Clock (White)
8Knob, Clock (Almond)
9Knob, Set Button (Almond)
9Knob, Set Button (White)
10Screw
10Shield, Heat
11Electronic Range Control
12Bracket, clip
14Support, Lamp Socket (Left Side)
14Support, Lamp Socket (Right Side)
23Support, Control Panel (2) (L.H.)
23Support, Control Panel (2) (R.H.)
27End Cap (L.H.)
27End Cap (R.H.)
27End Cap (Almond, L.H.)
27End Cap (Almond, R.H.)
28Bottom, Flue Box
