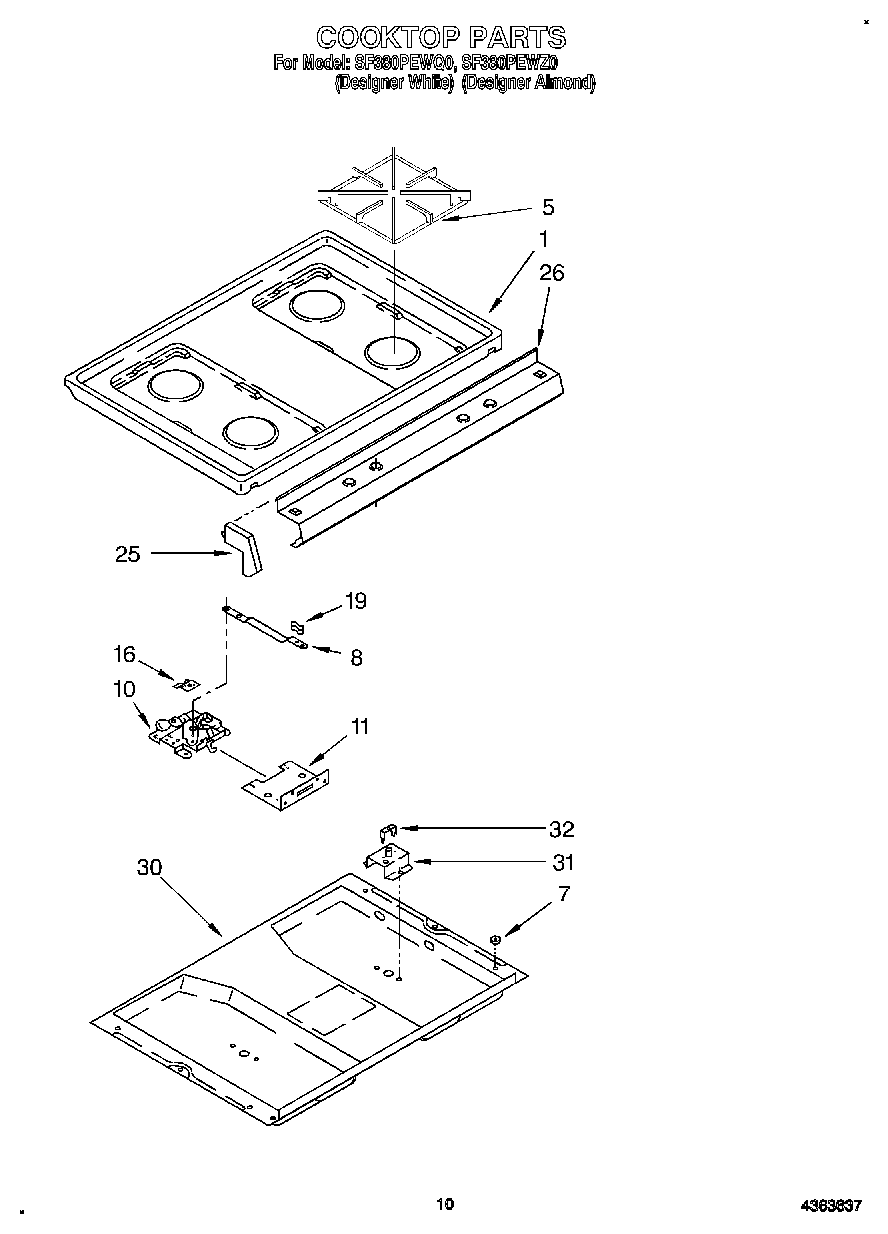

SF380PEWQ0 07 – COOKTOP

SF380PEWQ0 07 – COOKTOP

Written by

in

SF380PEWQ0 07 – COOKTOP

Products

Position	Product
1	Top, Main (Almond)
1	Top, Main (White)
5	Grate, Top Burner (4)
5	Grate (4) ((White Model))
7	Spacer, Nylon (4)
8	Handle, Latch (Almond)
8	Handle, Latch (White)
10	Screw
10	Latch Assembly
10	Screw No.8 x 1/2
11	Bracket, Latch Mounting
16	Bracket, Switch
16	screw, 4-40 (2)
19	Knob, Latch Handle (Almond)
19	Knob, Latch Handle (White)
25	End Cap (Almond, RH)
25	End Cap (Almond LH)
25	End Cap (White, LH)
25	End Cap (White, RH)
26	Panel, Control (White)
26	Panel, Control (Almond)
30	Burner Box
31	Bracket, Top (2)
32	Bracket, Electrode (2)
