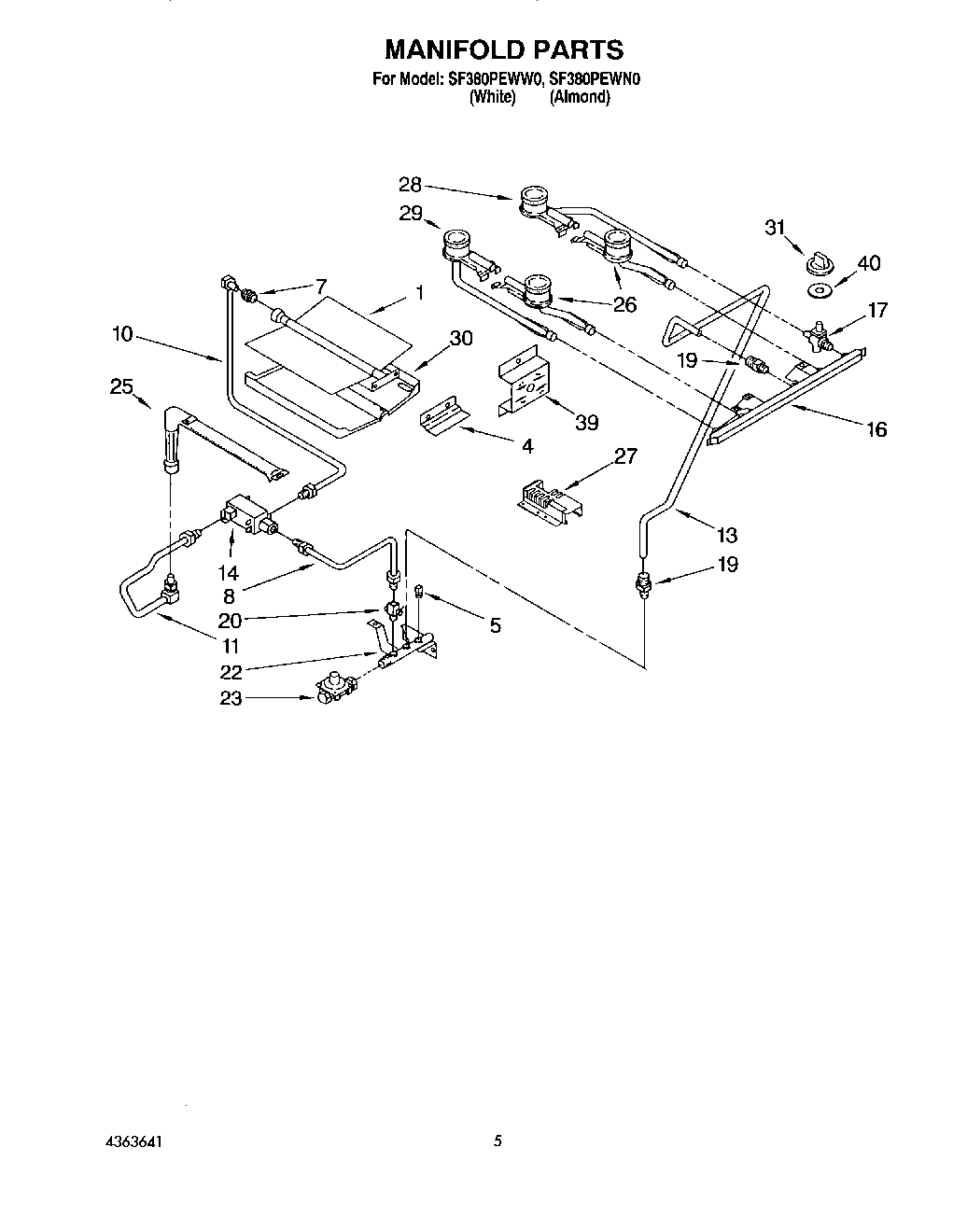

SF380PEWW0 03 – MANIFOLD

SF380PEWW0 03 – MANIFOLD

Written by

in

SF380PEWW0 03 – MANIFOLD

Products

PositionProduct
1Burner, Broiler
1Nut, 6-32 (6)
4Screw
4Support, Burner Mounting
5W10295523 Whirlpool Plug
7Natural Gas No. 51.
8Tubing, (Inlet To Gas Valve)
10Orifice & Tubing Assembly (Gas Valve To Ultra Ray Burner)
11hood & tubing assembly (gas valve to lower oven burner)
11Nut, Lock
13tubing (inlet to manifold)
14Valve, Dual Gas Valve
16Plate, Cover
17Valve, Top Burner (Tri-Set)
17Screw, Valve
19Fitting
20Valve, Shut-Off
22Inlet, Gas
23Regulator, Pressure
25Oven Burner, Lower
26Top Burner, Front (2)
27Shield, Broiler Ignitor
28Top Burner, R.R.
29Top Burner, L.R.
30Baffle, Burner
31Knob, Top Burner (4)
39Bracket, Top (2)
40Shield
