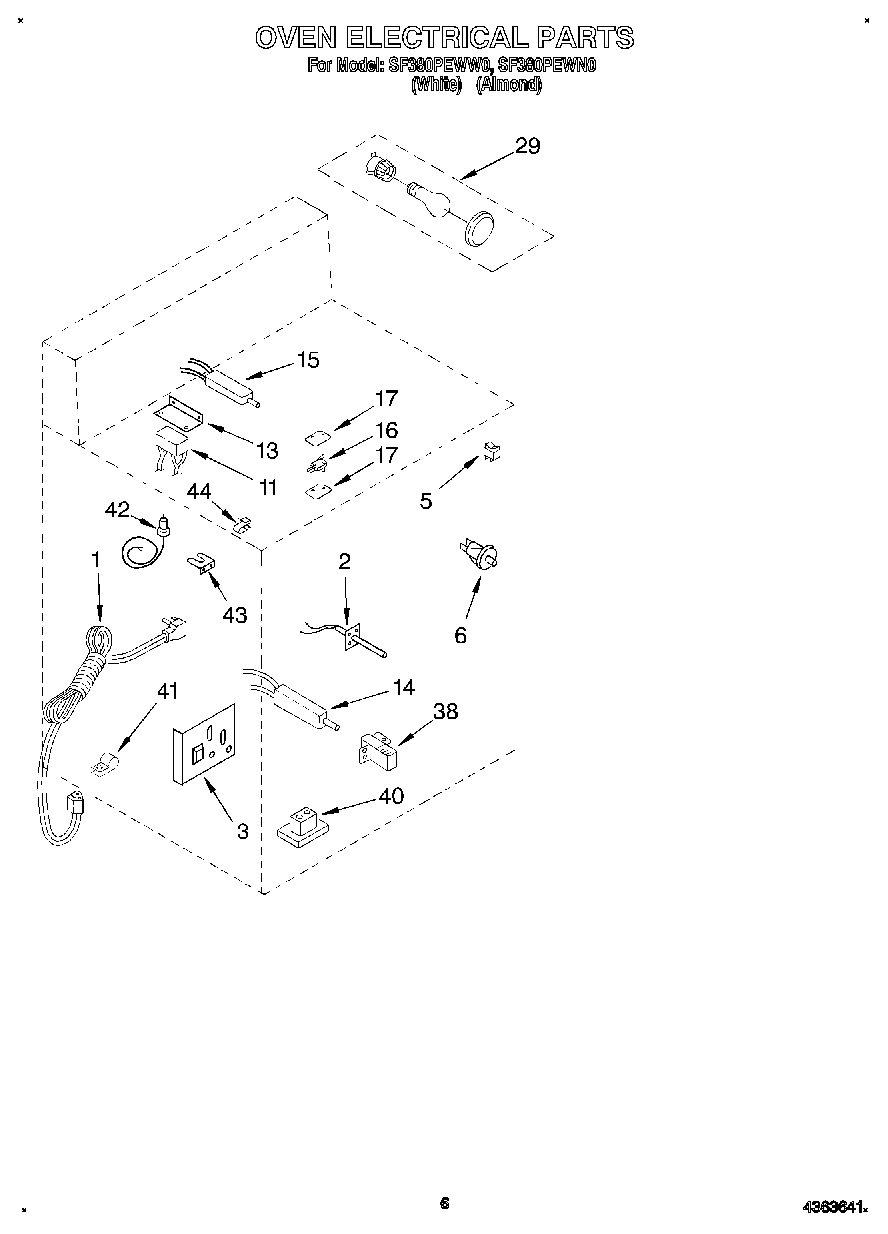

SF380PEWW0 04 – OVEN ELECTRICAL, LITERATURE

Products

PositionProduct
Instructions, Installation
Diagram, Wiring
Guide, Use & Care
1Cord, Power
2WPY0314907 Whirlpool Sensor
2screw, 6-32 x 1/4 (2)
3Support, Circuit Board (4)
3Circuit Board
5Switch, Rocker
6Switch, Oven Door
11Spark Module
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15Ignitor, Broil
16Switch, Oven Door Latch
17screw, 4-40 x 5/8 (2)
17Insulator, Switch
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
40Plug, Ignitor Wire
41Clamp
424157608 Whirlpool Surface Igniter
43WP965173 Whirlpool Dishwasher Screw
43WPY0070927 Whirlpool Microwave Clip
44Clip, Cable ESM
