SF380PEWW0 07 – COOKTOP

Products

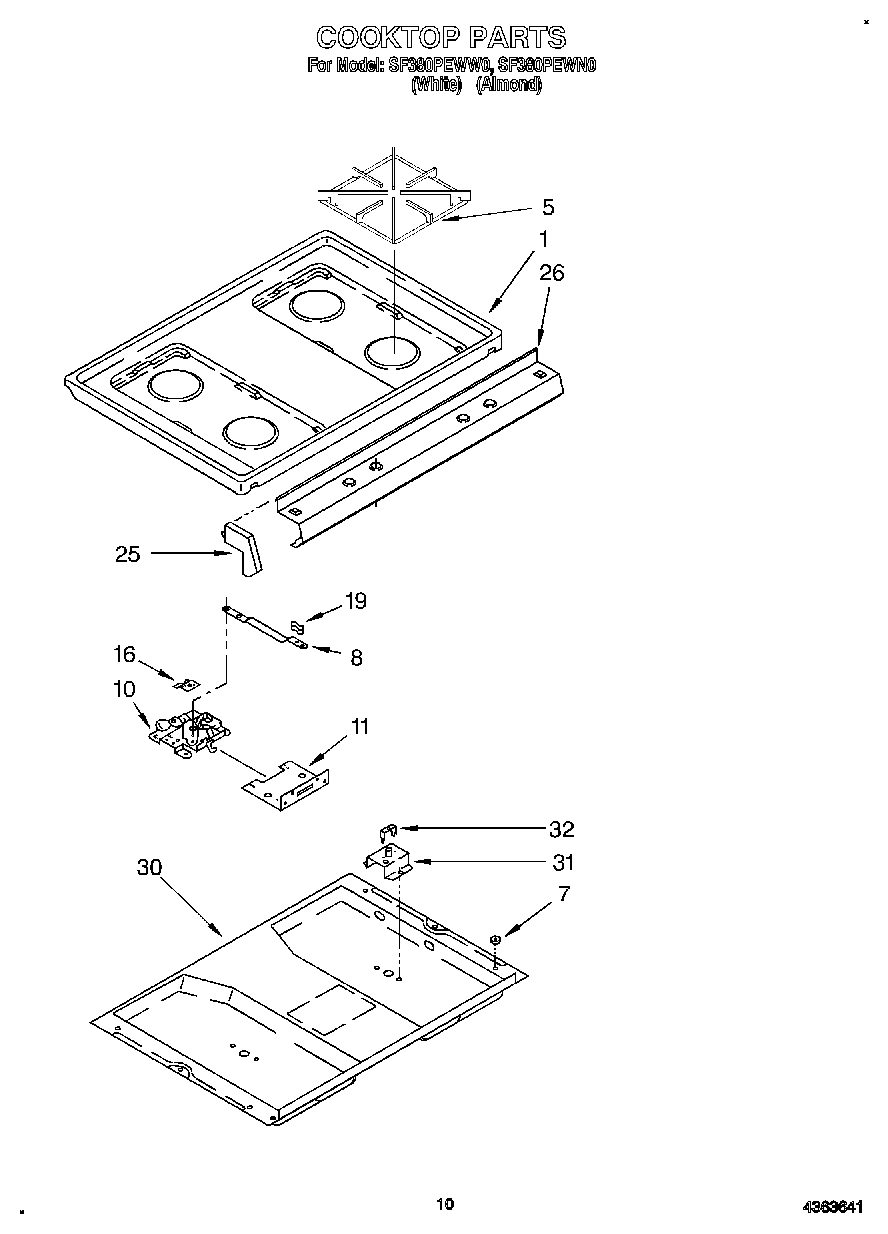

Position	Product
1	Top, Main (Almond)
1	Top, Main (White)
5	Grate, Top Burner (4)
7	Spacer, Nylon (4)
8	Latch Arm
10	Screw No.8 x 1/2
10	Screw
10	Latch Assembly
11	Bracket, Latch Mounting
16	Bracket, Switch
16	screw, 4-40 (2)
19	Knob Latch
25	End Cap (White, LH)
25	End Cap (White, RH)
26	Panel, Control
30	Burner Box
31	Bracket, Top (2)
32	Bracket, Electrode (2)
