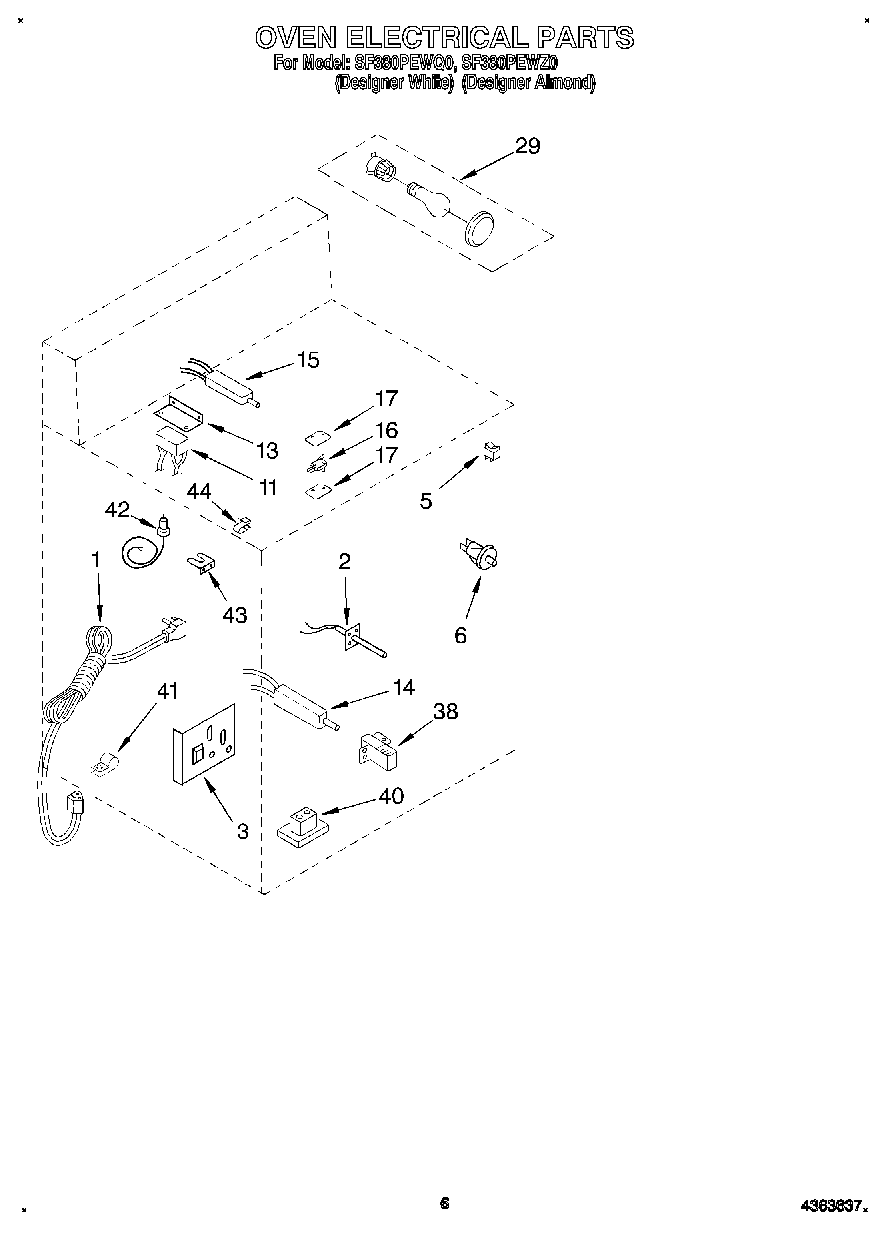

SF380PEWZ0 04 – OVEN ELECTRICAL, LITERATURE

Products

PositionProduct
Instructions, Installation
Diagram, Wiring
Guide, Use & Care
1Cord, Power
2WPY0314907 Whirlpool Sensor
2screw, 6-32 x 1/4 (2)
3Circuit Board
3Support, Circuit Board (4)
5Switch, Rocker (Almond)
5Switch, Rocker (White)
6Switch, Oven Door
11Spark Module
13Bracket, Spark Module
14786324 Whirlpool Flat Igniter
15Ignitor, Broil
16Switch, Oven Door Latch
17Insulator, Switch
17screw, 4-40 x 5/8 (2)
29WP74011278 Whirlpool Light
38Bracket, Bake Ignitor
40Plug, Ignitor Wire
41Clamp
424157608 Whirlpool Surface Igniter
43WP965173 Whirlpool Dishwasher Screw
43WPY0070927 Whirlpool Microwave Clip
44Clip, Cable ESM
