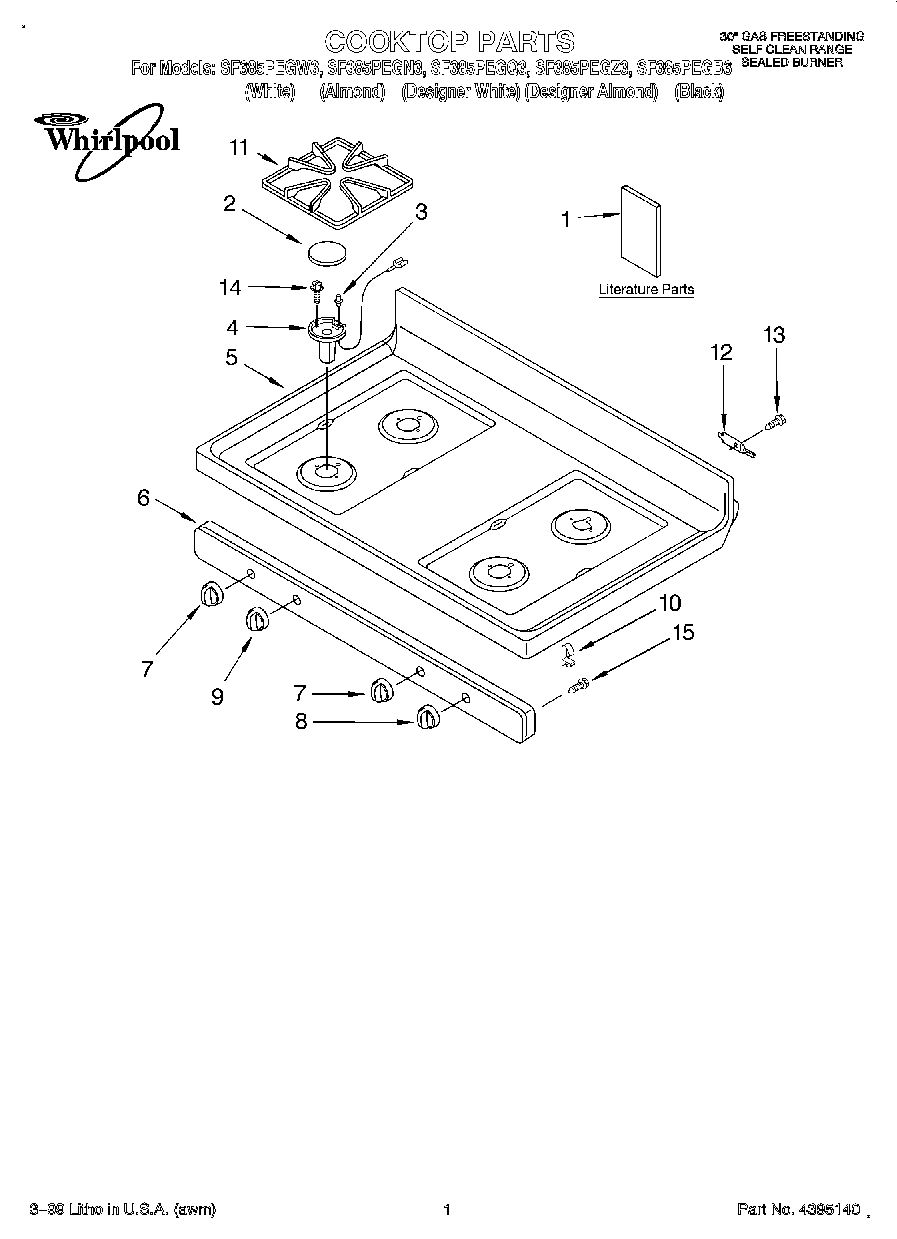

SF385PEGB3 01 – COOKTOP, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	WPL LIT3196061
1	WPL LIT8053366
1	WPL LIT8053426
1	Literature (Installation, Instructions (Template))
2	Cap, Burner (Large (3) (Black))
2	(Cap, Burner Small (1)) (Gray)
2	Cap, Burner (Small (1) (Black))
2	Cap, Burner Large (3) (Gray)
3	W11117434 Whirlpool Surface Igniter
3	W11087383 Whirlpool Surface Igniter
3	W11122877 Whirlpool Surface Igniter
3	W11032529 Whirlpool Surface Igniter
4	WP8053360 Whirlpool Burner Head
4	Burner, 6,500 BTU (RR)
5	Cooktop (White)
5	Cooktop (Almond)
5	Cooktop (Black)
6	Panel, Manifold (Almond Model)
6	WP8523854 Whirlpool Manifold Panel
6	8523855 Whirlpool Oven Manifold Panel
7	Knob, Control (2) (Almond)
7	WP8053595 Whirlpool Oven Knob
7	WP8053596 Whirlpool Knob
8	Knob, Accusimmer (Almond)
9	Knob, Powerburner (Almond)
10	Clip – Mounting
11	WPW10447925 Whirlpool Grate Kit
11	WP8053456 Whirlpool Burner Grate
12	WP3195060 Whirlpool Cooktop Pin
13	SCREW
14	WP3400861 Whirlpool Screw
15	WP3196557 Whirlpool Screw
