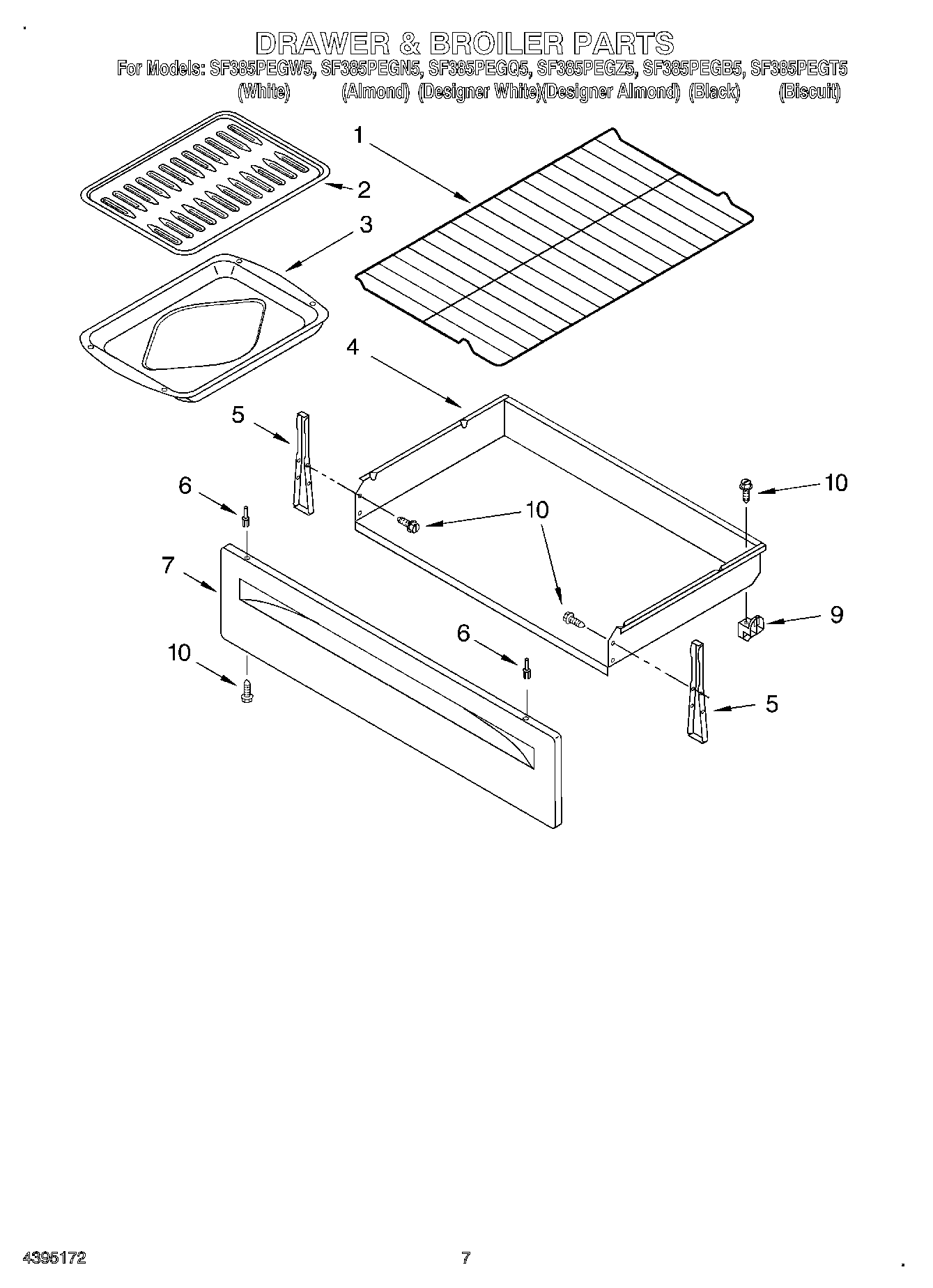

SF385PEGB5 05 – DRAWER & BROILER

SF385PEGB5 05 – DRAWER & BROILER

Written by

in

SF385PEGB5 05 – DRAWER & BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7W11230486 Whirlpool Drawer Panel
7W11230490 Whirlpool Drawer Panel
7Panel, Drawer Front (Almond)
7PANEL, DRAWER FRONT (BISCUIT)
9WP8053334 Whirlpool Drawer Glide
10WP3400832 Whirlpool Screw
