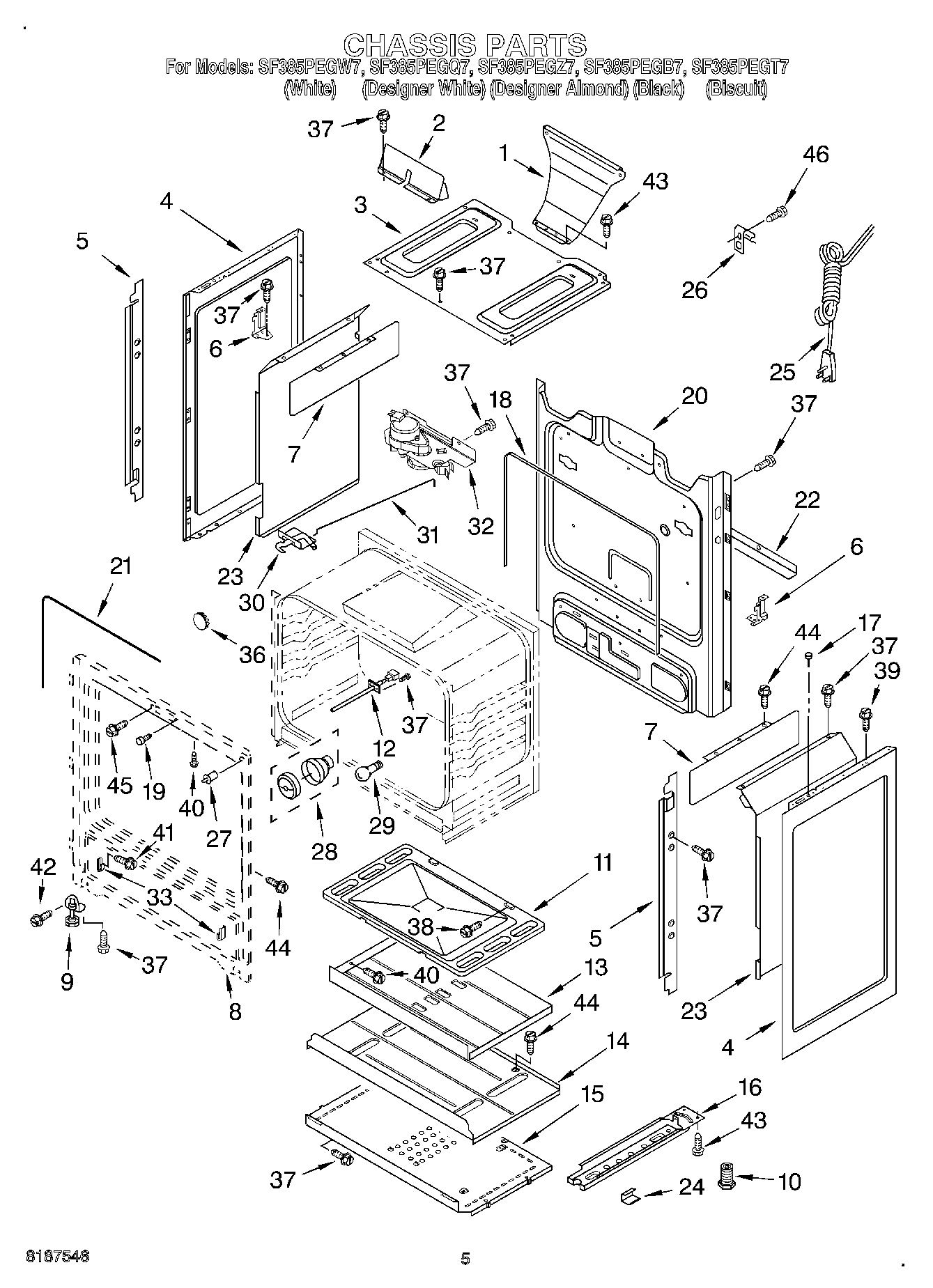

SF385PEGZ7 04 – CHASSIS

Products

PositionProduct
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4Panel, Side (2) (Almond-Textured)
4WPW10575396 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
4W10162246 Whirlpool Side Panel
5Shield, Heat (2)
6Brkt, Manifold Mtg (Right Hand)
6Brkt, Manifold Mtg (Left Hand)
7Shield, Heat (2)
8Frame, Front (Not Serviceable)
9WP3196037 Whirlpool Leveling Foot
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12WP8273340 Whirlpool Sensor
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16WPW10306546 Whirlpool Base Rail
17238614 Whirlpool Bumper Hinge
18Seal, Oven Flange
19W10877054 Whirlpool Spacer Assembly
20Back, Main
21W11542153 Whirlpool Door Gasket
22Brace, Main Back
23Retainer, Insul. (Left Hand)
23Retainer, Insul. (Right Hand)
24Clip, Panel (6)
25WP9757891 Whirlpool Power Cord
26549193 Whirlpool Refrigerator Power Clamp
27WP3196262 Whirlpool Light Switch
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
33WP3195546 Whirlpool Drawer Glide
36Button, Plug
38Screw
39Screw (Almond)
393196166 Whirlpool Screw
40SCREW
41WP3196175 Whirlpool Screw
42Screw
43WP3196557 Whirlpool Screw
44WP7101P246-60 Whirlpool Screw
45WP3400832 Whirlpool Screw
46W11688737 Whirlpool Insulation
46W11244557 Whirlpool Screw
46WPW10208653 Whirlpool Insulation
