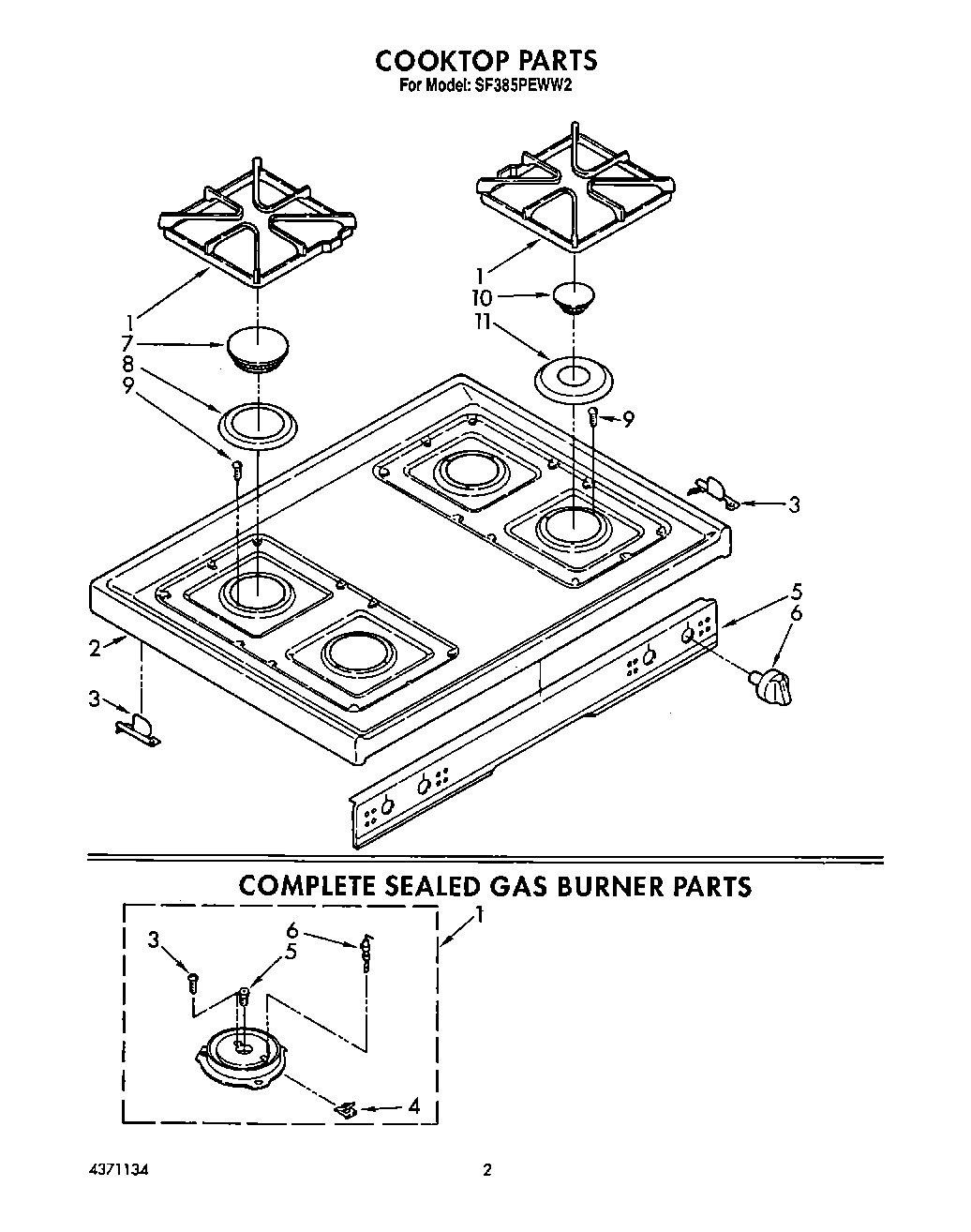

SF385PEWN2 02 – COOKTOP, COMPLETE SEALED GAS BURNER

Products

PositionProduct
1Grate
1Burner, (Large) See Page 5 For Further Breakdown
1Burner, (Small) See Page 5 For Further Breakdown.
2Top, Main (Almond)
2Top, Main (White)
3Screw, Burner
3Bracket, Hinge RH
3Bracket, Hinge LH
4Clip, Ignitor
5Panel, Manifold
5Orifice, Burner (Use With Small Burner)
5Orifice
6Ignitor
6Knob, Control (4)
7Cap, Burner (Lg)
8Ring, Trim (Large)
9Screw, Gas Burner Mounting (12)
10Cap, Burner (Small)
11Ring, Trim (Sm)
