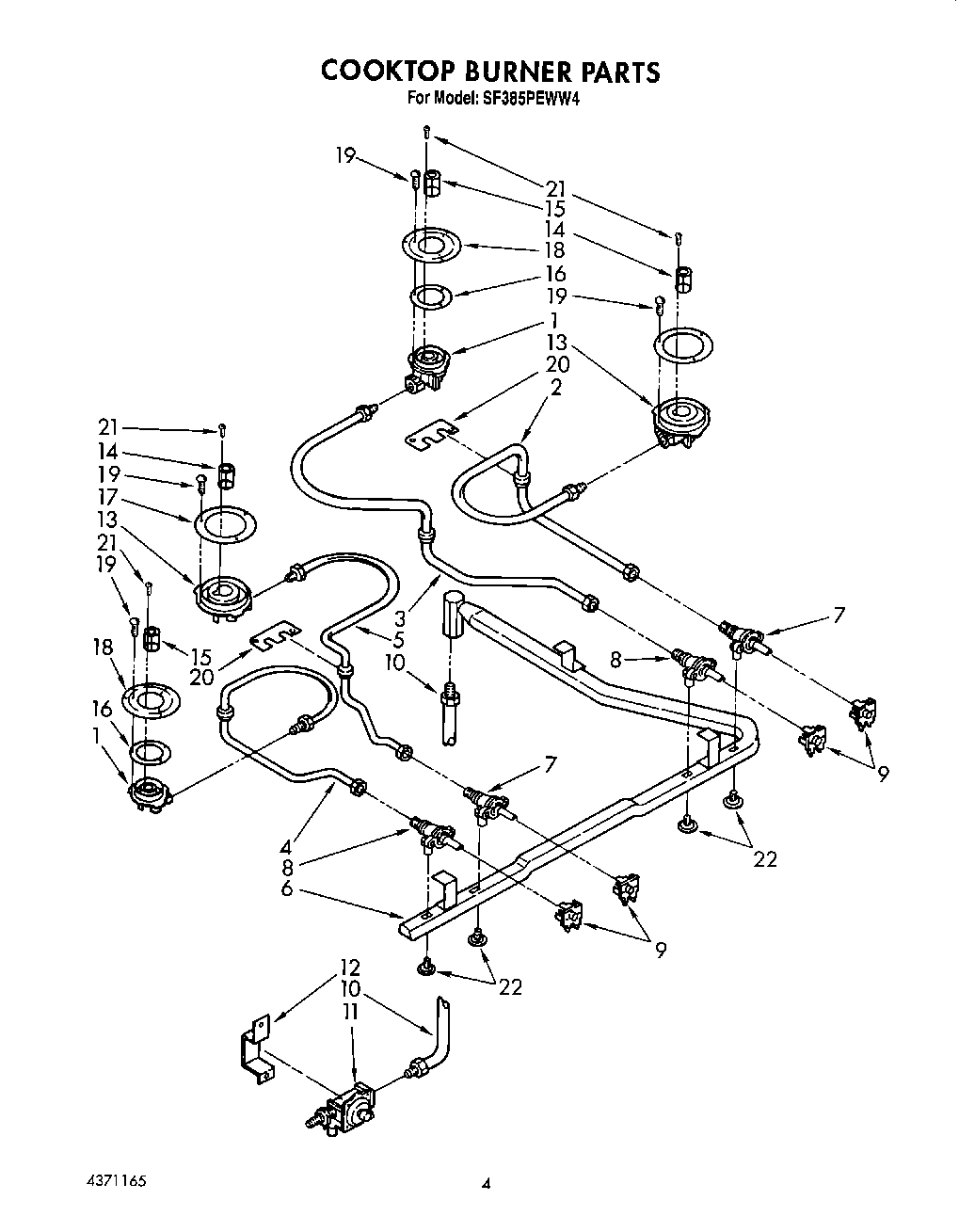

SF385PEWN4 04 – COOKTOP BURNERadmin2025-04-26T13:09:49+00:00SF385PEWN4 04 – COOKTOP BURNER
Products
| Position | Product |
|---|
| 1 | Burner, (Small) See Page 5 For Further Breakdown. |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Pipe, Manifold |
| 7 | Valve, Top Burner (LG) |
| 8 | Valve, Top Burner (SM) |
| 9 | Switch, Ignitor (4) |
| 10 | Tubing, Regulator To Manifold Pipe |
| 11 | Knob, Latch |
| 12 | Bracket, Regulator |
| 13 | Burner, (Large) See Page 5 For Further Breakdown |
| 14 | Shutter, Burner Air (Use With Large Burner) |
| 15 | Shutter, Burner Air (Use With Small Burner) |
| 16 | Seal, Burner (Small) |
| 17 | Seal, Burner (Large) |
| 18 | Plate, Burner Mounting (2) |
| 19 | Screw, Mounting Plate To Burner |
| 20 | Plate, Burner |
| 21 | Screw, Burner |
| 22 | Screw, Valve To Manifold Pipe (8) (RF & RR) |
