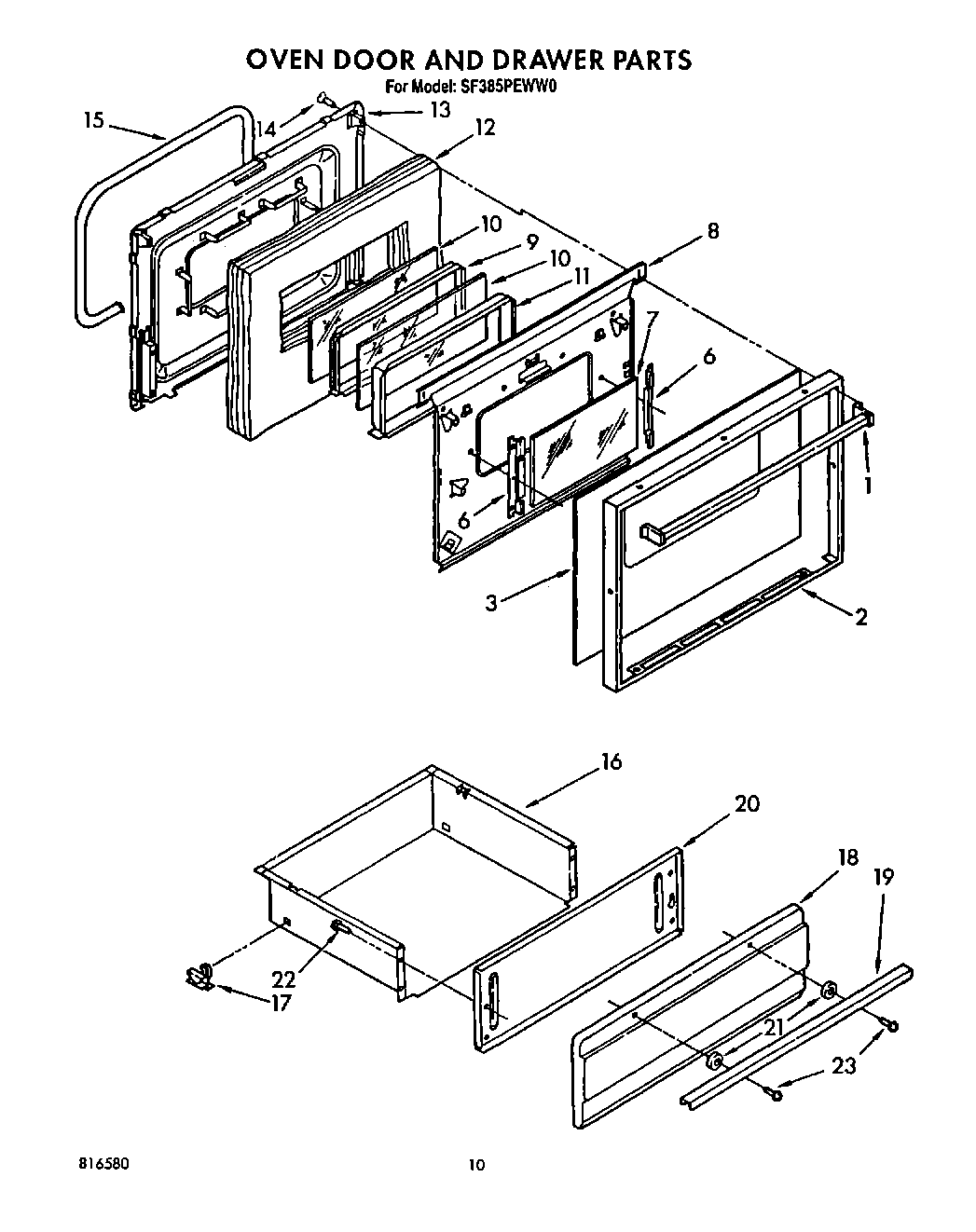

SF385PEWW0 09 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Door
3Glass, Door
6Bracket, Glass
7Glass, Oven Door
8Shield, Heat
9Spacer, Glass
10Glass, Heat Barrier (2)
11Collar, Glass
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Rope
15Seal, Oven Door
16Drawer, Utility
17Guide, Drawer
18Panel, Drawer
19Handle, Utility Drawer
20Shield, Panel
21Spacer, Handle
22WP302868 Whirlpool Screw
23Screw, No.8x18x3/8 (4)
