SF385PEWW3 06 – OVEN

SF385PEWW3 06 – OVEN

Written by

in

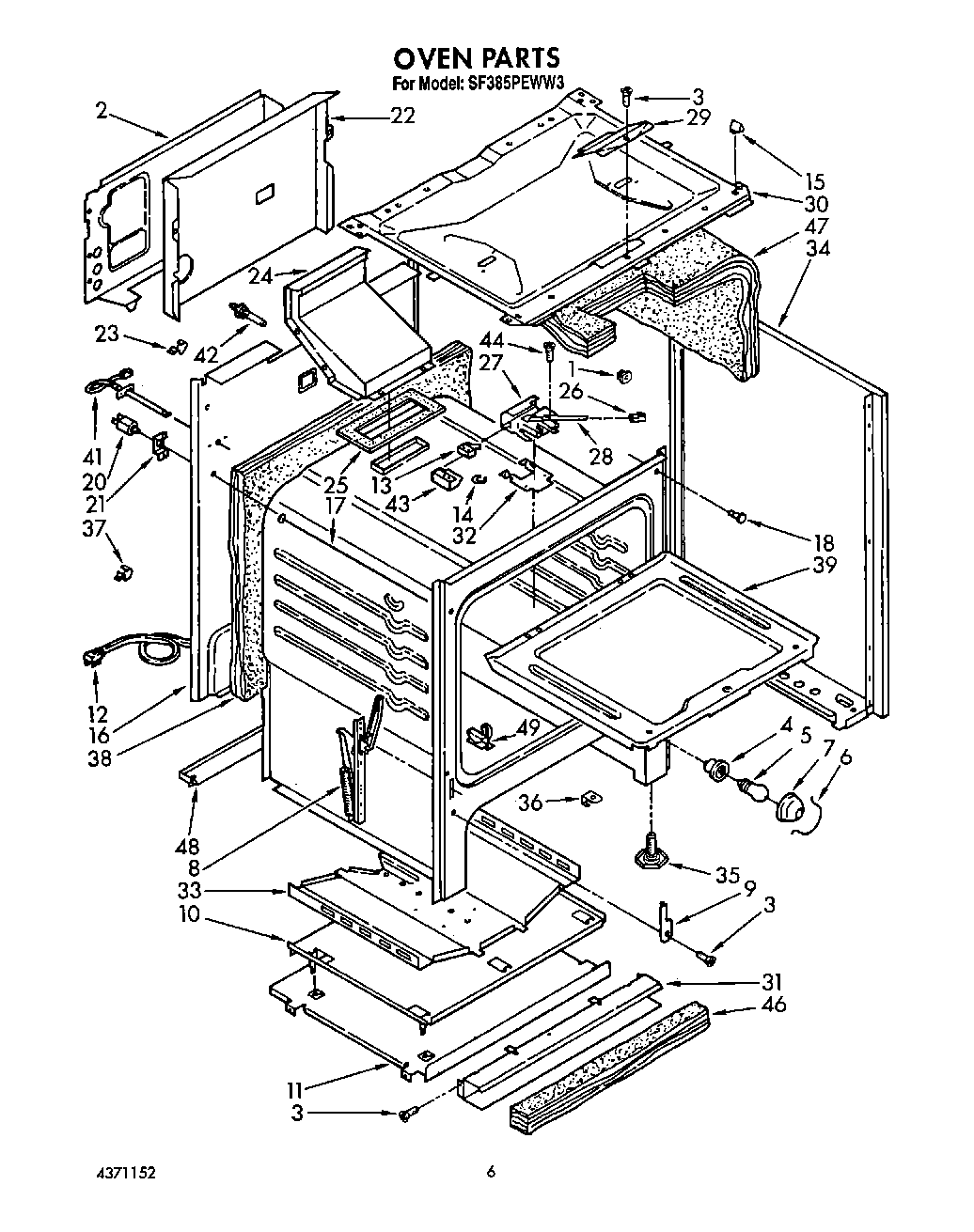

SF385PEWW3 06 – OVEN

Products

Position	Product
1	Spacer, Body (8)
2	Shield, Rear Wall
3	Screw, Oven Bottom
4	W10856866 Whirlpool Light Socket
5	RANGE ONLY 40W 120V APPL BULB
6	Retainer, Lens
7	Lens, Oven Light
8	Hinge, Oven Door
9	Cover, Hinge
10	Shield, Heat (Upper)
11	Shield, Heat (Lower)
12	Cord, Power
13	Switch, Latch
14	WPW10339879 Whirlpool Wire Tie
15	Clip, Top Mtg.
16	Back, Main
17	Rod, Light
18	Bumper, Front (4)
20	Switch, Door
21	Bracket, Door Switch
22	Shield, Heat
23	Clip, Wire
24	Flue Box
25	Gasket, Flue
26	Knob, Latch
27	Latch, Door
28	Handle, Latch
29	Plate, Cover
30	Burner Box
31	Shield, Main Front
32	Shield, Latch
33	Shield, Heat Baffle
34	Cam Plate
34	Panel, Side (Almond RH)
34	Panel, Side (Almond LH)
34	Panel, Side (White RH)
34	Panel, Side (White LH)
35	Screw, Leveler (4)
36	Support, Oven Bottom
37	Fastener, Cord
38	Insulation, Oven Back
39	Oven Bottom
41	Probe, Oven Temp
42	Spacer, (2)
43	Shield, Latch
44	Screw, Latch
46	Insulation, Front
47	Insulation, Oven Wrapper
48	Bracket, Anti-Tip
49	Glide, Drawer
