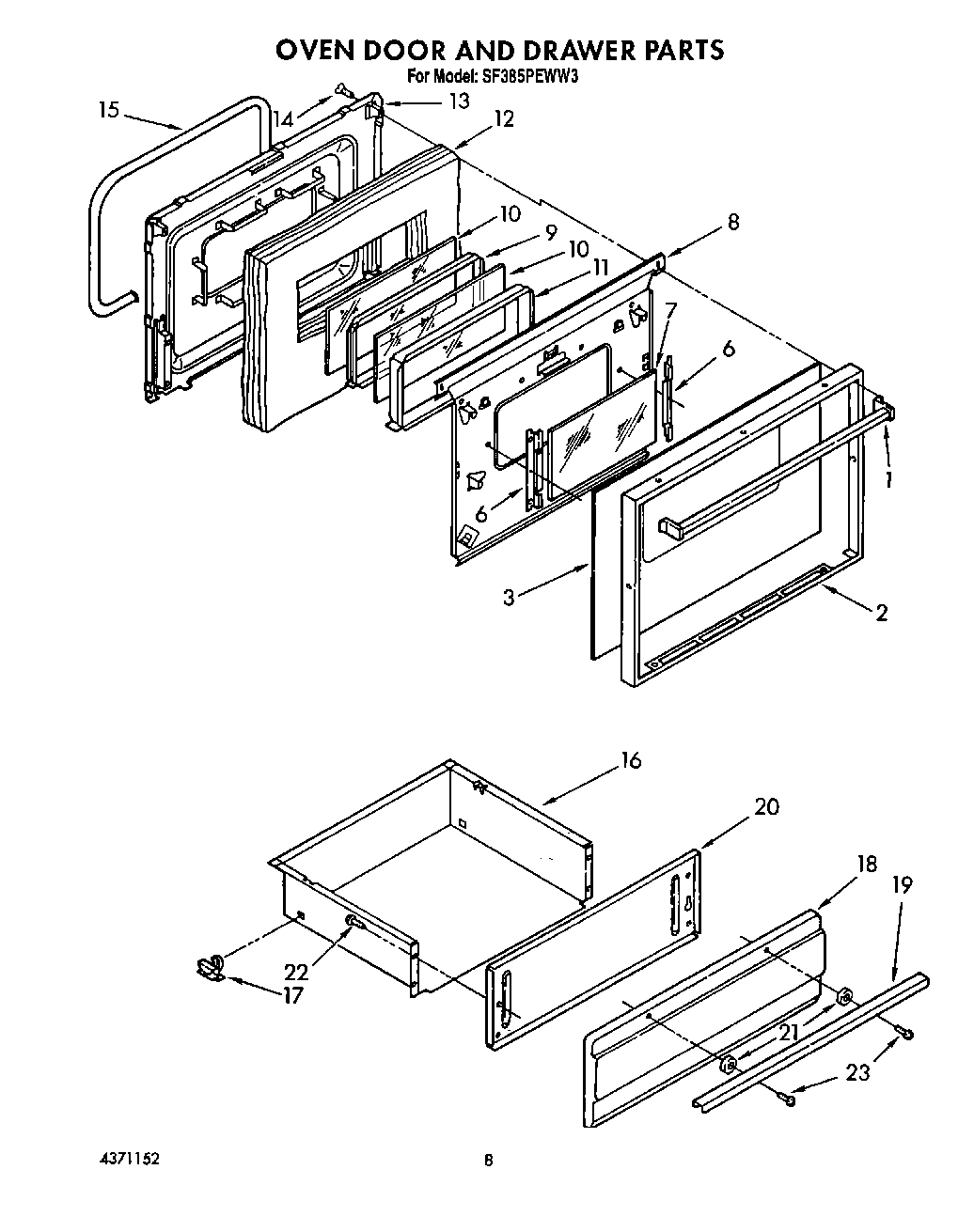

SF385PEWW3 08 – OVEN DOOR AND DRAWER

SF385PEWW3 08 – OVEN DOOR AND DRAWER

Written by

in

SF385PEWW3 08 – OVEN DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door
6	Bracket, Glass
7	Glass, Oven Door
8	Shield, Heat
9	Spacer, Glass
10	Glass, Heat Barrier (2)
11	Collar, Glass
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Rope
15	Seal, Oven Door
16	Drawer, Utility
17	Guide, Drawer
18	Panel, Drawer
19	Handle, Utility Drawer
20	Shield, Panel
21	Spacer, Handle
22	WP302868 Whirlpool Screw
23	Screw, No.8x18x3/8 (4)
