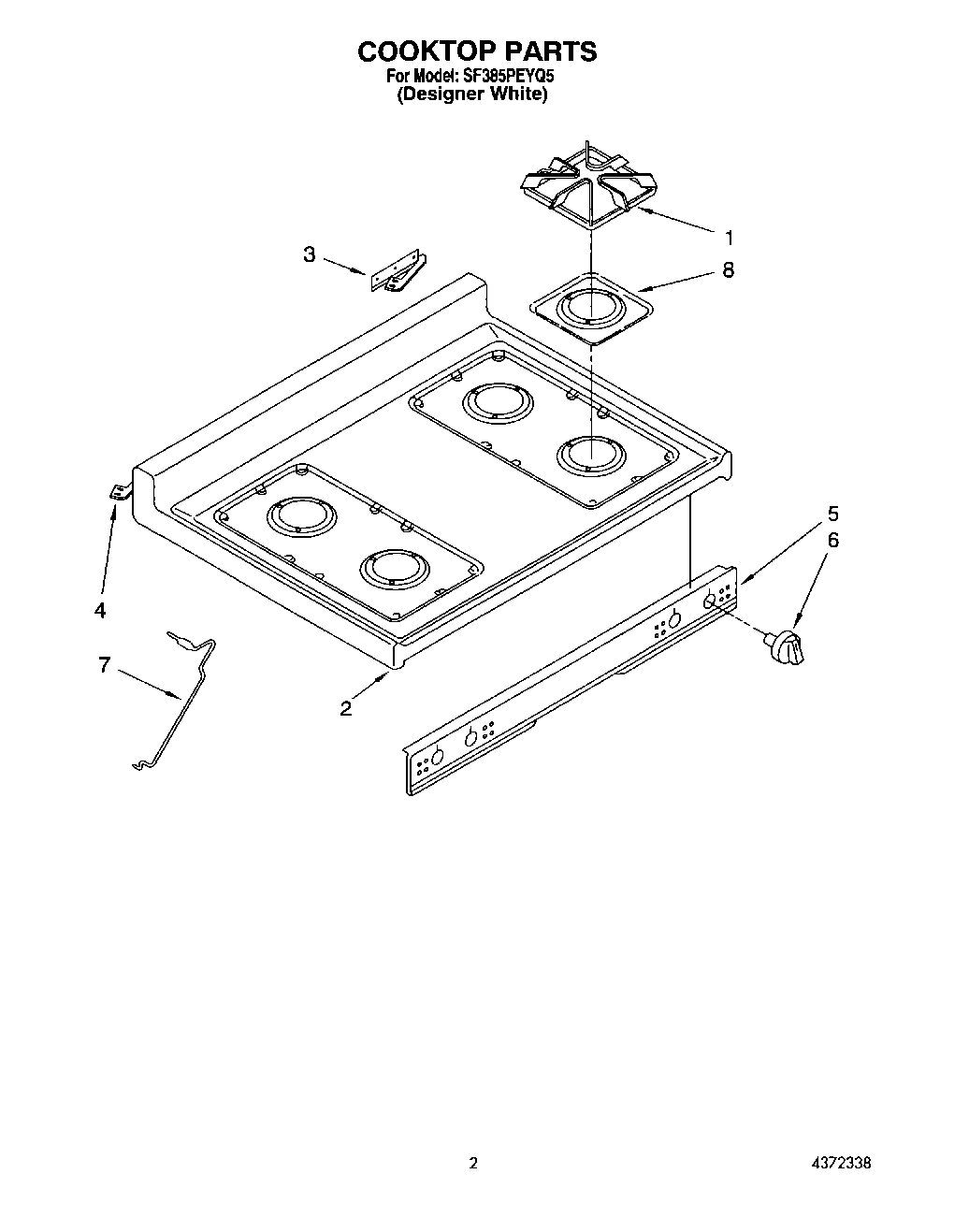

SF385PEYQ5 02 – COOKTOP

SF385PEYQ5 02 – COOKTOP

Written by

in

SF385PEYQ5 02 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support (2)
8Pan, Burner
