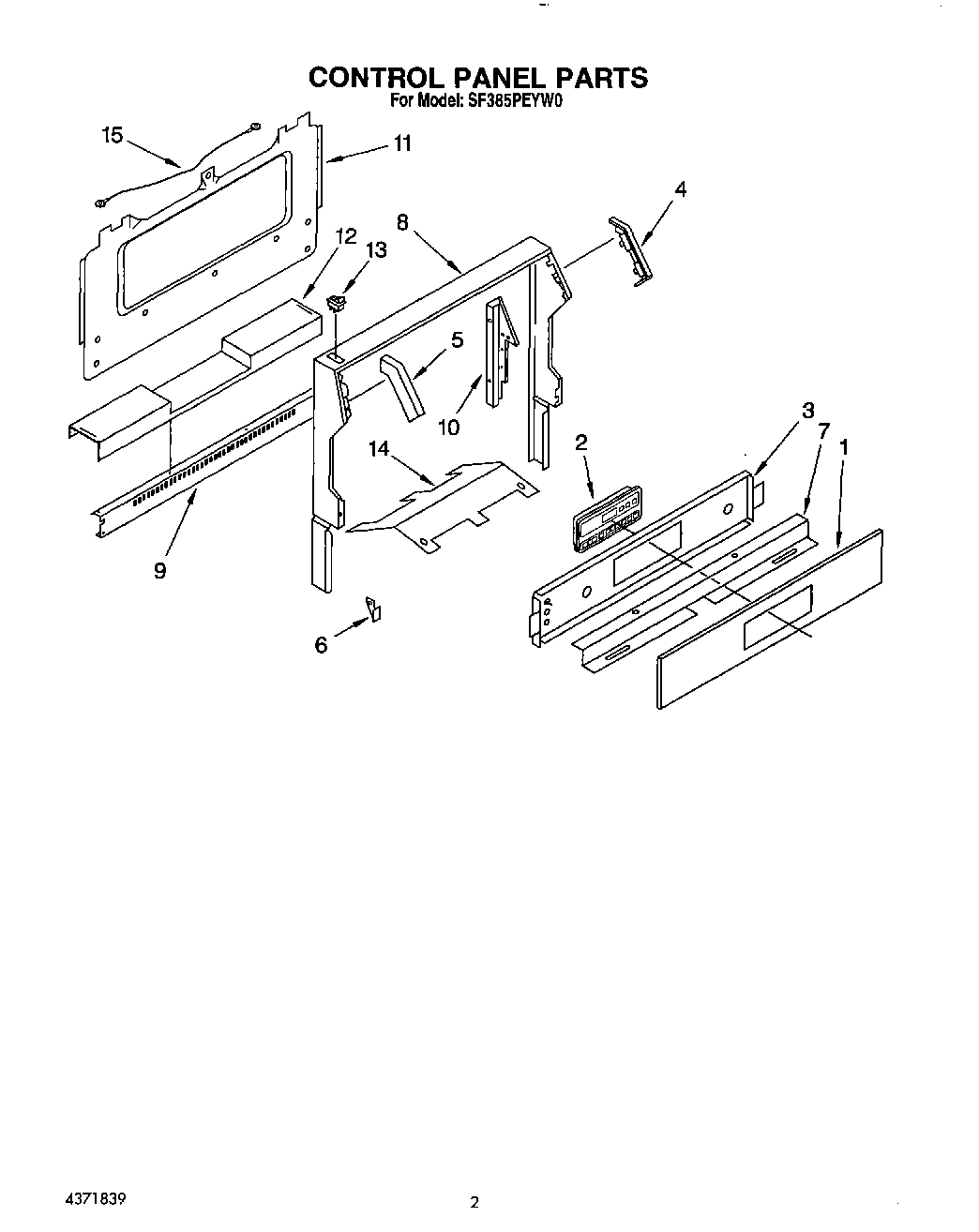

SF385PEYW0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	Control, Electronic Timer
3	Bracket, Timer
4	Cap, End (R.H.)
5	Cap, End (L.H.)
6	Cap, Filler
7	Retainer, Timer
8	Trim, Wrapper
9	Trim, Vent
10	Support, Control Panel (L.H.)
10	Support, Control Panel (R.H.)
11	Shield, Rear Wall
12	Deflector, Flue
13	WP4314961 Whirlpool Lite Switch
14	Shield, Inner Bkgd
15	Cable, Anti-Tip
