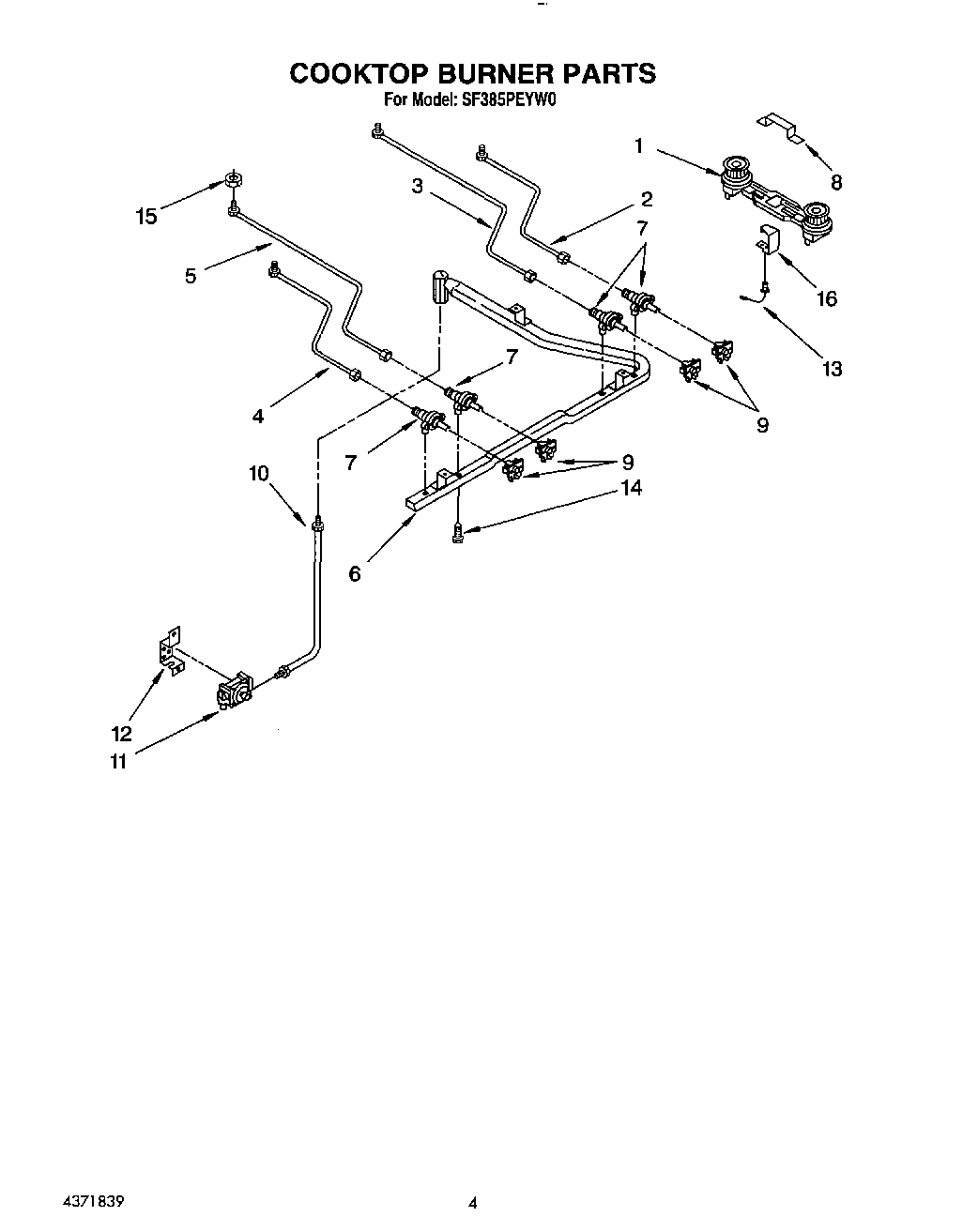

SF385PEYW0 04 – COOKTOP BURNER

Written by

Products

Position	Product
1	Burner, Double
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Pipe, Manifold
7	Valve, Top (4)
8	Bracket, Burner Mounting
9	Switch, Ignitor (4)
10	Tubing, Regulator To Manifold Pipe
11	Control, Regulator
12	Bracket, Regulator
13	Ignitor, Top Burner
14	WP3186217 Whirlpool Screw
15	Nut, Special (4)
16	Retainer, Ignitor
