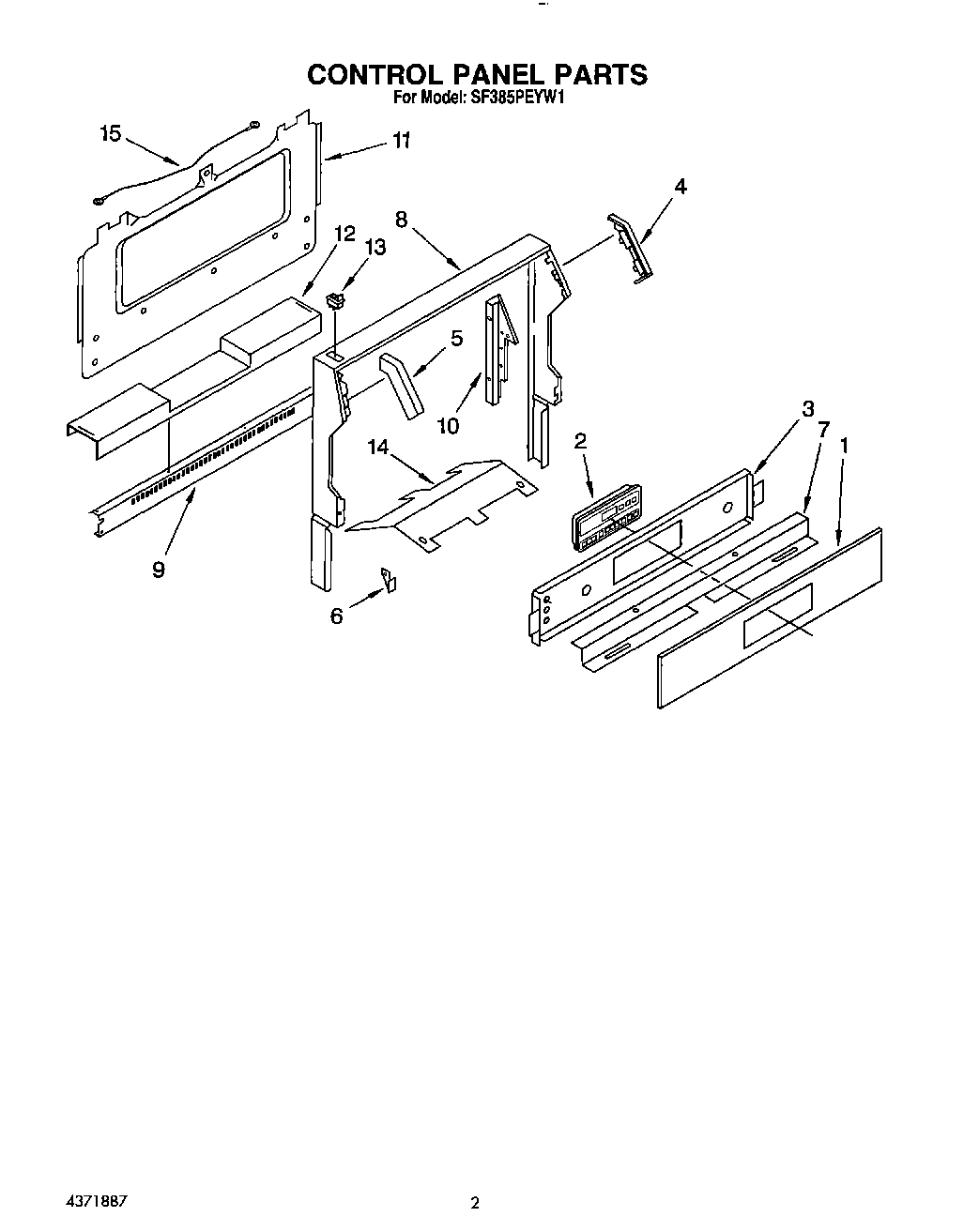

SF385PEYW1 02 – CONTROL PANEL

SF385PEYW1 02 – CONTROL PANEL

Written by

in

SF385PEYW1 02 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
1Panel, Control
2Control, Electronic Timer
2Control, Electronic Timer
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Cap, Filler
6Cap, Filler
7Retainer, Timer
8Trim, Wrapper
8Trim, Wrapper
9Trim, Vent
9Trim, Vent
10Support, Control Panel (R.H.)
10Support, Control Panel (L.H.)
11Shield, Rear Wall
12Deflector, Flue
13WP4314961 Whirlpool Lite Switch
14Shield, Inner Bkgd
15Cable, Anti-Tip
