SF385PEYW1 03 – COOKTOP

SF385PEYW1 03 – COOKTOP

Written by

in

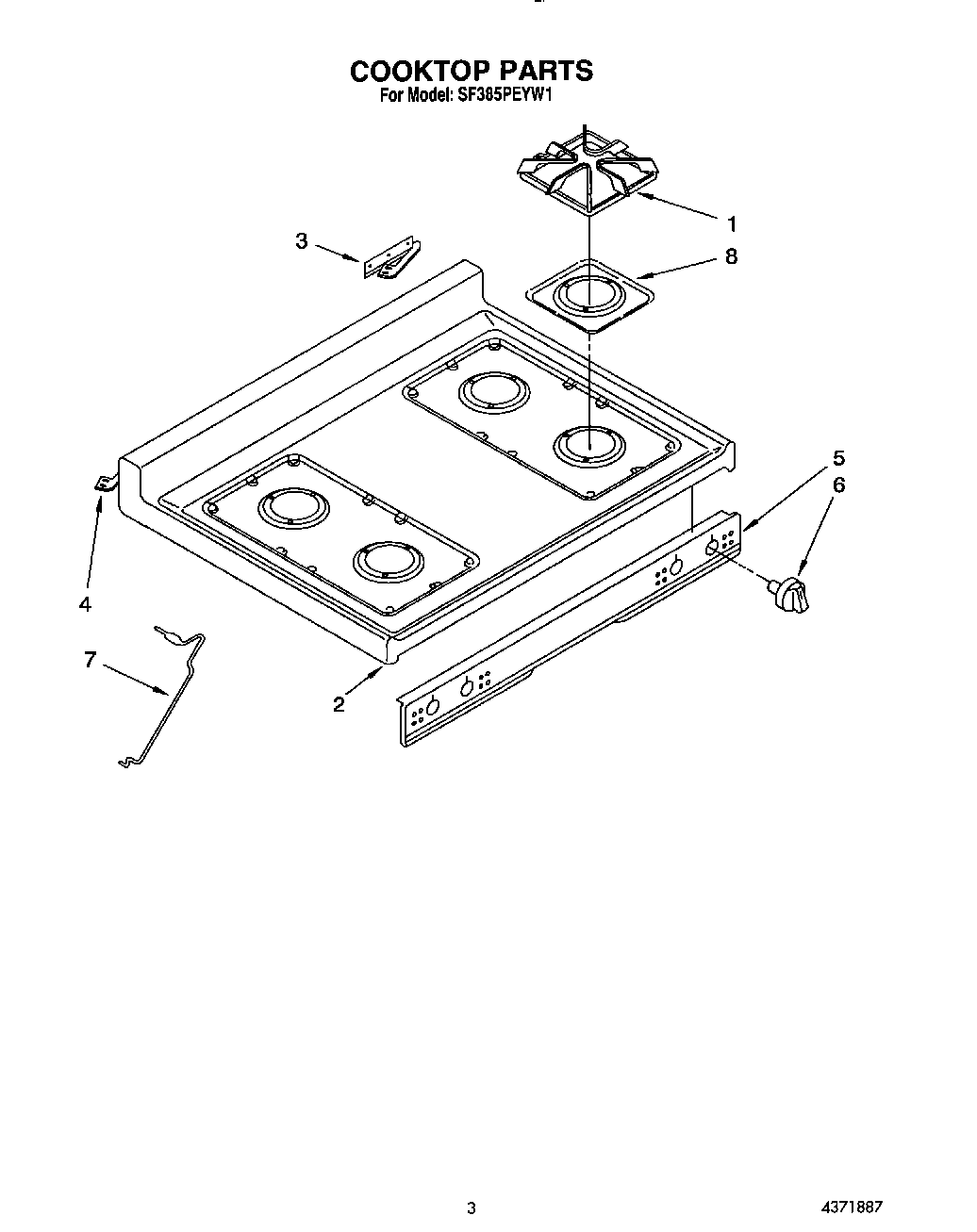

SF385PEYW1 03 – COOKTOP

Products

Position	Product
1	Grate (4)
1	Grate (4)
2	Top, Main (Almond)
2	Top, Main
3	Bracket, Hinge (Right Side)
4	Bracket, Hinge (Left Side)
5	Panel, Manifold
5	Panel, Manifold
6	Knob, Control (4)
6	Knob, Control (4)
7	Rod, Support (2)
8	Pan, Burner
8	Pan, Burner (4)
