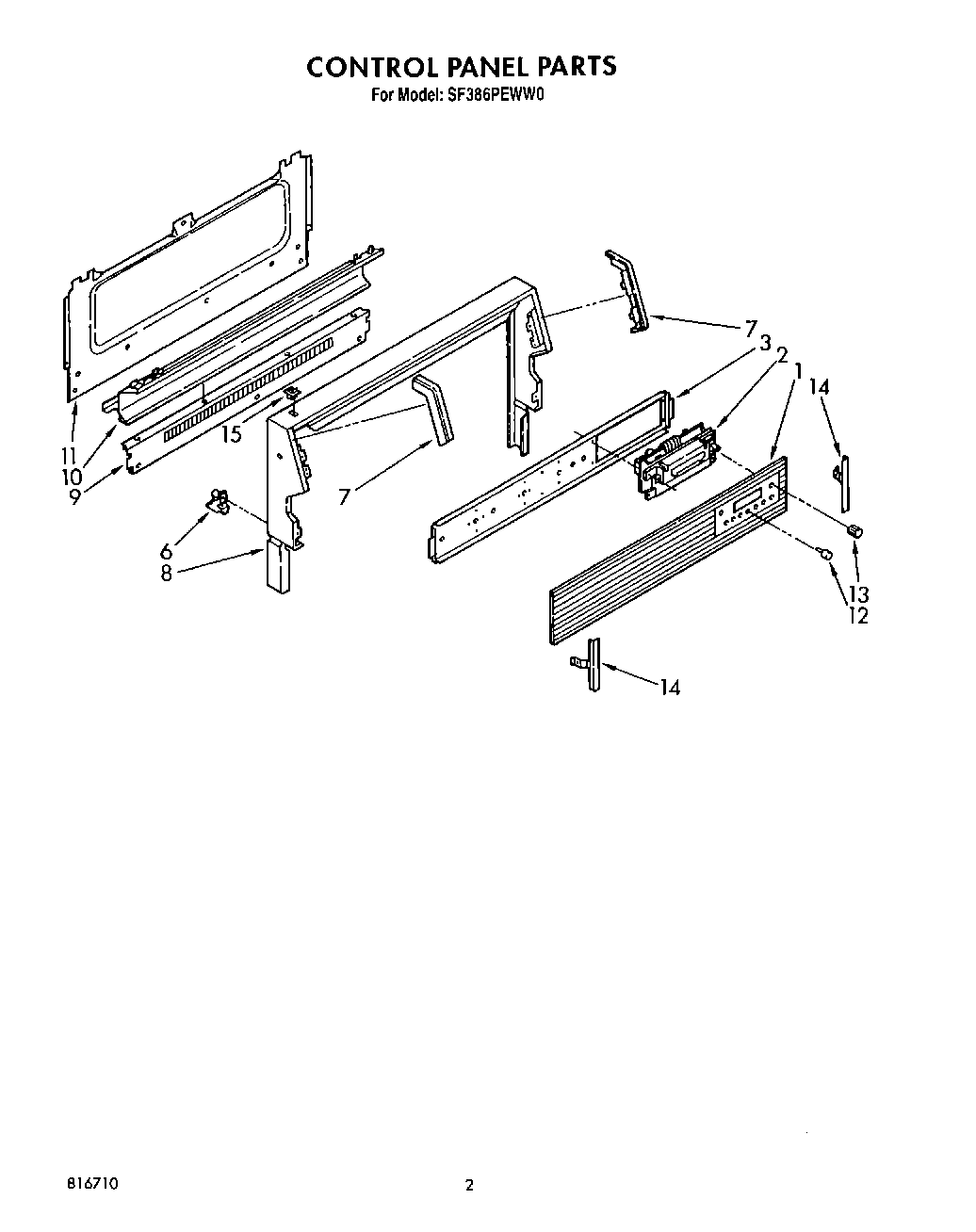

SF386PEWW0 02 – CONTROL PANEL

SF386PEWW0 02 – CONTROL PANEL

Written by

in

SF386PEWW0 02 – CONTROL PANEL

Products

PositionProduct
1Glass, Backguard
2Electronic Control
3Plate, Instrument Mounting
6Brace, Backguard
7End Cap (Left)
7End Cap (Right)
8Trim, Wrapper
9Trim, Vent
10Trim, Splasher (White)
11Shield, Rear Wall
12Knob, Controls (9) (White)
13Knob, Oven
14Retainer, Glass
15WP4314961 Whirlpool Lite Switch
