SF386PEWW0 03 – COOKTOP

SF386PEWW0 03 – COOKTOP

Written by

in

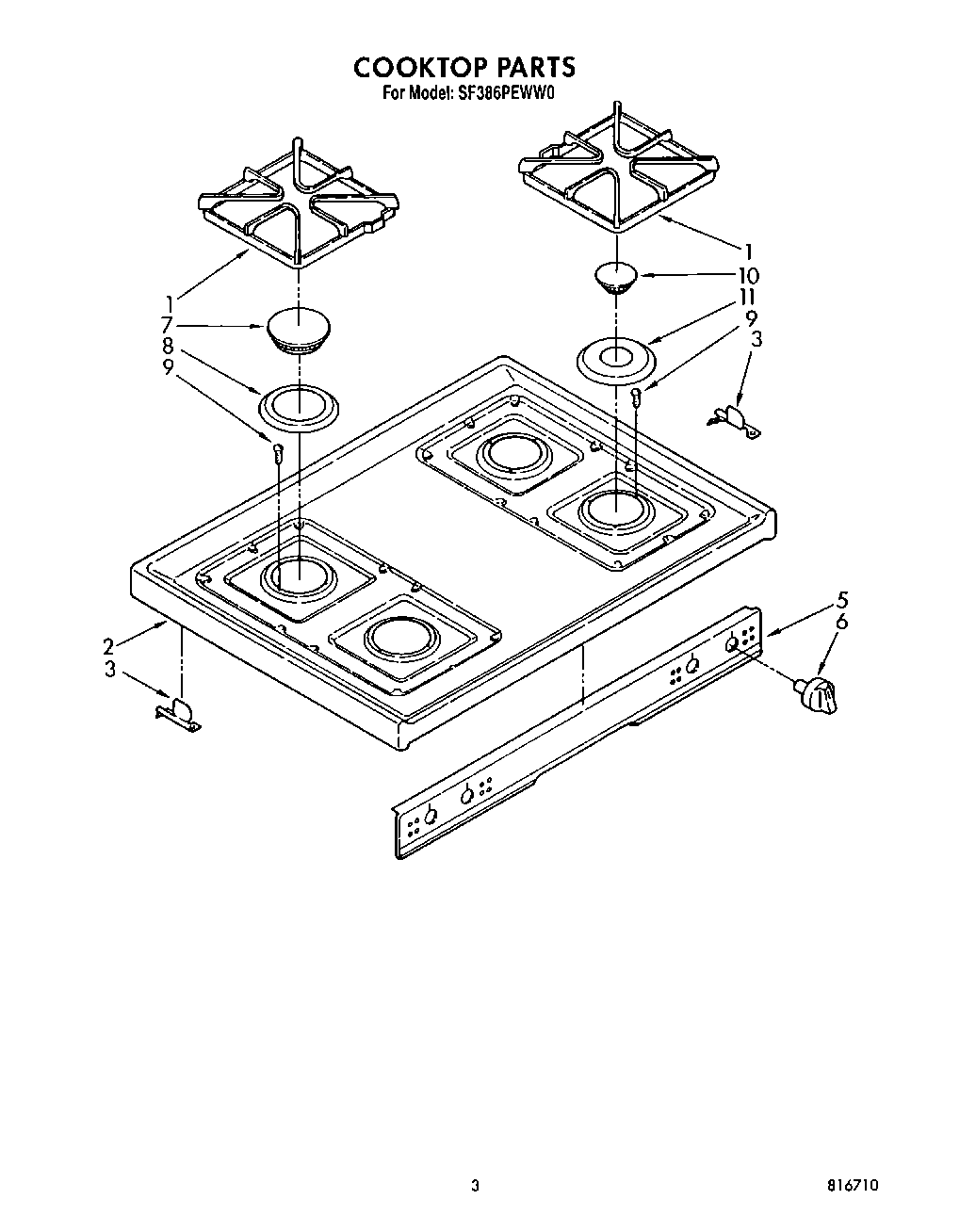

SF386PEWW0 03 – COOKTOP

Products

PositionProduct
1Grate
2Top, Main (White)
3Bracket, Hinge RH
3Bracket, Hinge LH
5Panel, Manifold
6Knob, Control (4)
7Cap, Burner (Lg)
8Ring, Trim (Lg)
9Screw, Gas Burner Mounting (12)
10Cap, Burner (Sm)
11Ring, Trim (Sm)
