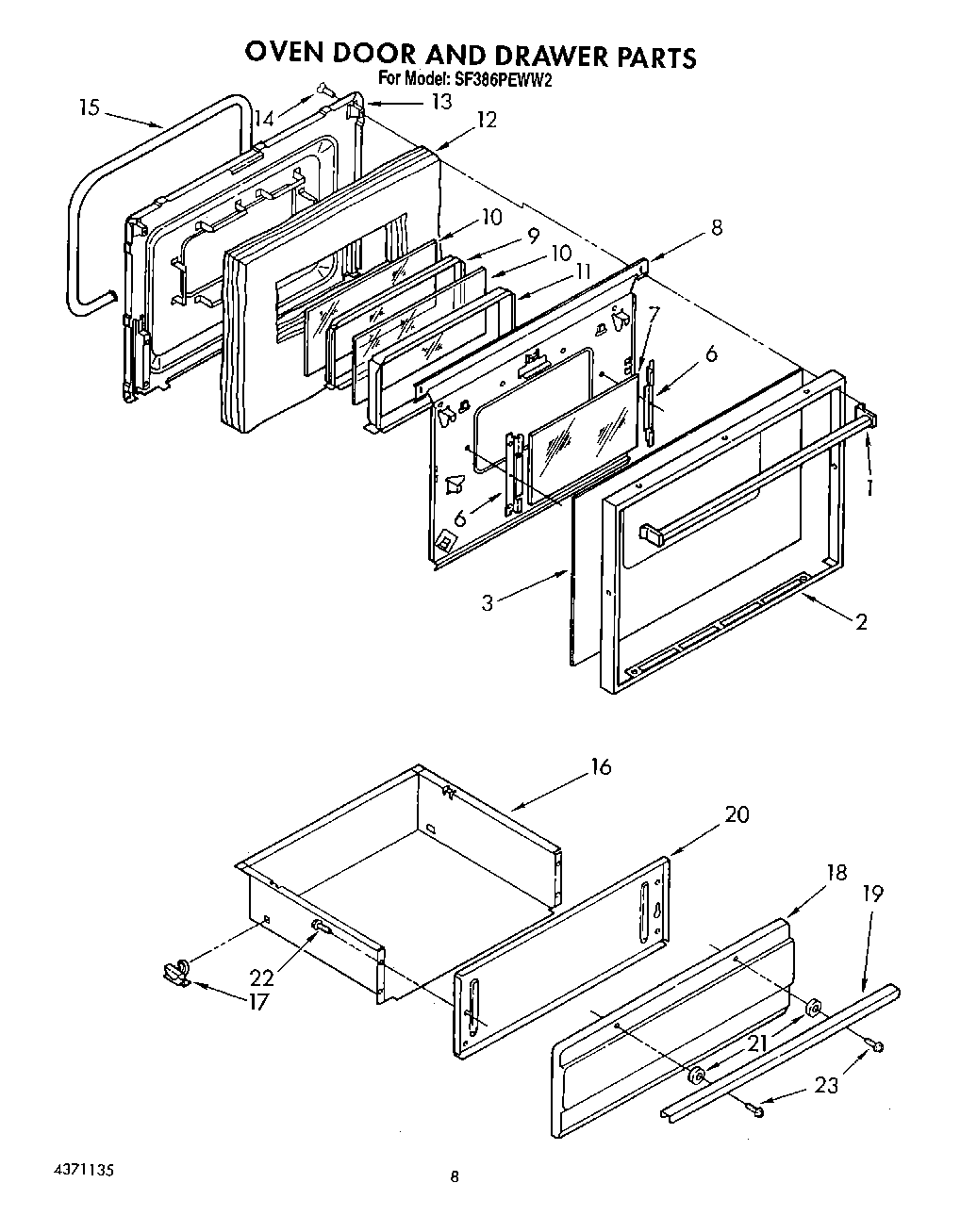

SF386PEWW2 07 – OVEN DOOR AND DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Oven Door
3Glass, Door
6Bracket, Glass
7Glass, Heat Barrier (2)
8Shield, Heat
9Spacer, Glass
10Glass, Oven Door
11Collar, Glass
12Insulation, Door
13Liner, Oven Door
14Screw, Handle
15Seal, Oven Door
16Drawer, Utility
17Guide, Drawer
18Panel, Drawer (White)
19Handle, Broiler Drawer
20Shield, Panel
21Spacer, Handle
22WP302868 Whirlpool Screw
23Screw, No.8x18x3/8 (4)
