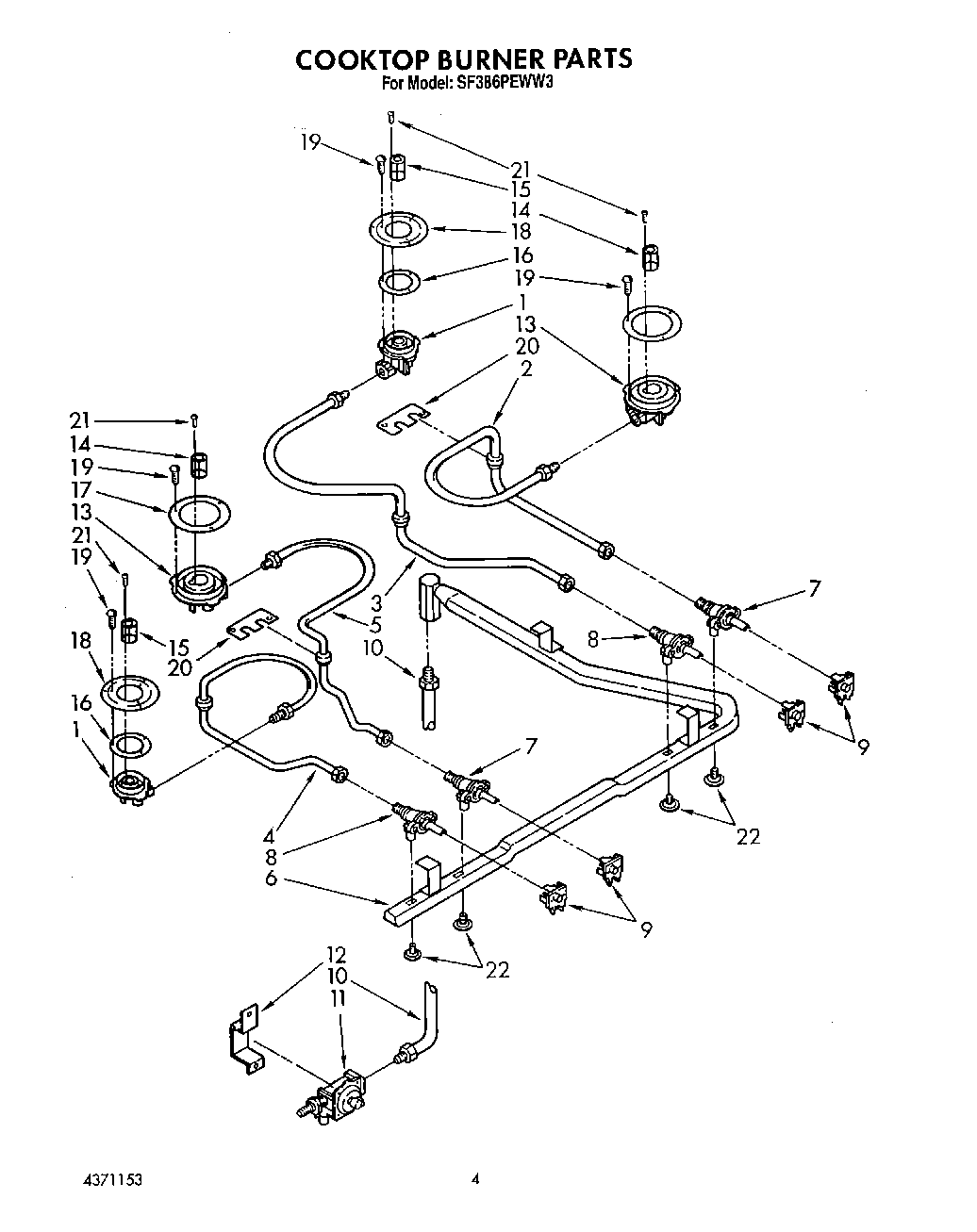

SF386PEWW3 03 – COOKTOP BURNER

Products

PositionProduct
1Burner, (Small) See Page 5 For Further Breakdown.
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top Burner (LG)
8Valve, Top Burner (SM)
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Knob, Latch
12Bracket, Regulator
13Burner, (Large) See Page 5 For Further Breakdown
14Shutter, Burner Air (Use With Large Burner)
15Shutter, Burner Air (Use With Small Burner)
16Seal, Burner (Small)
17Seal, Burner (Large)
18Plate, Burner Mounting (2)
19Screw, Mounting Plate To Burner
20Plate, Burner
21Screw, Burner
22Screw, Valve To Manifold Pipe (8) (RF & RR)
