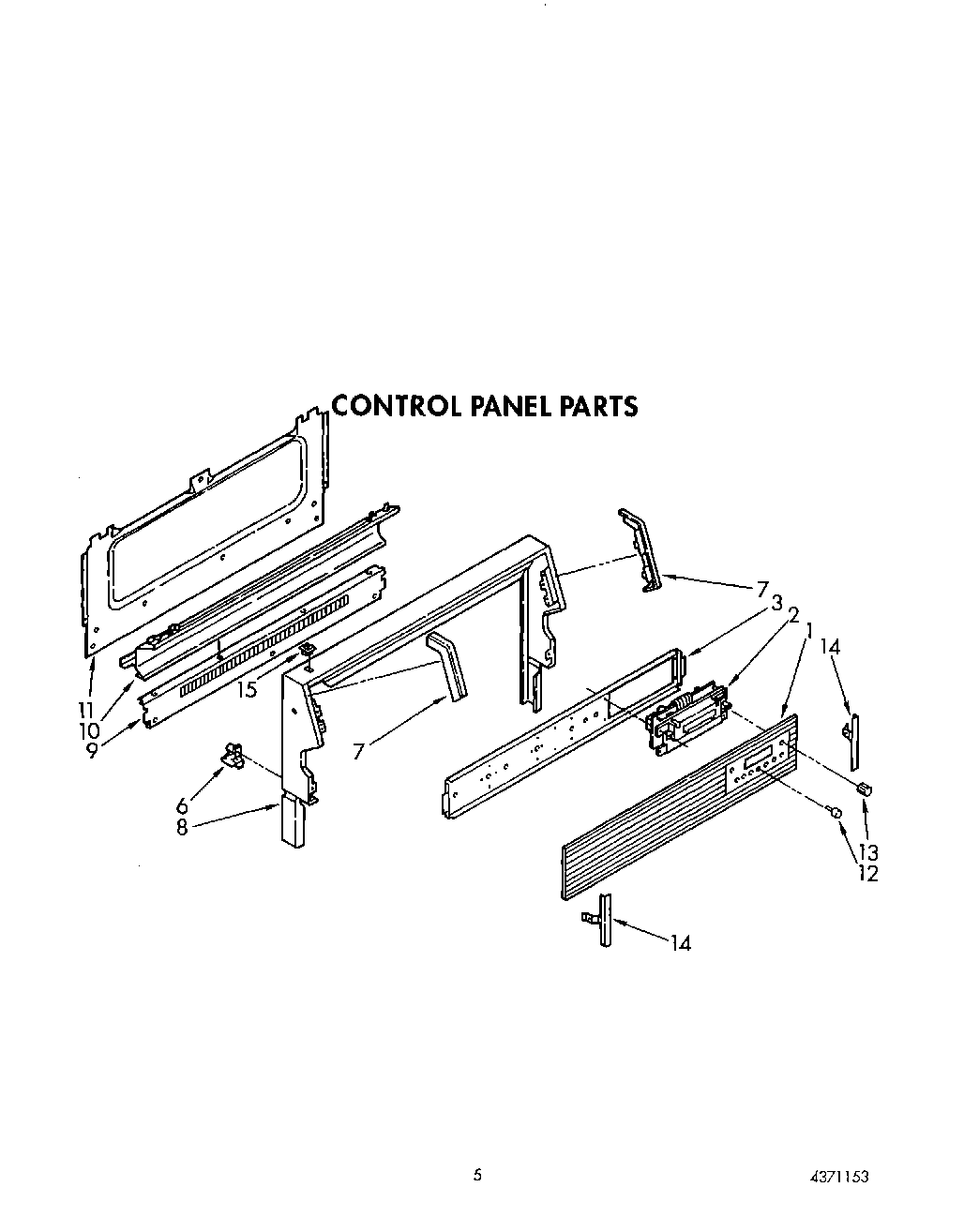

SF386PEWW3 04 – CONTROL PANEL

SF386PEWW3 04 – CONTROL PANEL

Written by

in

SF386PEWW3 04 – CONTROL PANEL

Products

Position	Product
1	Glass, Backguard
2	Electronic Control
3	Plate, Instrument Mounting
6	Brace, Backguard
7	End Cap (Left)
7	End Cap (Right)
8	Trim, Wrapper
9	Trim, Vent
10	Trim, Splasher (White)
11	Shield, Rear Wall
12	Knob, Controls (9) (White)
13	Knob, Oven
14	Retainer, Glass
15	WP4314961 Whirlpool Lite Switch
