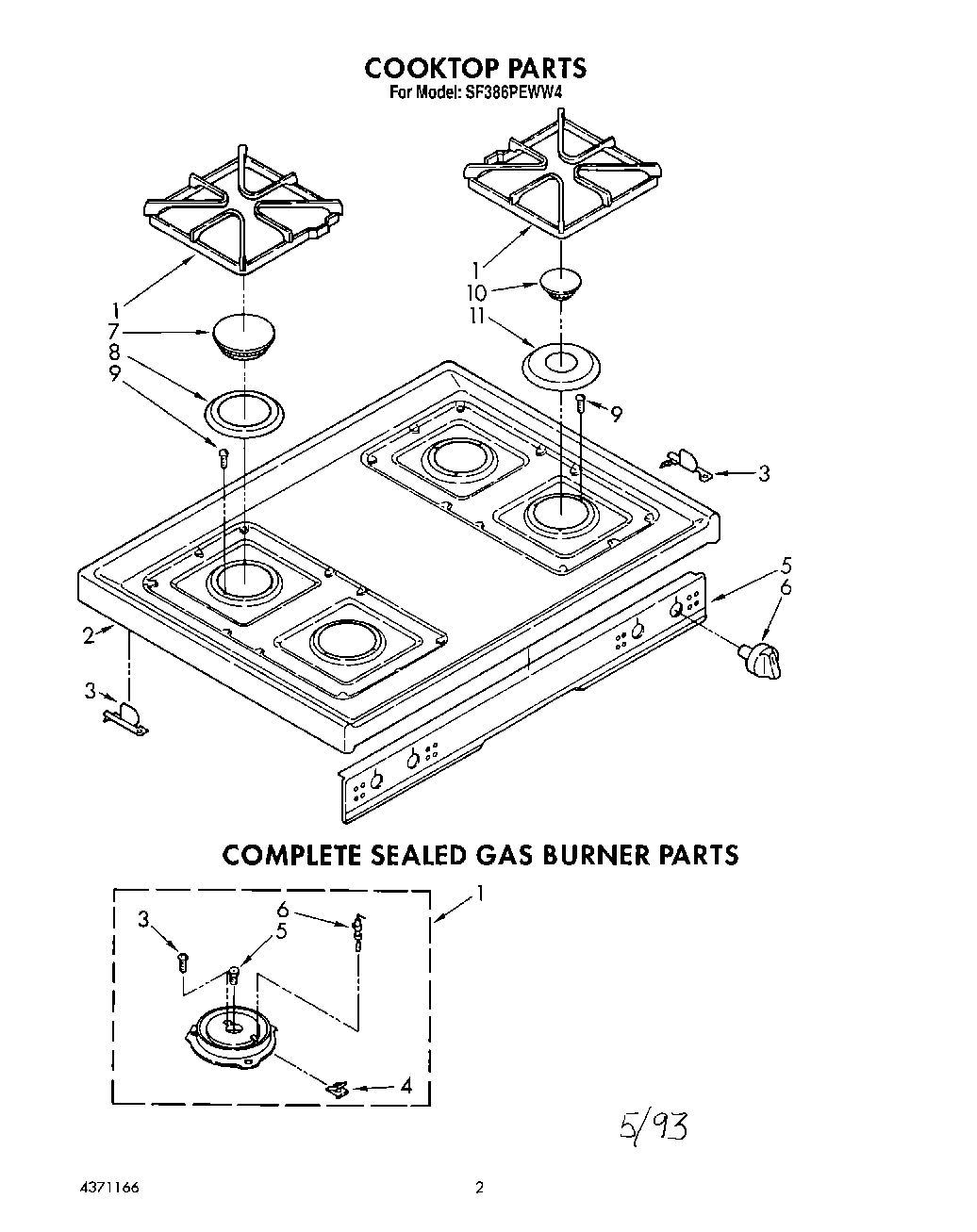

SF386PEWW4 01 – COOKTOP, COMPLETE SEALED GAS BURNER

Products

PositionProduct
1Burner, (Large) See Page 5 For Further Breakdown
1Grate
1Burner, (Small) See Page 5 For Further Breakdown.
2Top, Main (White)
3Bracket, Hinge RH
3Bracket, Hinge LH
3Screw, Burner
4Clip, Ignitor
5Orifice
5Orifice, Burner (Use With Small Burner)
5Panel, Manifold
6Ignitor
6Knob, Control (4)
7Cap, Burner (Lg)
8Ring, Trim (Lg)
9Screw, Gas Burner Mounting (12)
10Cap, Burner (Sm)
11Ring, Trim (Sm)
