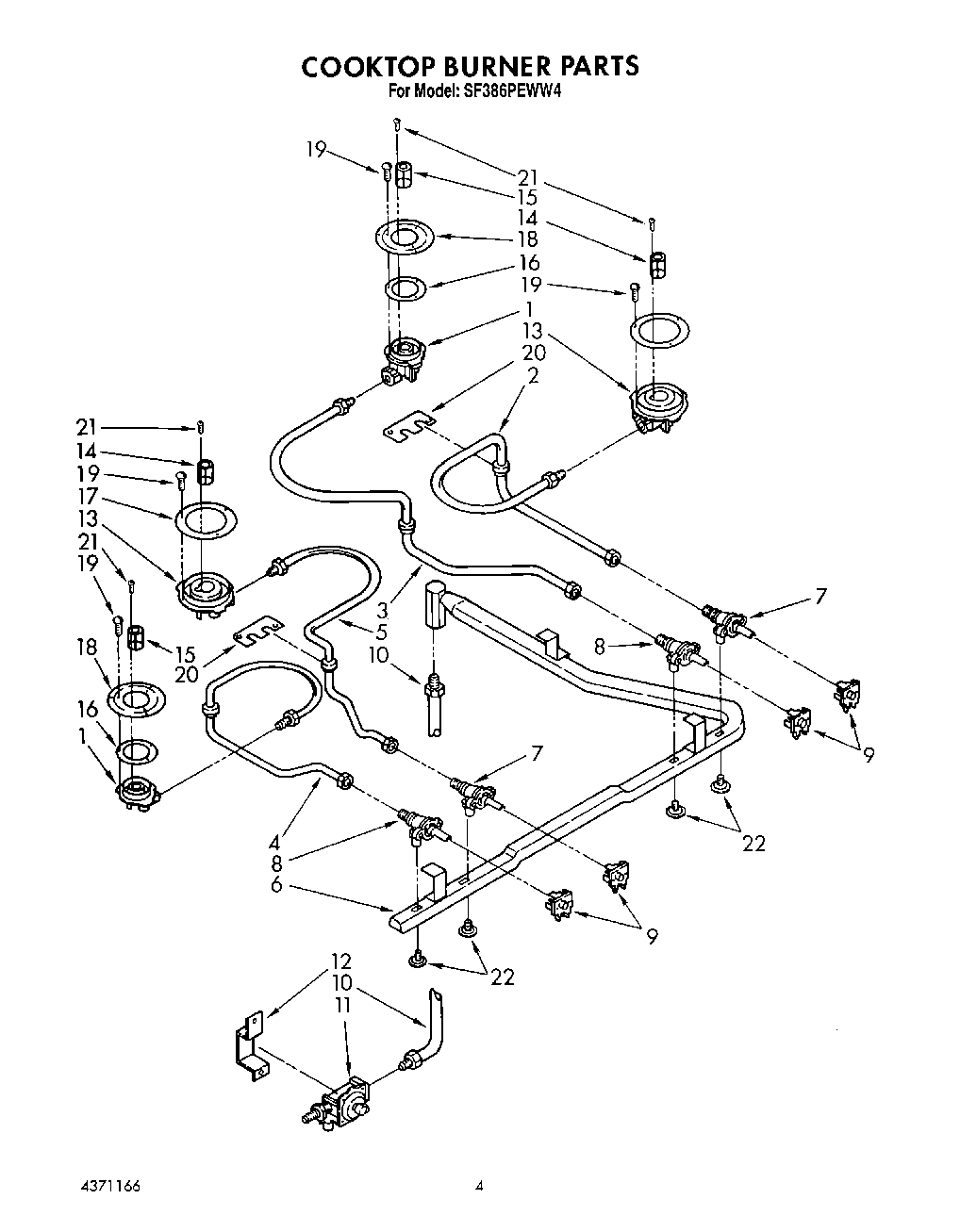

SF386PEWW4 03 – COOKTOP BURNER

Products

Position	Product
1	Burner, (Small) See Page 5 For Further Breakdown.
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Pipe, Manifold
7	Valve, Top Burner (LG)
8	Valve, Top Burner (SM)
9	Switch, Ignitor (4)
10	Tubing, Regulator To Manifold Pipe
11	Knob, Latch
12	Bracket, Regulator
13	Burner, (Large) See Page 5 For Further Breakdown
14	Shutter, Burner Air (Use With Large Burner)
15	Shutter, Burner Air (Use With Small Burner)
16	Seal, Burner (Small)
17	Seal, Burner (Large)
18	Plate, Burner Mounting (2)
19	Screw, Mounting Plate To Burner
20	Plate, Burner
21	Screw, Burner
22	Screw, Valve To Manifold Pipe (8) (RF & RR)
