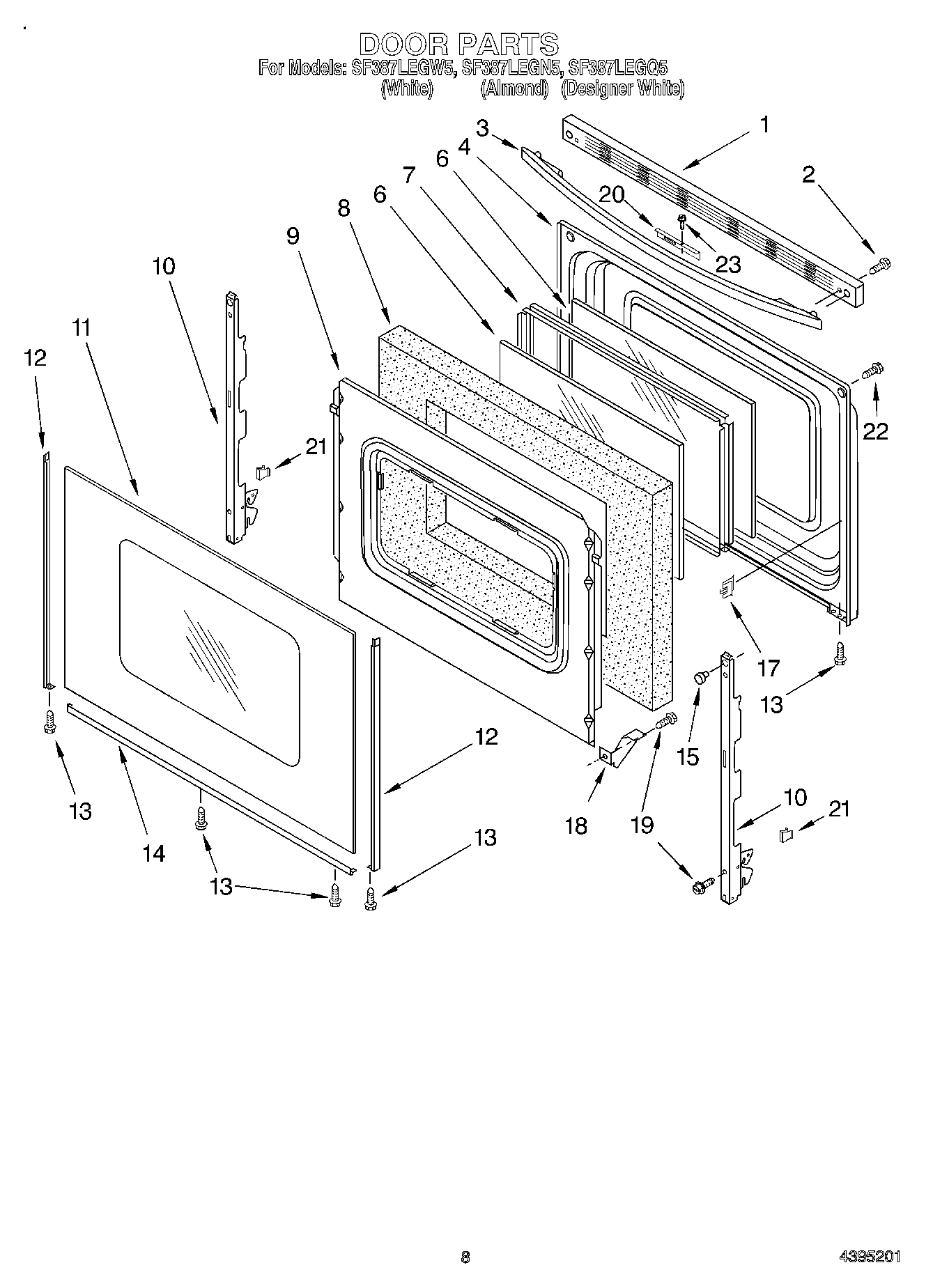

SF387LEGN5 06 – DOOR, OPTIONAL

SF387LEGN5 06 – DOOR, OPTIONAL

Written by

in

SF387LEGN5 06 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP8053834 Whirlpool Door Glass
11	WPW10118455 Whirlpool Door Glass Assembly
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184858 Whirlpool Door Trim
15	238614 Whirlpool Bumper Hinge
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	3196696 Whirlpool Clip
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Grease
23	WPL 8272466
23	3196896 Whirlpool Clip
23	WPL 8053527
23	WPL 8054085
23	WPL 8054086
23	WPL 8273341
23	WP3400832 Whirlpool Screw
23	1
23	Wire (14 Ga. 200 c Brown)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	285006 Whirlpool Spray
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	16515 Whirlpool Clip
23	3400964 Whirlpool Oven Clip
23	814381 Whirlpool Pin
23	350930 Whirlpool White Spray Paint
