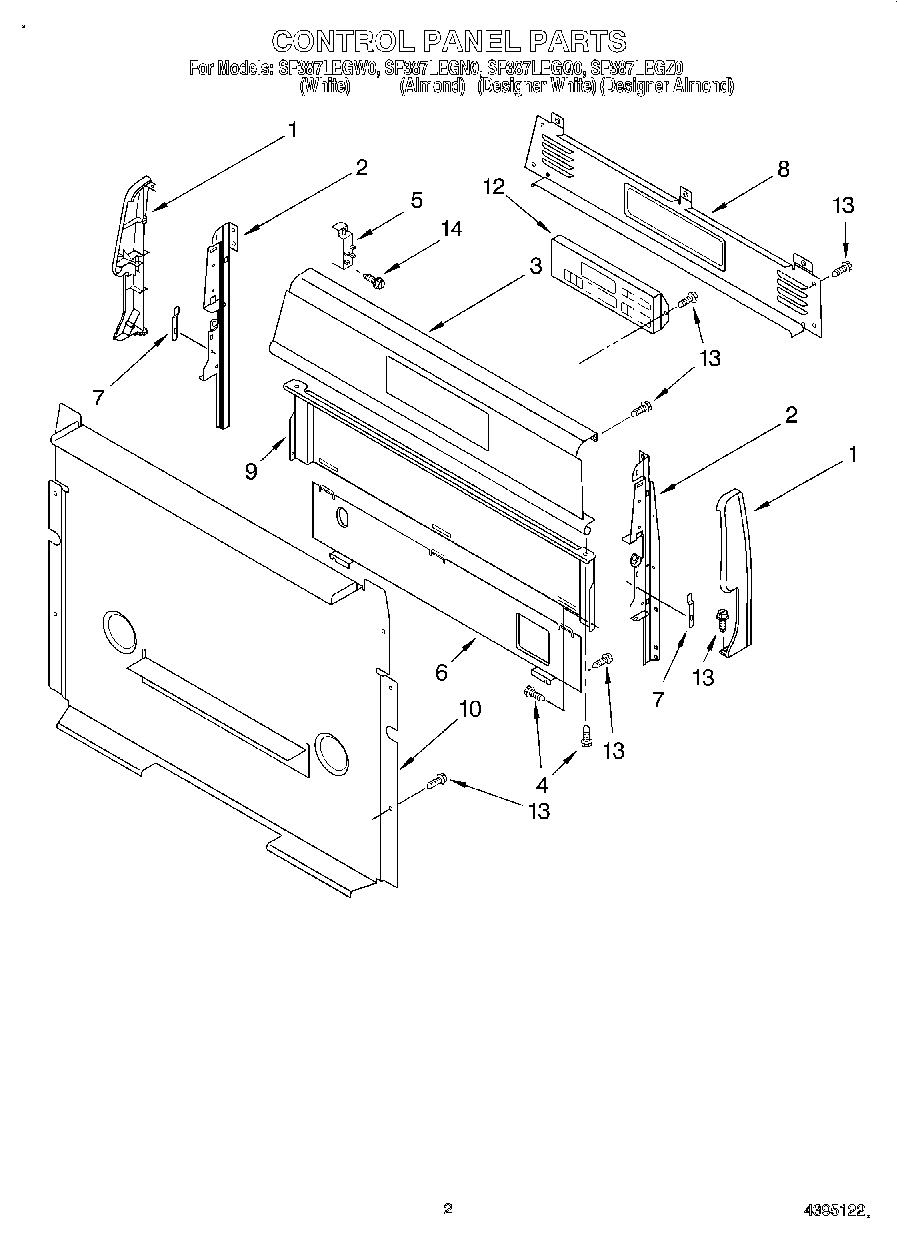

SF387LEGZ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Black Left Hand)
1Endcap, Right Hand (Black)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
1Endcap (Almond Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (White)
3Panel, Backguard (Black)
3Panel, Backguard (Almond)
4Screw
5WP8053421 Whirlpool Oven Spark Module
68053505 Whirlpool Oven Shield
73196200 Whirlpool Clip
8Cover, Upper
9Shield, Heat
10Cover, Lower
12Control, Range (Black)
12Control, Range (White)
12Control, Range (Almond)
13SCREW
14WPY706189 Whirlpool Stove Screw
