SF387LEGZ0 06 – DOOR, LIT/OPTIONAL

SF387LEGZ0 06 – DOOR, LIT/OPTIONAL

Written by

in

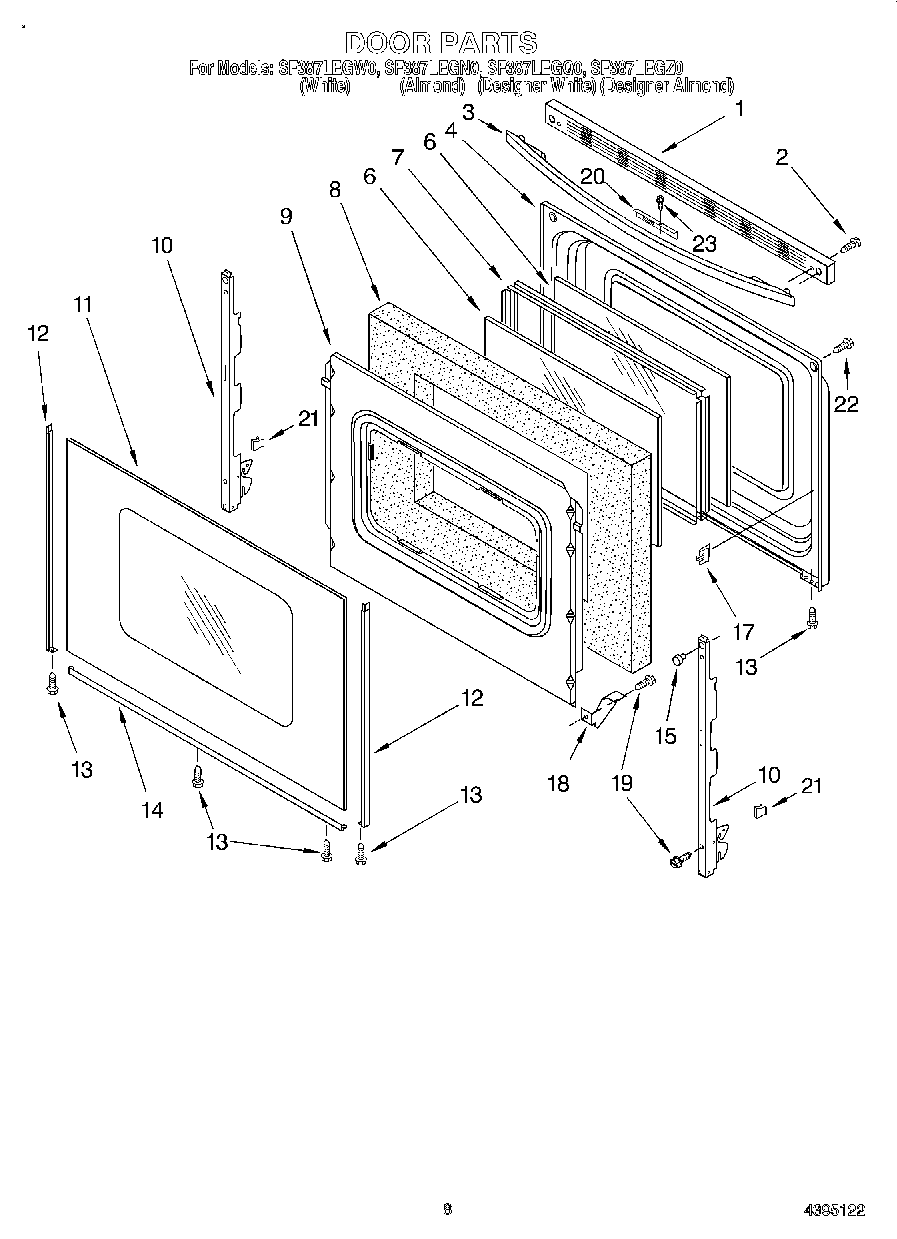

SF387LEGZ0 06 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Clip
	814381 Whirlpool Pin
	3400964 Whirlpool Oven Clip
	WPL 3196916
	16515 Whirlpool Clip
	Literature (Installation, Instructions (Template))
	WPL 8053527
	WPL LIT8053366
	Harness, Igniter (Incl. Switches)
	Safer Cooking Tips
	WPL LIT3196061
	WPL LIT8053426
1	Trim, Door Top (Almond)
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
6	WP8053948 Whirlpool Door Glass
7	WPW10316950 Whirlpool Window Frame
8	WPW10278991 Whirlpool Insulation
9	W11539580 Whirlpool Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WPW10118455 Whirlpool Door Glass Assembly
11	Glass, Outer Door (Almond)
11	WP8053834 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
15	238614 Whirlpool Bumper Hinge
17	Clip, Glass (4)
18	WP3196794 Whirlpool Glass Bracket
19	WP3196175 Whirlpool Screw
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP179051 Whirlpool Screw
23	1
23	WP3400832 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	Golden Harvest
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	WPL 799832
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	WPL 72112
23	Platinum (Uncut)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	72113 Whirlpool Touch-Up Paint
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350930 Whirlpool White Spray Paint
23	WPW10208653 Whirlpool Insulation
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Paint, Spray 13 Oz. (Avocado)
23	paint, spray 13 oz. (coffee)
23	Paint, Touch-Up 1/2 Oz. (Coffee)
23	72109 Whirlpool Dacor Avocado Touch-Up Paint
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	350956 Whirlpool Spray Assembly
