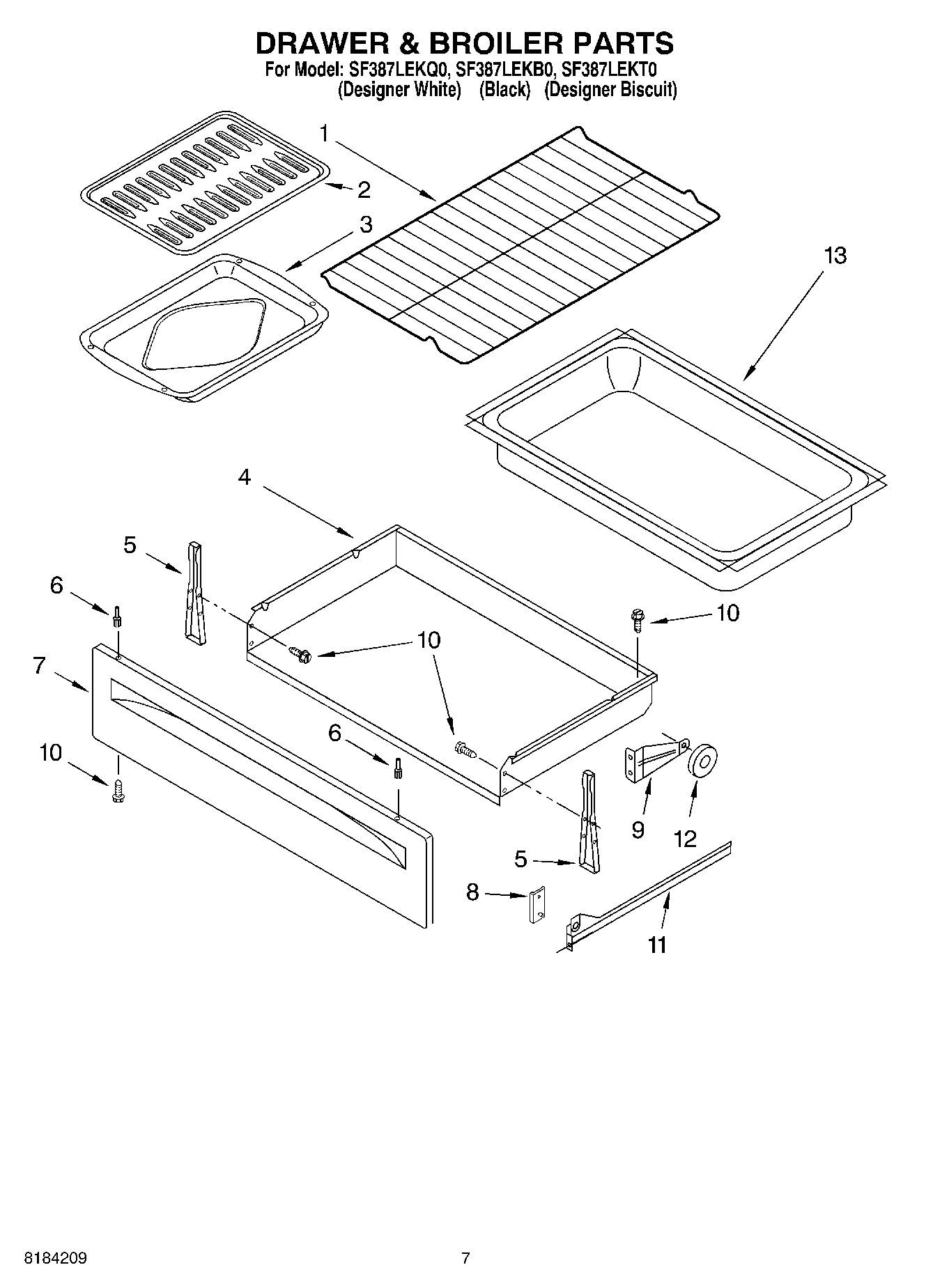

SF387LEKB0 05 – DRAWER AND BROILER

SF387LEKB0 05 – DRAWER AND BROILER

Written by

in

SF387LEKB0 05 – DRAWER AND BROILER

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5BRKT-MNTG
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
6WP3196814 Whirlpool Rivet
7PANEL, DRAWER FRONT (BISCUIT)
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
8Spacer, Glide
9Bracket, Roller
10WP3400832 Whirlpool Screw
11Rail, Drawer (Right Hand)
11Rail, Drawer (Left Hand)
12814229 Whirlpool Primary Roller
13Liner, Drawer
