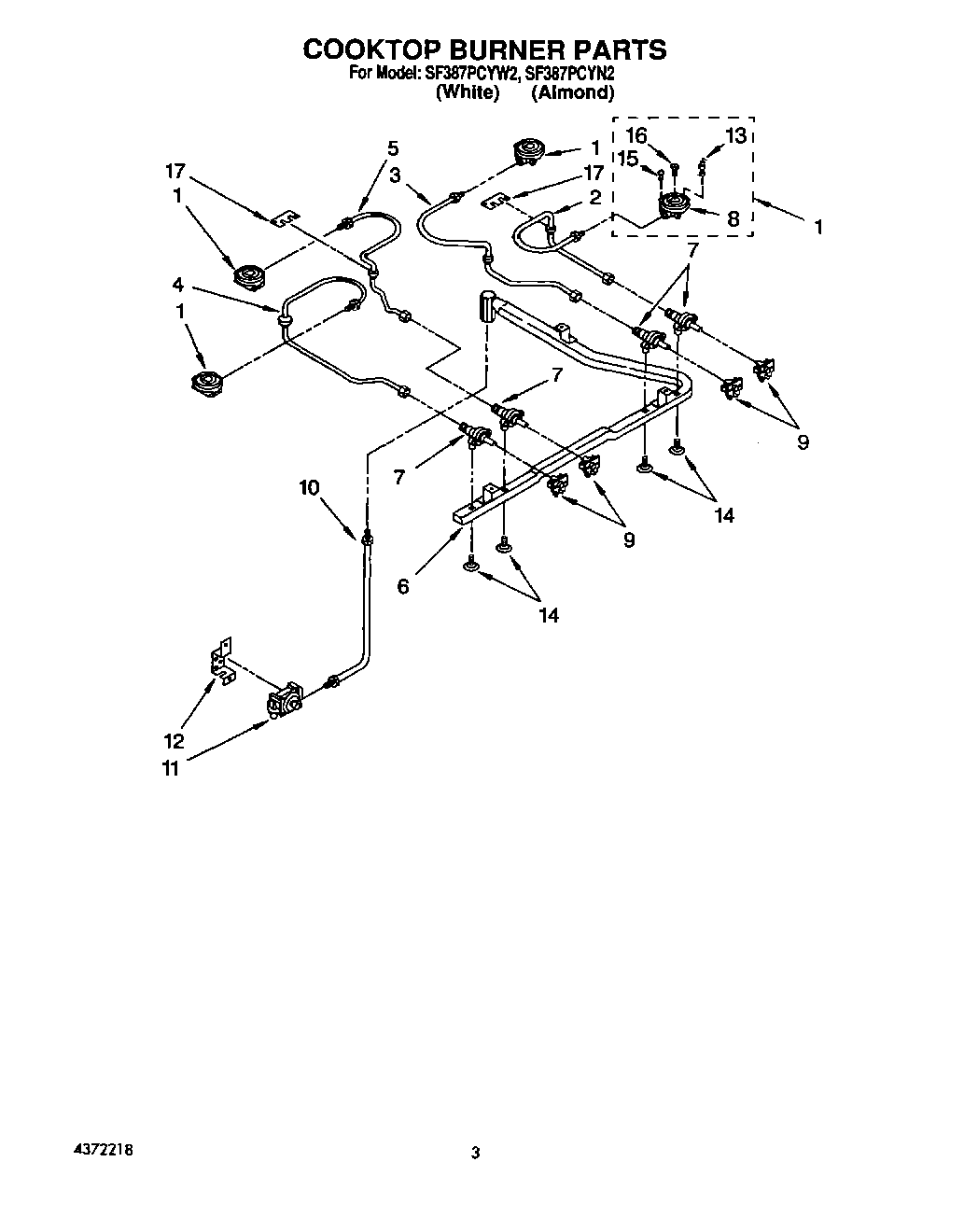

SF387PCYN2 03 – COOKTOP BURNERadmin2025-04-26T13:10:28+00:00SF387PCYN2 03 – COOKTOP BURNER
Products
| Position | Product |
|---|
| 1 | Burner, (4) |
| 2 | Tubing, Burner (RF) |
| 3 | Tubing, Burner (RR) |
| 4 | Tubing, Burner (LF) |
| 5 | Tubing, Burner (LR) |
| 6 | Pipe, Manifold |
| 7 | Valve, Top (4) |
| 8 | Head, Burner |
| 9 | Switch, Ignitor (4) |
| 10 | Tubing, Regulator To Manifold Pipe |
| 11 | Control, Regulator |
| 12 | Bracket, Regulator |
| 13 | Bracket & Electrode |
| 14 | WP3186217 Whirlpool Screw |
| 15 | Screw, Electrode |
| 16 | Orifice |
| 17 | Plate, Burner |
| 17 | Conversion Kit (Natural Gas To L.P. Gas) |
