SF387PCYW0 03 – COOKTOP

SF387PCYW0 03 – COOKTOP

Written by

in

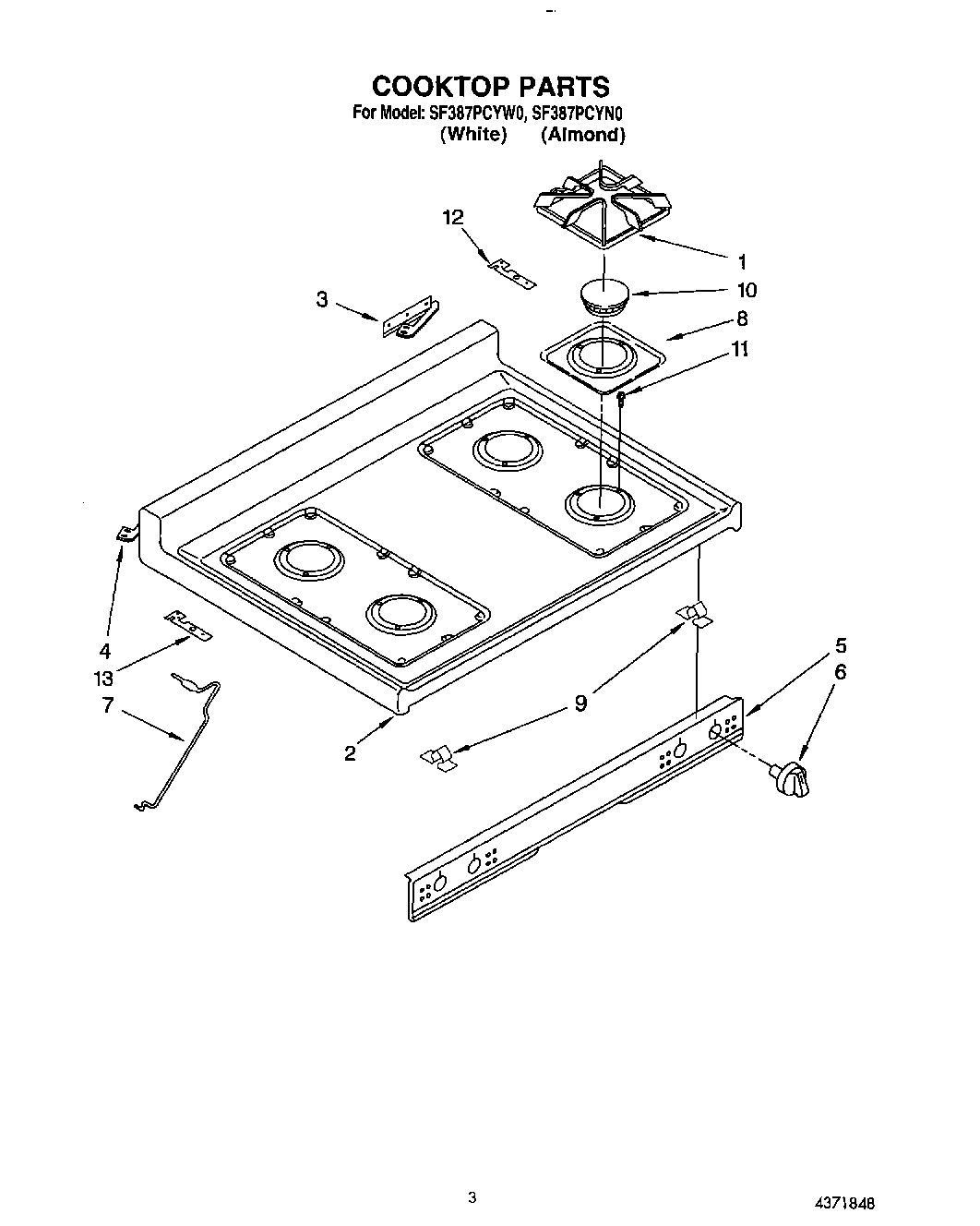

SF387PCYW0 03 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
