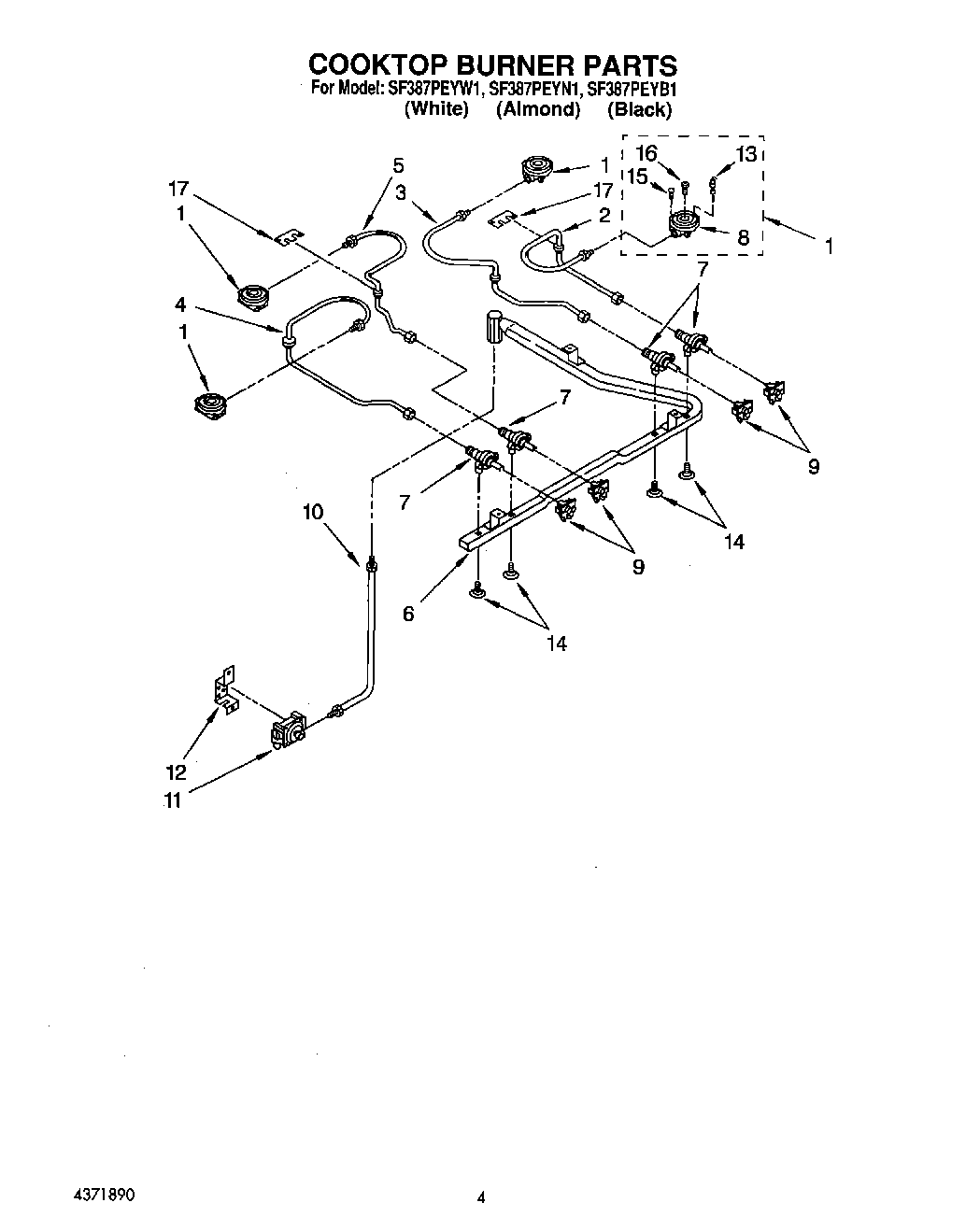

SF387PEYB1 03 – COOKTOP BURNER

SF387PEYB1 03 – COOKTOP BURNER

Written by

in

SF387PEYB1 03 – COOKTOP BURNER

Products

PositionProduct
1Burner, (4)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top (4)
8Head, Burner
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Bracket & Electrode
14WP3186217 Whirlpool Screw
15Screw, Electrode
16Orifice
17Plate, Burner
17Conversion Kit (Natural Gas To L.P. Gas)
