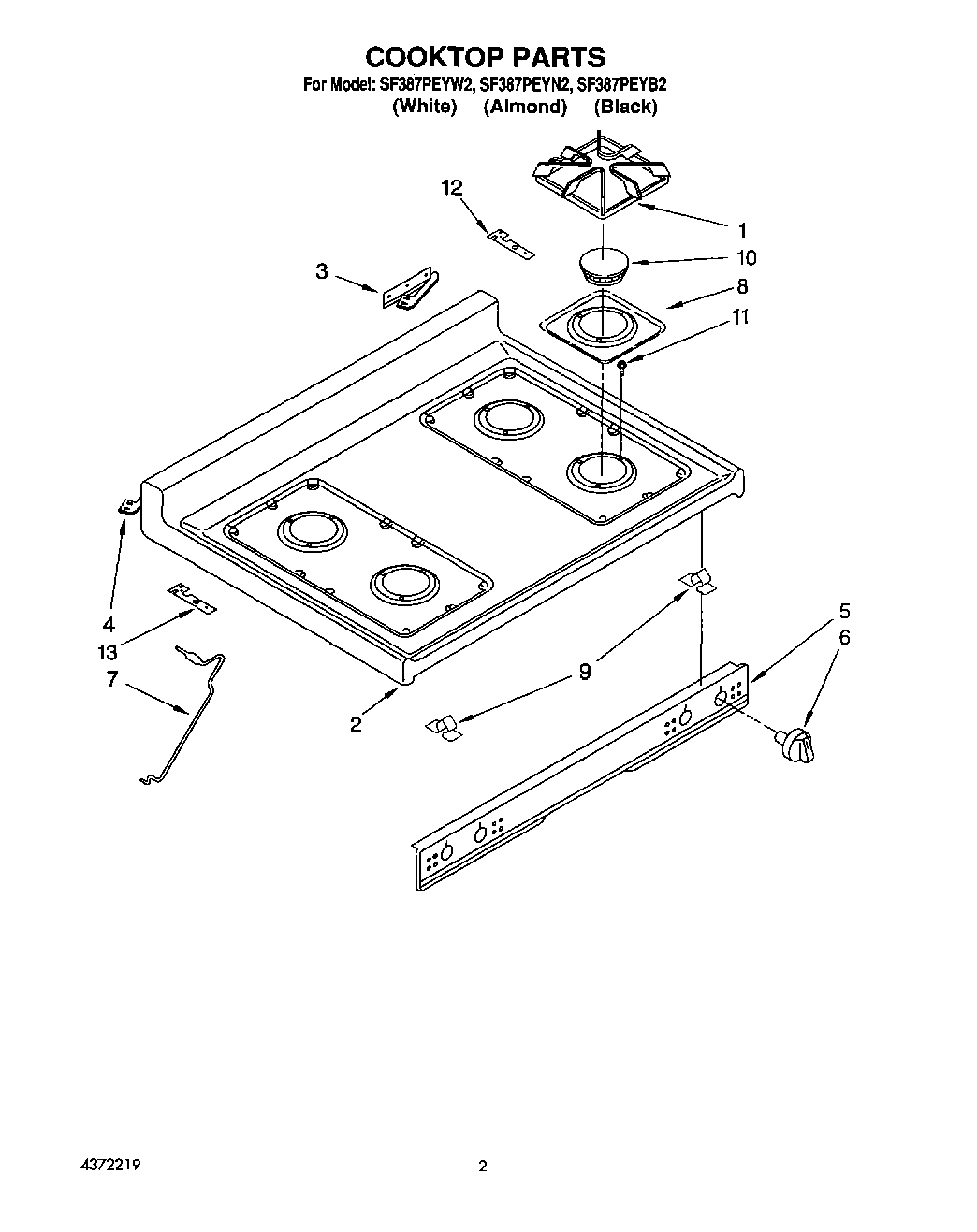

SF387PEYB2 02 – COOKTOP

SF387PEYB2 02 – COOKTOP

Written by

in

SF387PEYB2 02 – COOKTOP

Products

PositionProduct
1Grate (4)
2Top, Main (Black)
2Top, Main (Almond)
2Top, Main (White)
3Bracket, Hinge (Right Side)
4Bracket, Hinge (Left Side)
5Panel, Manifold
6Knob, Control (4)
7Rod, Support Top
8Pan, Burner (4)
9Clip, Top Mtg.
10Cap, Burner (4)
11Screw, Burner Mtg.
12Bracket, Mounting (R.H.)
13Bracket, Mounting (L.H.)
