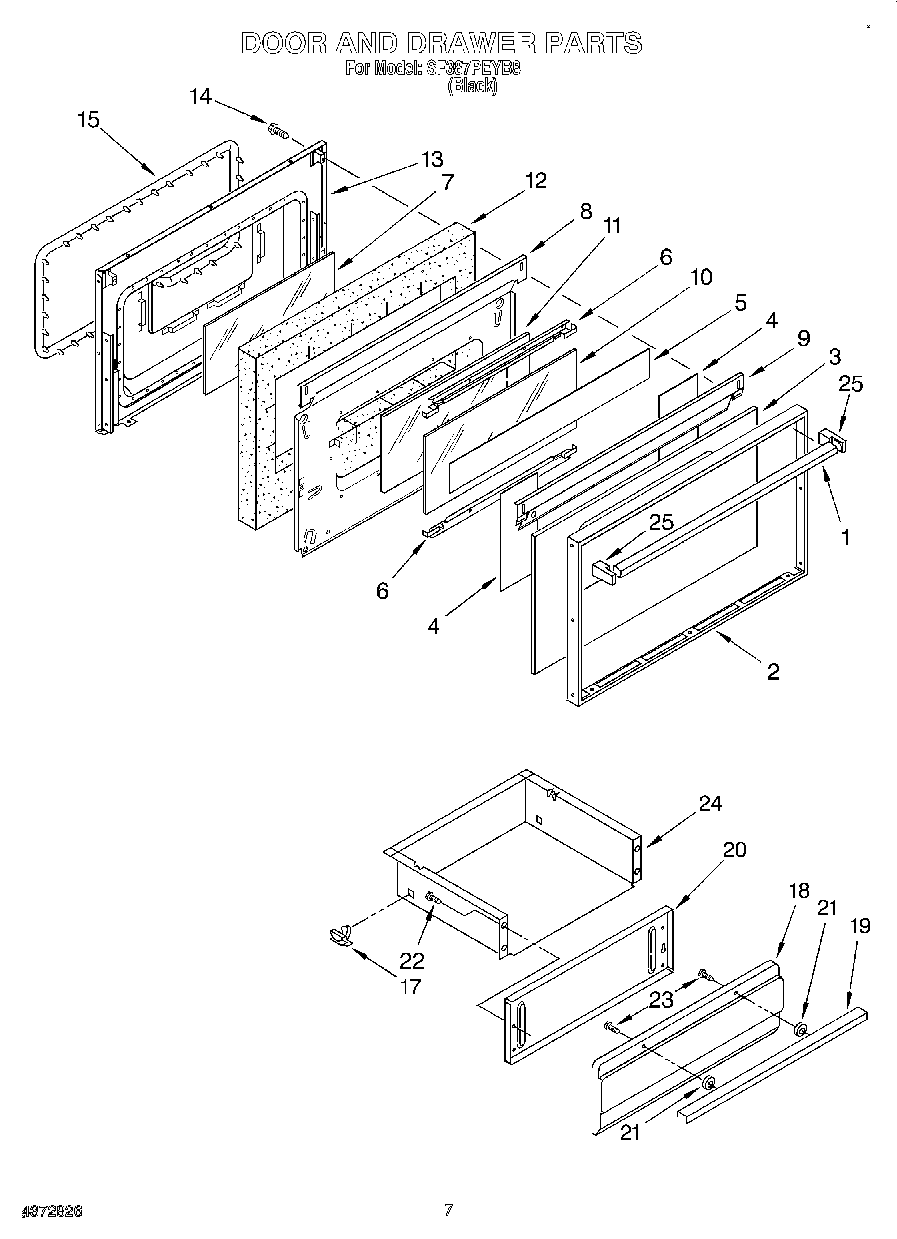

SF387PEYB8 06 – DOOR & DRAWER

Products

PositionProduct
1Handle, Door
2Trim, Oven Door
3Glass, Door
4Foil, Alum. (2)
5Foil, Alum.
6Bracket, Glass
7Glass, Inner
8Shield, Heat
9Sheild, Door Top
10Glass, Heat Barrier (2)
11Glass, Inner
12Insulation, Door
13Liner, Oven Door
14Screw, Handle (2)
15Seal, Oven Door
17Guide, Drawer
18Panel, Drawer
19Handle, Utility Drawer
20Shield, Panel
21Spacer, Handle
22Screw, Panel (4)
23Screw, Handle (2)
24Drawer, Utility
25Endcap (2)
