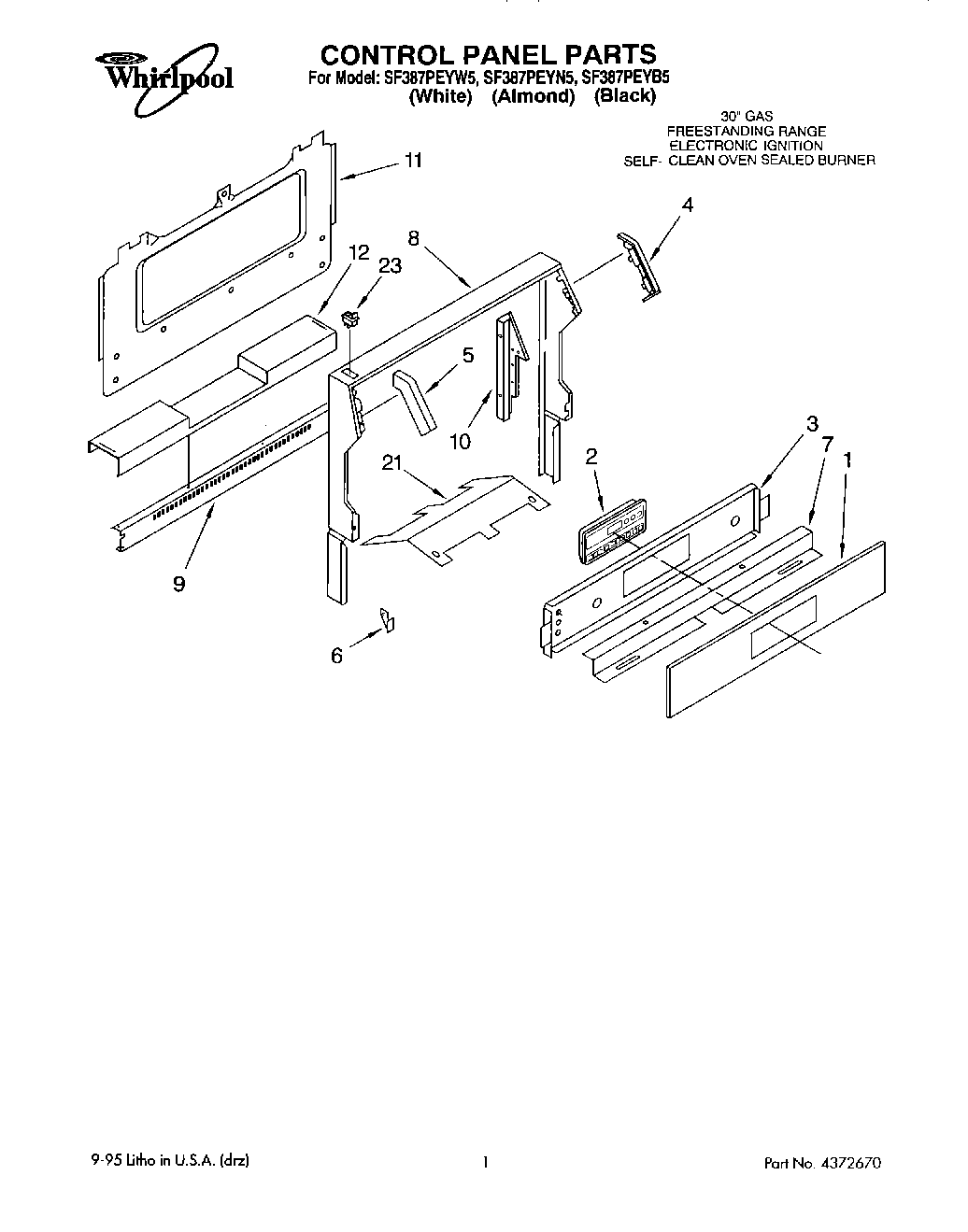

SF387PEYN5 01 – CONTROL PANEL

Products

PositionProduct
1Panel, Control
2Control, Electronic Timer
3Bracket, Timer
4Cap, End (R.H.)
5Cap, End (L.H.)
6Cap, Filler
7Retainer, Timer
8Trim, Wrapper
9Trim, Vent
10Support, Backguard (R.H.)
10Support, Backguard (L.H.)
11Shield, Rear Wall
12Deflector, Flue
21Shield, Inner Bkgd
23Switch, Rocker
