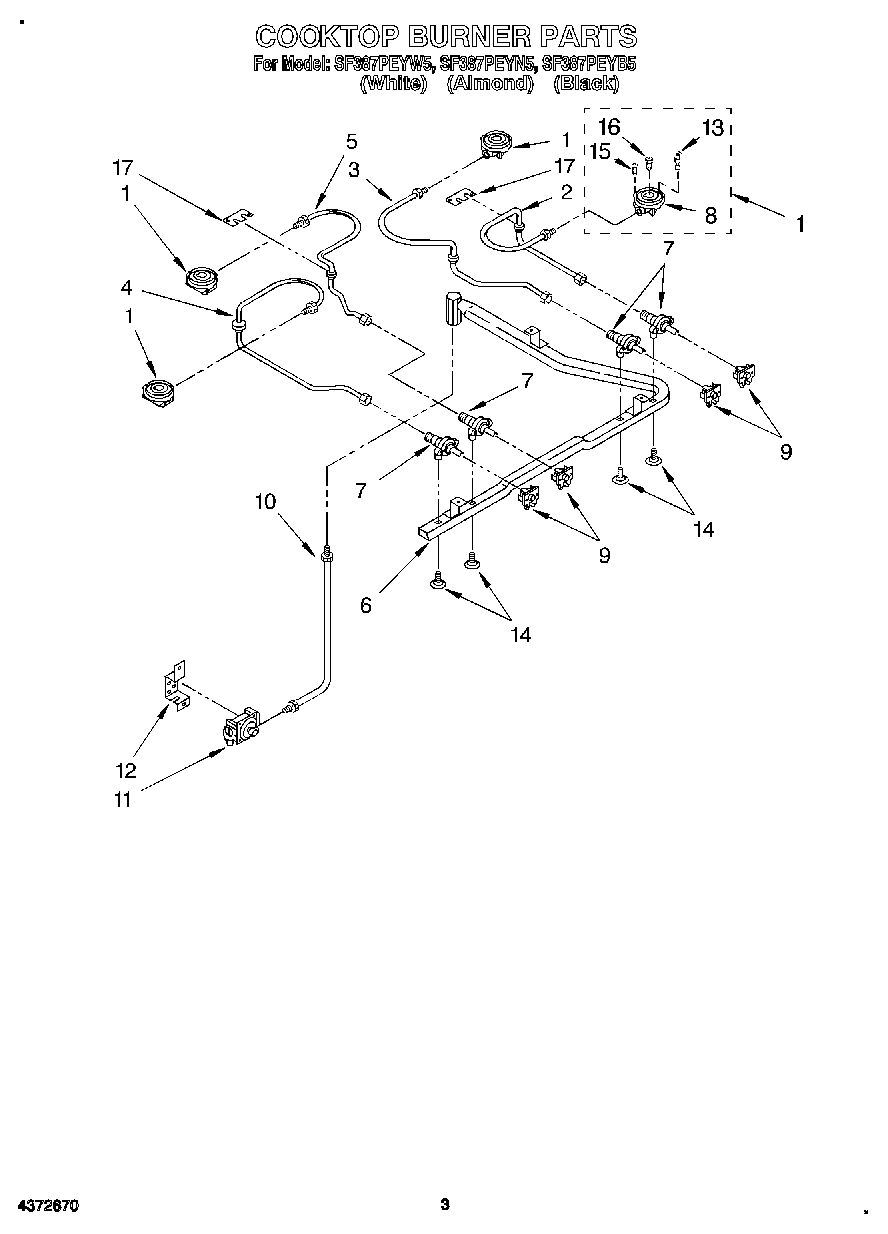

SF387PEYN5 03 – COOKTOP BURNER

Products

PositionProduct
1Burner, (4)
2Tubing, Burner (RF)
3Tubing, Burner (RR)
4Tubing, Burner (LF)
5Tubing, Burner (LR)
6Pipe, Manifold
7Valve, Top Burner
8Head, Burner
9Switch, Ignitor (4)
10Tubing, Regulator To Manifold Pipe
11Control, Regulator
12Bracket, Regulator
13Bracket & Electrode
14Screw, Valve Mtg.
15Screw, Electrode
16Orifice
17Plate, Burner
17Conversion Kit (Natural Gas To L.P. Gas)
