SF387PEYN7 06 – DOOR AND DRAWER

SF387PEYN7 06 – DOOR AND DRAWER

Written by

in

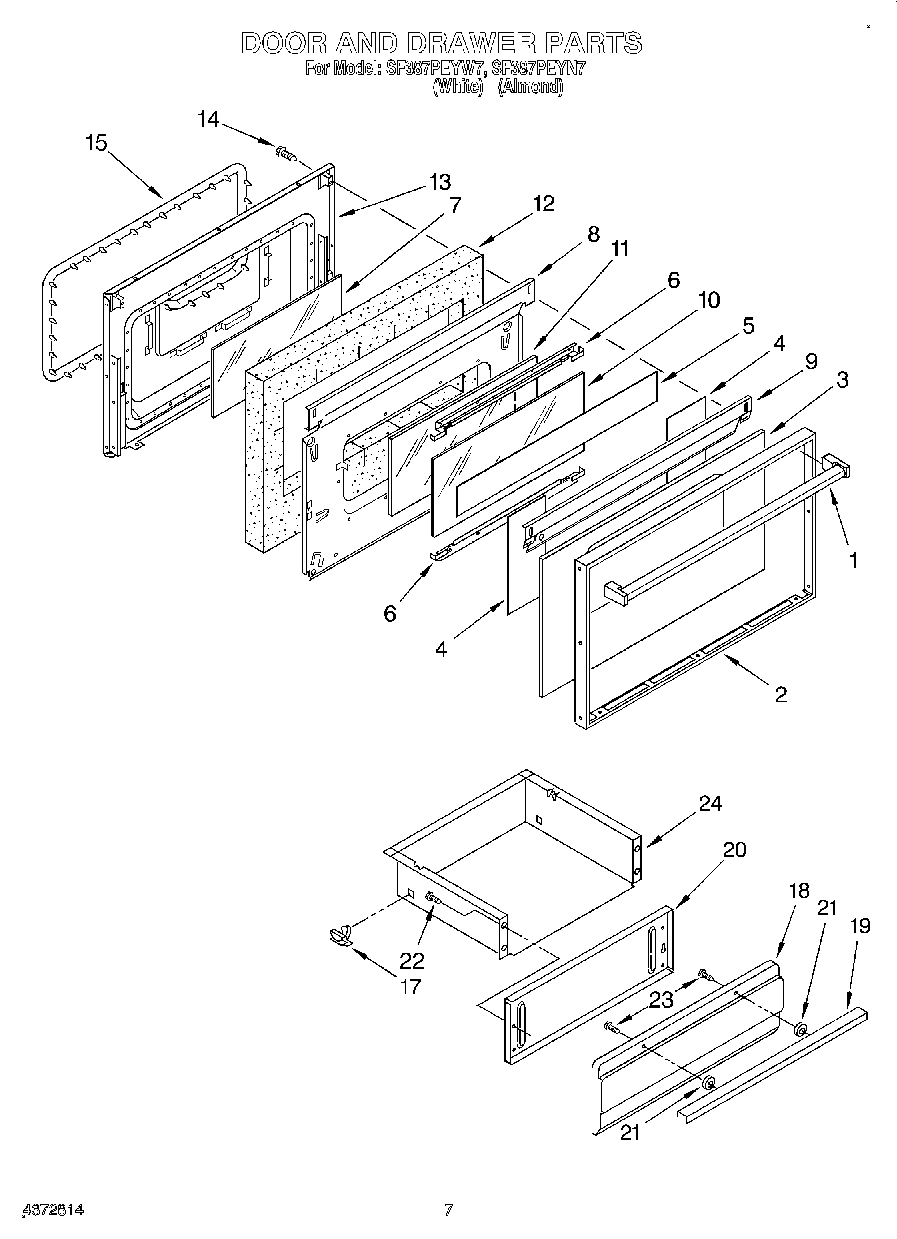

SF387PEYN7 06 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door
2	Trim, Door
3	Glass, Door
4	Foil, Alum. (2)
5	Foil, Alum.
6	Bracket, Glass
7	Glass, Inner
8	Shield, Heat
9	Sheild, Door Top
10	Glass, Heat Barrier (2)
11	Glass, Inner
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
17	Guide, Drawer
18	Panel, Drawer
19	Handle, Utility Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	Screw, Handle (2)
24	Drawer, Utility
