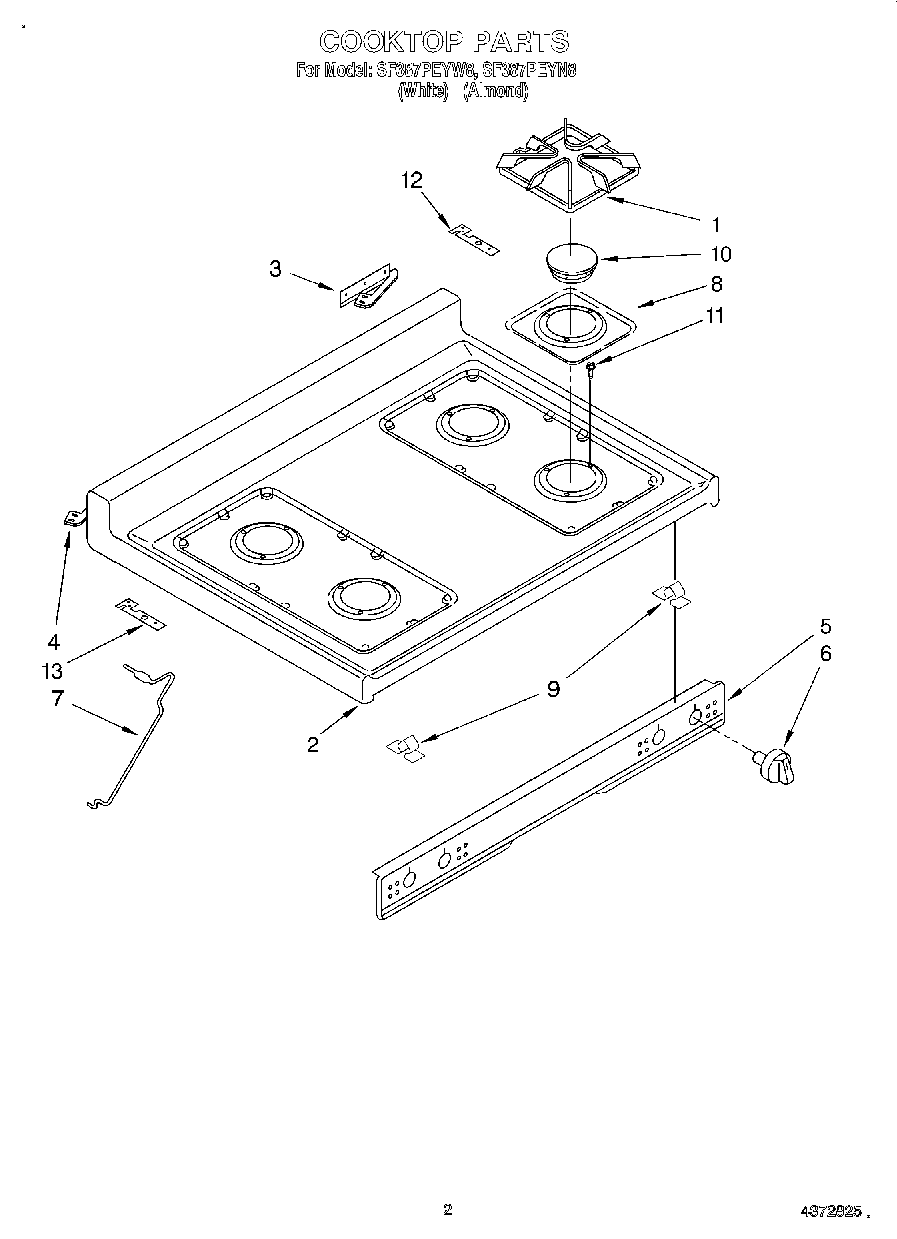

| 1 | Grate (4) |
| 2 | Top, Main (Almond) |
| 2 | Top, Main (White) |
| 3 | Bracket, Hinge (Right Side) |
| 4 | Bracket, Hinge (Left Side) |
| 5 | Panel, Manifold |
| 6 | Knob, Control (4) |
| 7 | Rod, Support Top |
| 8 | Pan, Burner (4) |
| 9 | Clip, Top Mtg. |
| 10 | Cap, Burner (4) |
| 11 | Screw, Burner Mtg. |
| 12 | Bracket, Mounting (R.H.) |
| 13 | Bracket, Mounting (L.H.) |
