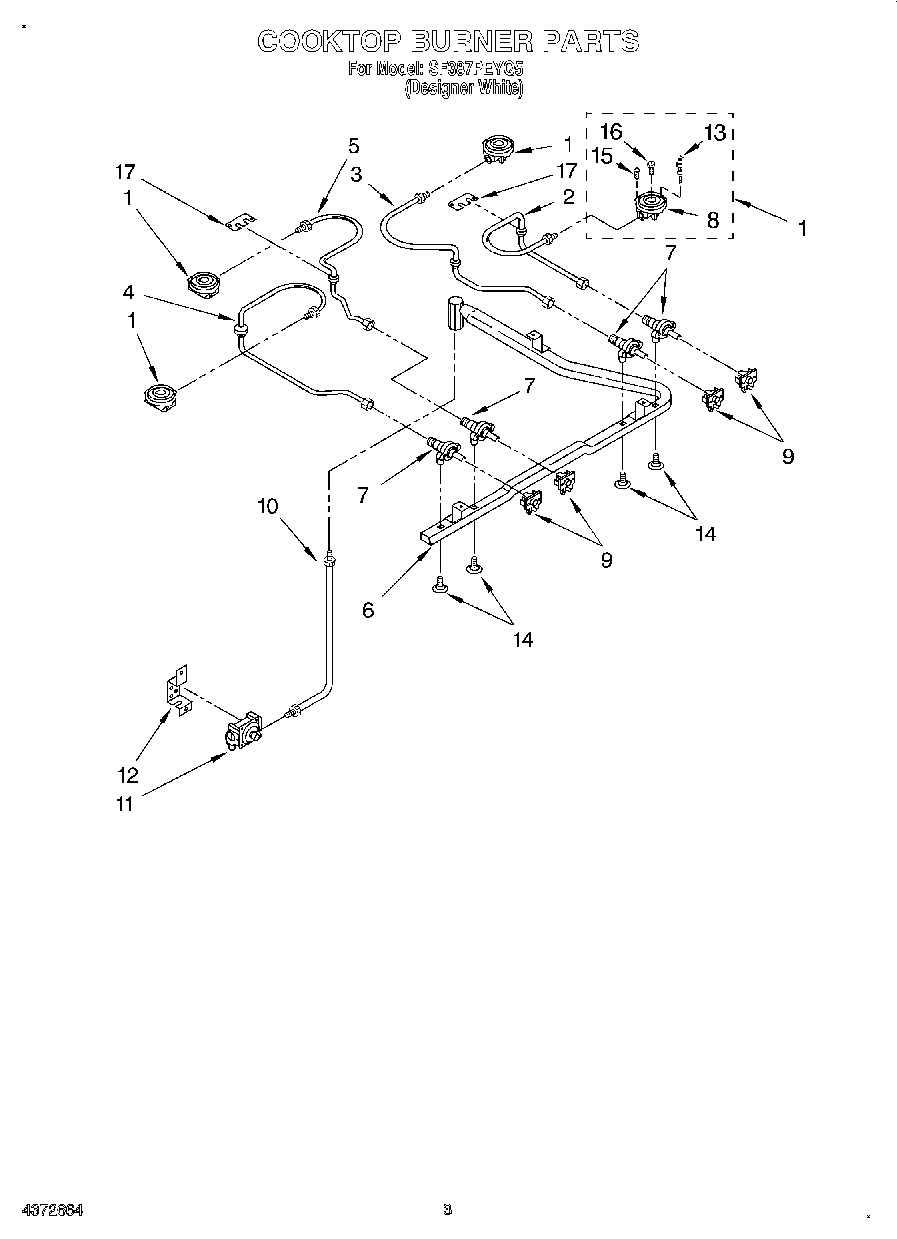

SF387PEYQ5 03 – COOKTOP BURNER

Products

Position	Product
1	Burner, (4)
2	Tubing, Burner (RF)
3	Tubing, Burner (RR)
4	Tubing, Burner (LF)
5	Tubing, Burner (LR)
6	Pipe, Manifold
7	Valve, Top Burner
8	Head, Burner
9	Switch, Ignitor (4)
10	Tubing, Regulator To Manifold Pipe
11	Control, Regulator
12	Bracket, Regulator
13	Bracket & Electrode
14	WP3186217 Whirlpool Screw
15	Screw, Electrode
16	Orifice
17	Plate, Burner
17	Conversion Kit (Natural Gas To L.P. Gas)
