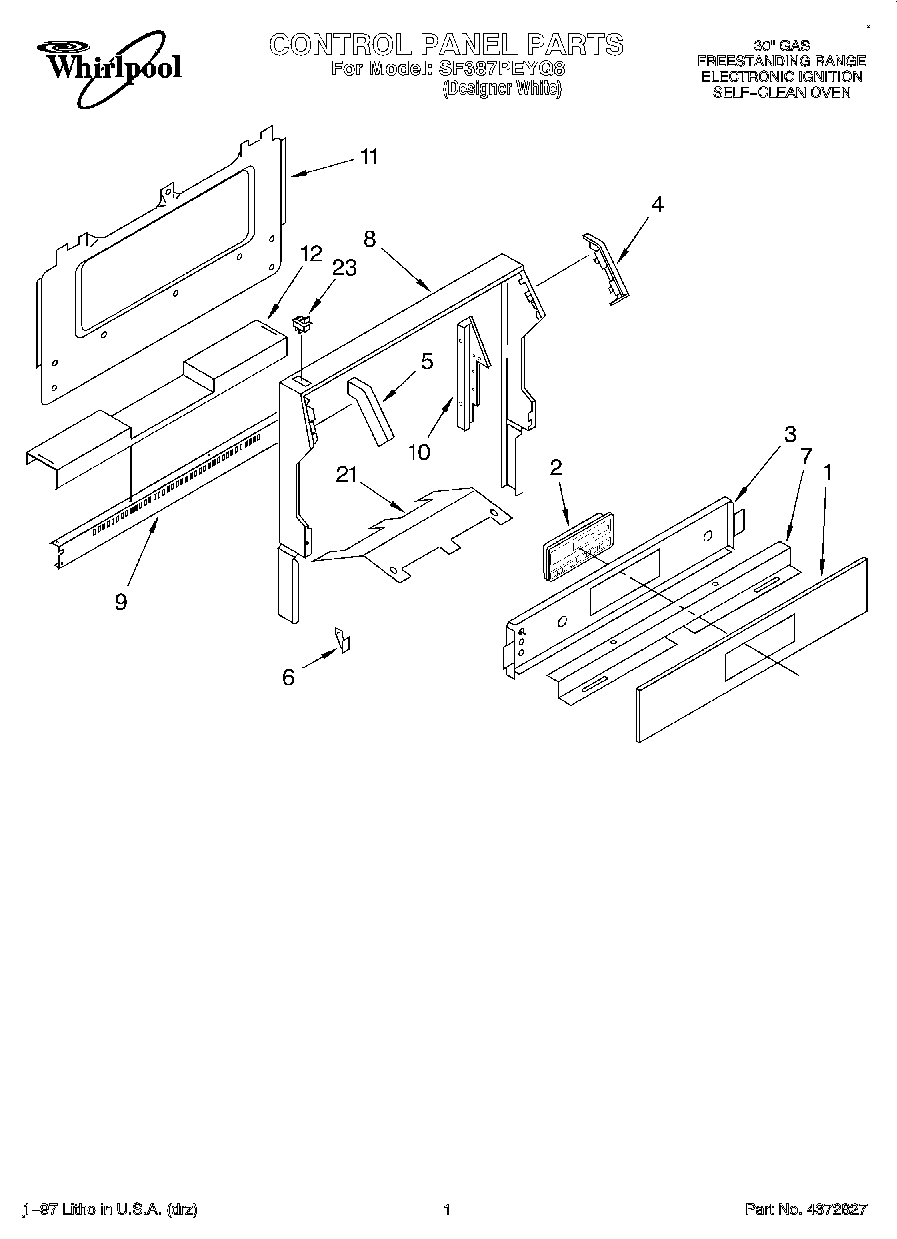

SF387PEYQ8 01 – CONTROL PANELadmin2025-04-26T13:08:51+00:00SF387PEYQ8 01 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | Control, Electronic Timer |
| 3 | Bracket, Timer |
| 4 | Cap, End (R.H.) |
| 5 | Cap, End (L.H.) |
| 6 | Cap, Filler |
| 7 | Retainer, Timer |
| 8 | Trim, Wrapper |
| 9 | Trim, Vent |
| 10 | Support, Backguard (R.H.) |
| 10 | Support, Backguard (L.H.) |
| 11 | Shield, Rear Wall |
| 12 | Deflector, Flue |
| 21 | Shield, Inner Bkgd |
| 23 | Switch, Rocker |
